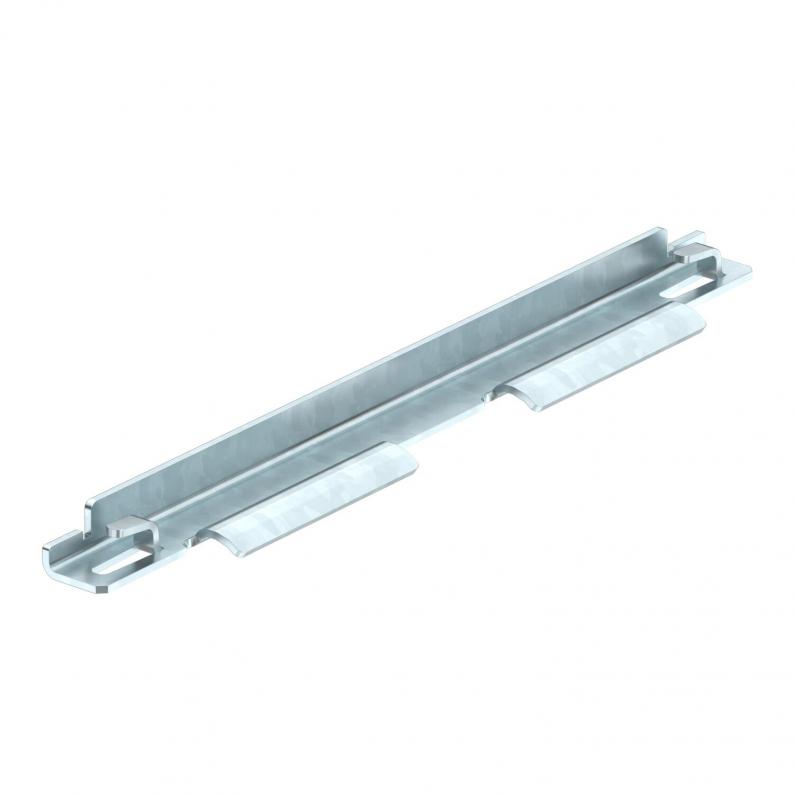

Mesh cable tray connector, long FS
Type GRV 245 FS
|Item no. 6016680
|EAN 4012196052578
Item no. / Type
6016680 / GRV 245 FS
Width
30 mm
Height
14 mm
Plate thickness
2 mm
Boyut
L245mm
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 20 piece
20piece
piece
Description
Long mesh cable tray connectors for screwless straight connection of mesh cable trays.
Two straight connectors, type GRV 245, are used for each connection point.
Can be used from a mesh cable tray width of 100 mm.
The FS variant is used to connect electrogalvanised mesh cable trays, the DD variant to connect hot/hot-dip galvanised mesh cable trays and the VA variant to connect stainless steel mesh cable trays.
Technical data

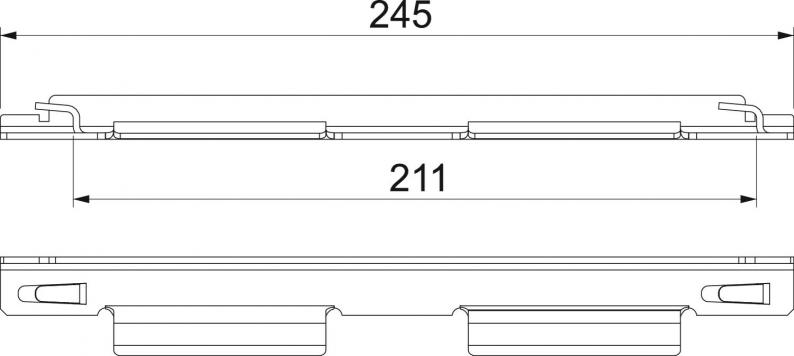

Dimensions
| Length | 245 mm |
|---|---|
| Width | 30 mm |
| Height | 14 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 2 mm |
| Kafes kablo kanalı için uygun | yes |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Ölçü | 245 x 30 |
| Version for | Straight connector |
| Connection type | Screwless connector |
| Boyut | L245mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,4117 kg CO2e / 1 Piece |
|---|
