Mesh cable tray GR-Magic® 55 FT
Type GRM 55 50 FT
|Item no. 6001415
|EAN 4012195430940
Item no. / Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Tel çapı
Smallest selling unit: 3 m
3m
m
Description

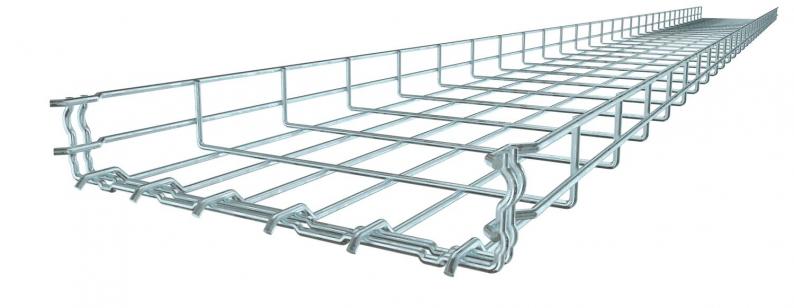

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
You can find detailed information regarding the UL classification in the respective certification.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
You can find detailed information regarding the UL classification in the respective certification.
No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm).
Technical data

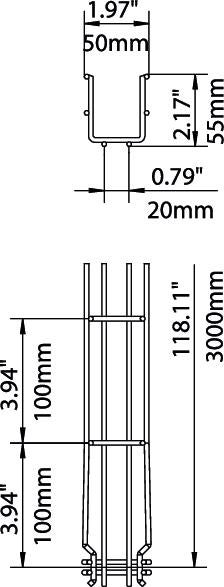

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 55 mm |
| Dimension B | 52 mm |
| Dimension H | 58 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 16 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 1600 mm² |
| Integrated partition | Without |
| Screwless connector | yes |
| Profile shape | U-shaped |
| Tel çapı | 3,9 mm |
| Boyut | 55x50x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Fire protection | Maintenance of electrical function of cable-specific support structure |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
Loads
| Destek aralığı 1,0m | 0,35 kN/m |
|---|---|
| Destek aralığı 1,5m | 0,2 kN/m |
| Destek aralığı 2,0m | 0,1 kN/m |
| Destek aralığı 2,5m | 0,1 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 1,4752 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (10)
Declarations (4)
Certificates (6)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)
