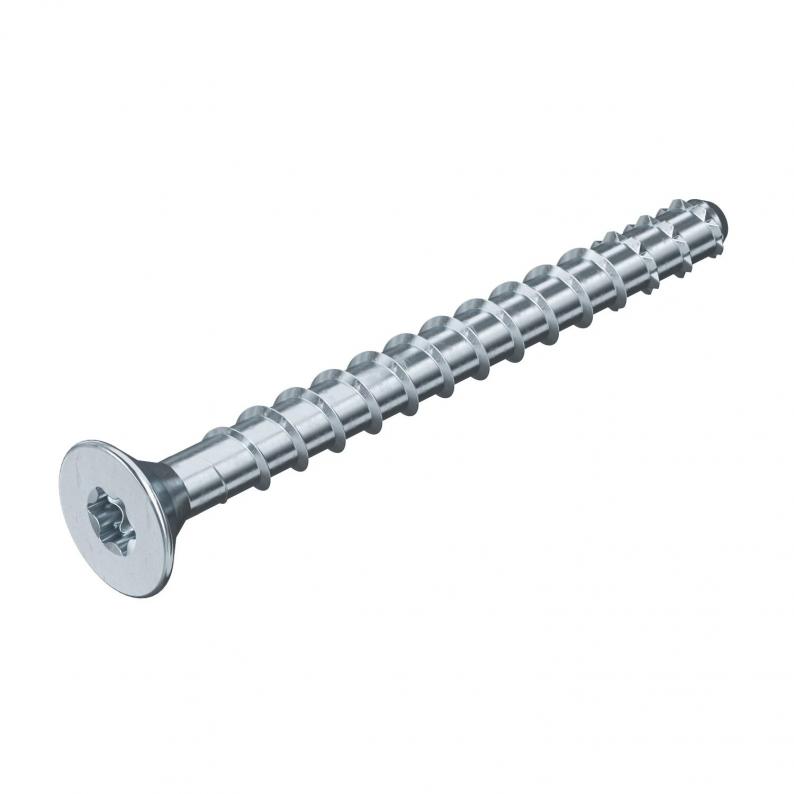

MMS-plus F 7.5x80 countersunk head tie
Type MMS+ F 7.5x80
|Item no. 3498160
|EAN 4012196842681
Item no. / Type
3498160 / MMS+ F 7.5x80
Length
80 mm
Ölçü
7,5x80
Screw system
Torx
Delik çapı min.
6 mm
Dübel uzunluğu
80 mm
Head diameter
15,5 mm
Smallest selling unit: 50 piece
50piece
piece
Description
Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With countersunk head for universal fastenings. Torx drive T40.
Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.

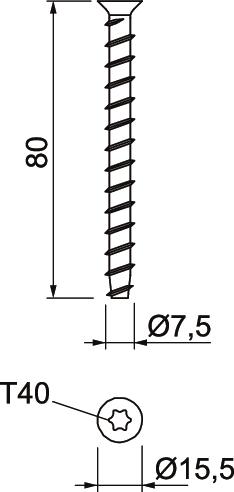

Technical data
Dimensions
| Length | 80 mm |
|---|---|
| Dimension L | 80 mm |
Technical data
| Anchor/nail/bolt version | Spiral anchor |
|---|---|
| Ölçü | 7,5x80 |
| Thread diameter ST | 7,5 |
| Head shape | Countersunk head |
| Screw system | Torx |
| Delik çapı min. | 6 mm |
| Dübel uzunluğu | 80 mm |
| Head diameter | 15,5 mm |
| Boyut | 7,5x80 |
| Surface | galvanised |
| Material | Steel |
| Colour | Çinko grisi |
