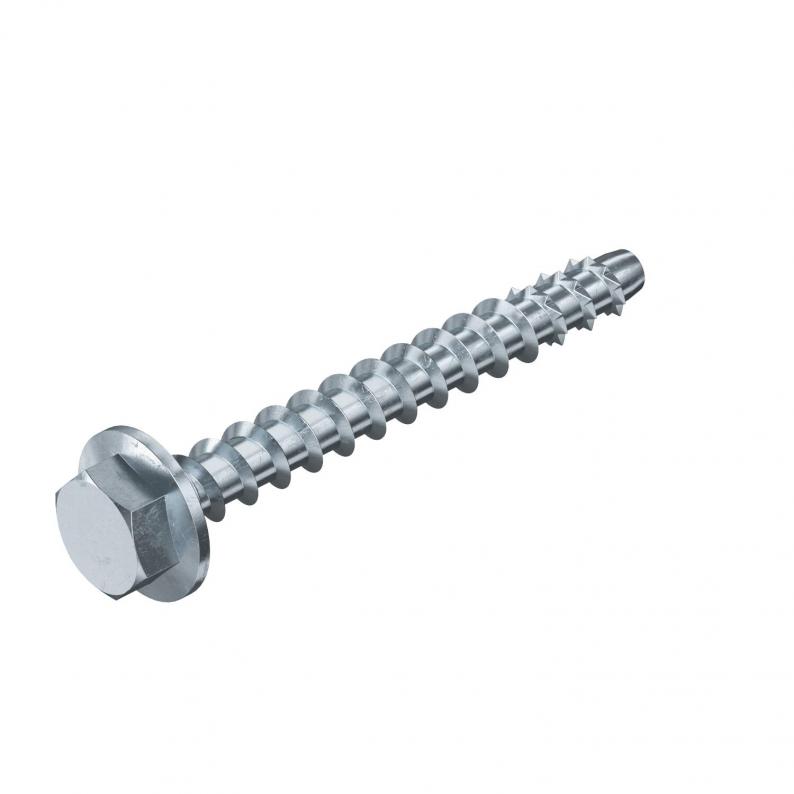

MMS-plus SS 12x100 hexagonal tie, with pressed washer

MMS-plus SS 12x100 hexagonal tie, with pressed washer

Type MMS+ SS 12x100
|
Item no. 3498170
|
EAN 4012196842575
Show all variants
Item no. / Type
Length
Ölçü
Delik çapı min.
Dübel uzunluğu
Head diameter

Smallest selling unit: 25 piece

piece

Description

Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With hex head drive and pressed washer to accept large loads. Suitable for fastening suspended loads from suspended supports and wall brackets in wet rooms and in outdoor areas.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Yangından korunmalı ankraj vidası

Technical data

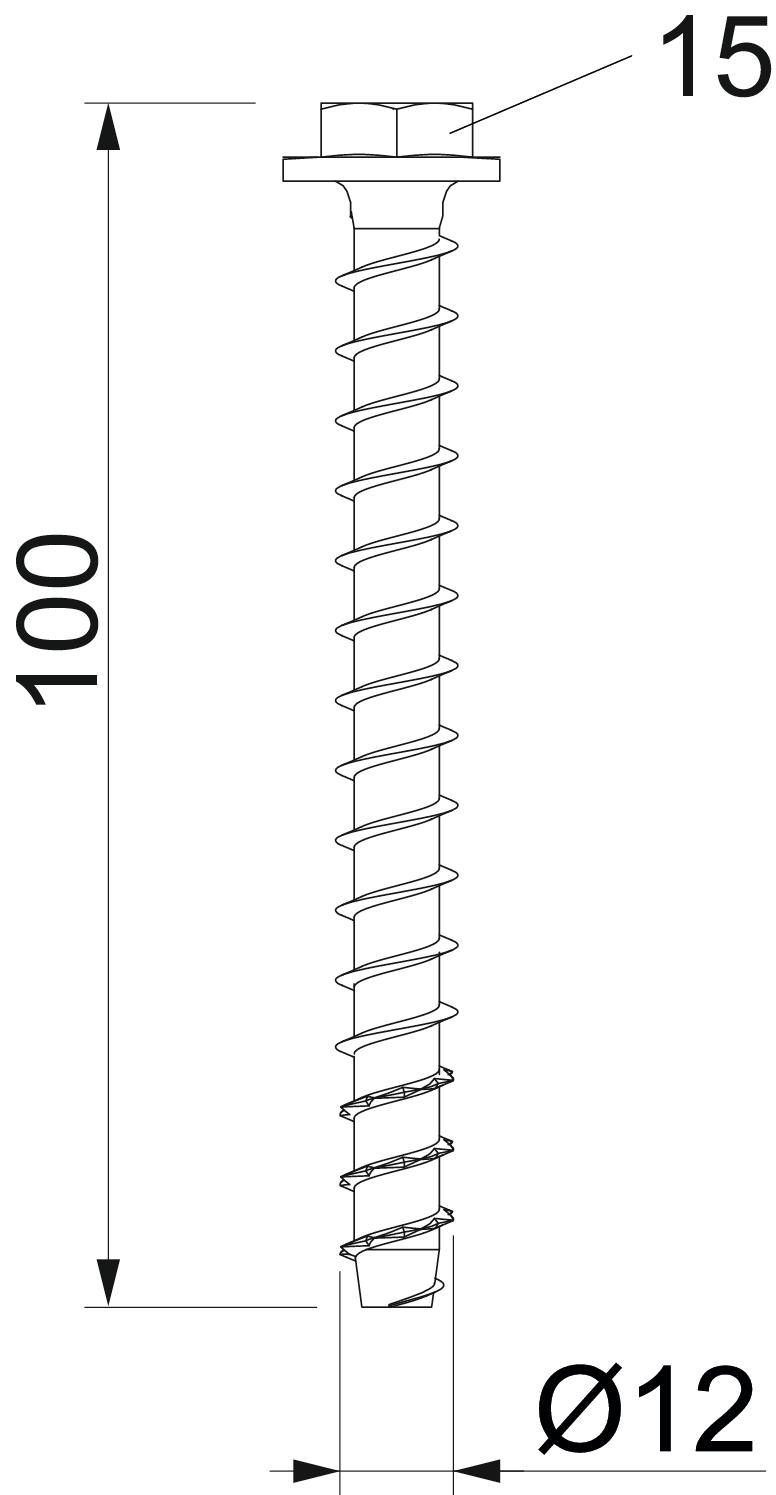

Dimensions

Length100 mm
Dimension L100 mm

Technical data

Vida dişi12
Hardenedevet
Anchor/nail/bolt versionSpiral anchor
Ölçü12x100
Clamping strength25 mm
WAF15
Thread diameter ST12
Head shapeHexagonal
Screw systemHexagonal
Delik çapı min.10 mm
Delik derinliği85 mm
Dübel uzunluğu100 mm
Head diameter22 mm
Boyut12x100
Surfacegalvanised
MaterialSteel
ColourÇinko grisi
ETA earthquake ratingC1
Fire resistance class EN 13501-1R30, R60, R90, R120

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

Length
Ölçü
Dübel uzunluğu
MMS+ SS 12x100
Item no.
3498170
Length
100
Ölçü
12x100
WAF
15
Screw system
Hexagonal
Delik çapı min.
10
Dübel uzunluğu
100
Head diameter
22
MMS+ SS 12x120
Item no.
3498172
Length
120
Ölçü
12x120
WAF
15
Screw system
Hexagonal
Delik çapı min.
10
Dübel uzunluğu
120
Head diameter
22
