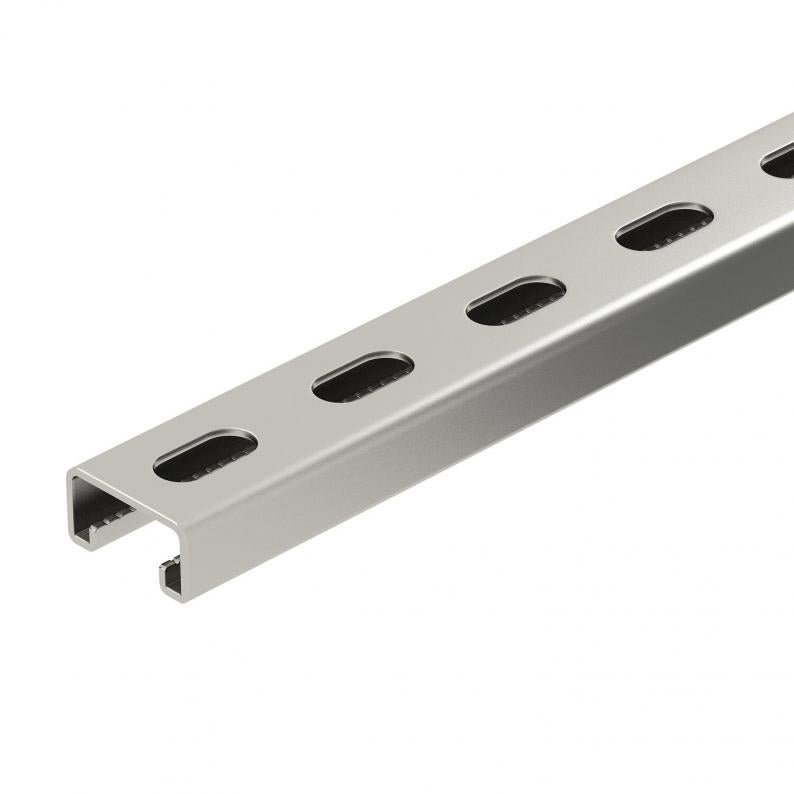

MS4121 mounting rail, slot 22 mm, A4, perforated

MS4121 mounting rail, slot 22 mm, A4, perforated

Type MS4121P6000A4
|
Item no. 1122932
|
EAN 4012195697619
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 6 m

m

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • CO₂ footprint (PCF)

Technical data

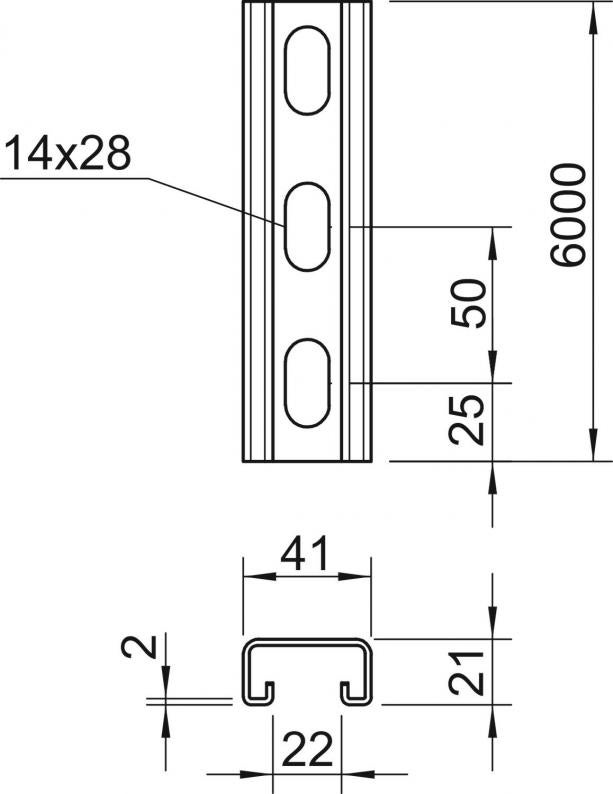

Dimensions

Length6000 mm
Width41 mm
Height21 mm
Dimension L6000 mm

Technical data

Maintain electrical functionsyes
Slot width22 mm
Material thickness2 mm
Static value A1,65 cm²
Static value ly0,95 cm⁴
Static value lz4,51 cm⁴
Static value Wy0,89 cm³
Static value Wz2,2 cm³
Hole size14x28
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre50 mm
With perforationyes
Breakableno
With toothingyes
Version forSingle profile
Dimension6000x41x21
SurfaceBright, treated
MaterialStainless steel 1.4571

Environmental Data

7,2882 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate7,2882 kg CO2e / 1 Meter

Accessories

System accessories

Item no. 1147234

Slide nut A4
Type
MS41SN M10 A4

Smallest selling unit: 50 piece

piece

Item no. 1148422

Hammer-head bolt A4
Type
MS41HB M10x30 A4

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Length
MS4121P2000A4
Item no.
1122476
Length
2000
Width
41
Height
21
Material thickness
2
Surface
Bright, treated
MS4121P3000A4
Item no.
1122931
Length
3000
Width
41
Height
21
Material thickness
2
Surface
Bright, treated
MS4121P6000A4
Item no.
1122932
Length
6000
Width
41
Height
21
Material thickness
2
Surface
Bright, treated
