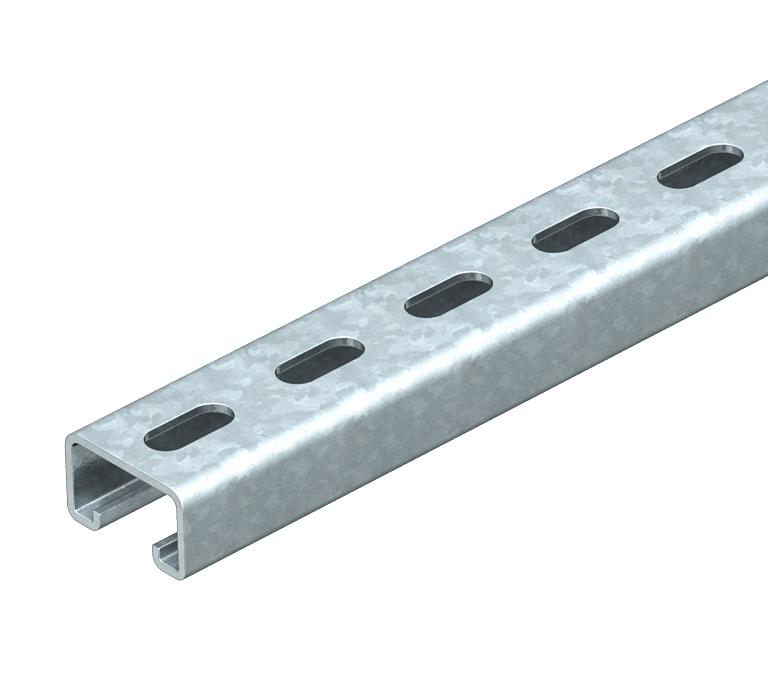

MS5030 mounting rail, slot 22 mm, FT, perforated

MS5030 mounting rail, slot 22 mm, FT, perforated

Type MS5030P1000FT
|
Item no. 1121448
|
EAN 4012195886211
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 1 m

m

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Yarık uzunluğu 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Fonksiyon koruma sınıfı E30
  • Fonksiyon koruma sınıfı E90
  • CO₂ footprint (PCF)

Technical data

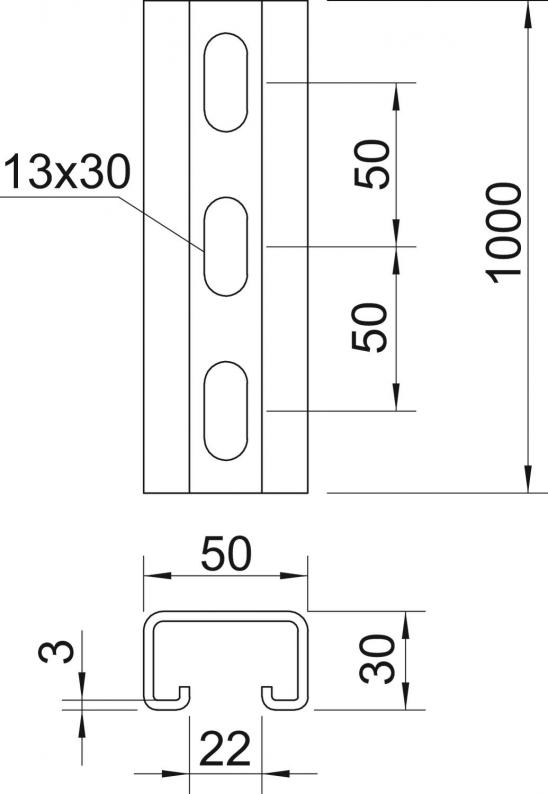

Dimensions

Length1000 mm
Width50 mm
Height30 mm
Dimension L1000 mm

Technical data

Maintain electrical functionsevet
Yarık uzunluğu22 mm
Material thickness3 mm
Statik değer A3,39 cm²
Statik değer Iy3,99 cm⁴
Statik değer Iz13,11 cm⁴
Statik değer Wy3,95 cm³
Statik değer Wz6,38 cm³
Profile shapeC profil
Delik türüSırtı delikli
Drill hole spacing, centre50 mm
With perforationevet
Breakablehayır
With toothinghayır
Version forTekli profil
Boyut1000x50x30
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya6,191 kg CO2e / 1 Metre

Accessories

System accessories

Item no. 1147164

Slide nut ZL
Type
MS50SN M10 ZL

Smallest selling unit: 50 piece

piece

Item no. 1148218

Hook-head screw ZL
Type
MS50HB M10x30 ZL

Smallest selling unit: 50 piece

piece

Type
2056U 22 FT

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Length
MS5030P1000FT
Item no.
1121448
Length
1000
Width
50
Height
30
Material thickness
3
Surface
Hot-dip galvanised
MS5030P2000FT
Item no.
1121464
Length
2000
Width
50
Height
30
Material thickness
3
Surface
Hot-dip galvanised
MS5030P3000FT
Item no.
1121466
Length
3000
Width
50
Height
30
Material thickness
3
Surface
Hot-dip galvanised
MS5030P6000FT
Item no.
1121472
Length
6000
Width
50
Height
30
Material thickness
3
Surface
Hot-dip galvanised
