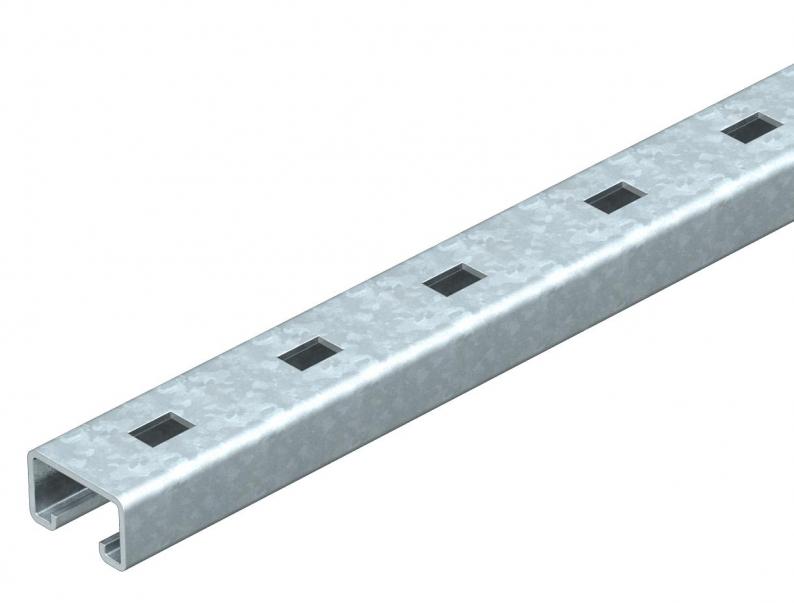

MS5030 mounting rail, slot 22 mm, FT, perforated

MS5030 mounting rail, slot 22 mm, FT, perforated

Type MS5030RP0220FT
|
Item no. 6349404
|
EAN 4012196191710
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 1 piece

piece

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

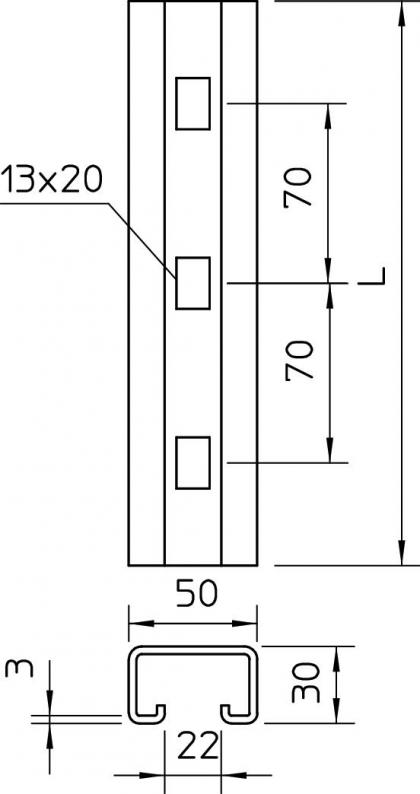

Dimensions

Length220 mm
Width50 mm
Height30 mm
Dimension L220 mm

Technical data

Slot width22 mm
Material thickness3 mm
Static value A3,39 cm²
Static value ly3,99 cm⁴
Static value lz13,11 cm⁴
Static value Wy3,95 cm³
Static value Wz6,38 cm³
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre70 mm
With perforationyes
Breakableno
With toothingno
Version forSingle profile
Dimension220x50x30
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

1,5292 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,5292 kg CO2e / 1 Piece

Accessories

System accessories

Item no. 1147164

Slide nut ZL
Type
MS50SN M10 ZL

Smallest selling unit: 50 piece

piece

Item no. 1148218

Hook-head screw ZL
Type
MS50HB M10x30 ZL

Smallest selling unit: 50 piece

piece

Type
2056U 22 FT

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Length
MS5030RP0220FT
Item no.
6349404
Length
220
Width
50
Height
30
Material thickness
3
Surface
Hot-dip galvanised
MS5030RP0260FT
Item no.
6349412
Length
260
Width
50
Height
30
Material thickness
3
Surface
Hot-dip galvanised
MS5030RP0300FT
Item no.
6349439
Length
300
Width
50
Height
30
Material thickness
3
Surface
Hot-dip galvanised
MS5030RP0340FT
Item no.
6349447
Length
340
Width
50
Height
30
Material thickness
3
Surface
Hot-dip galvanised
MS5030RP0380FT
Item no.
6349463
Length
380
Width
50
Height
30
Material thickness
3
Surface
Hot-dip galvanised
