Partition for WDK trunking, trunking height 80 mm

Partition for WDK trunking, trunking height 80 mm

Type 2371 80
|
Item no. 6026982
|
EAN 4012196030675
Show all variants
Item no. / Type
6026982 / 2371 80
Length
2000 mm

Smallest selling unit: 2 m

m

Description

Partition to divide the WDK trunking, with 80 mm trunking height for the installation of different voltage levels.


The partitions are pinned on the connectors in the base.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

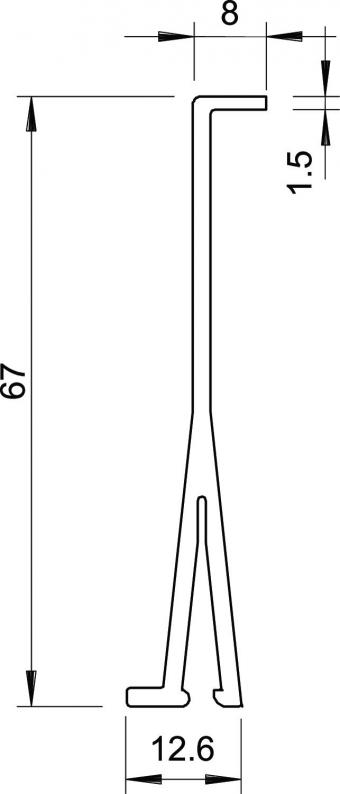

Dimensions

Length2000 mm
Width12,6 mm
Height67 mm

Technical data

Halogen-freeno
Self-extinguishingyes
Protection ratingIP30
Protection rating IK codeIK04
Version forSingle
Fastening typePlug-in
Trunking depth80 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension80x2000mm
MaterialPolyvinylchloride
ColourLight grey; RAL 7035
Antibacterial treatmentno

Environmental Data

0,5987 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,5987 kg CO2e / 1 Meter
