Protective panel 108 FS
Type SB BKS FS
|Item no. 6049252
|EAN 4012196147816
Item no. / Type
6049252 / SB BKS FS
Length
3000 mm
Width
6,5 mm
Height
108 mm
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
m
Description

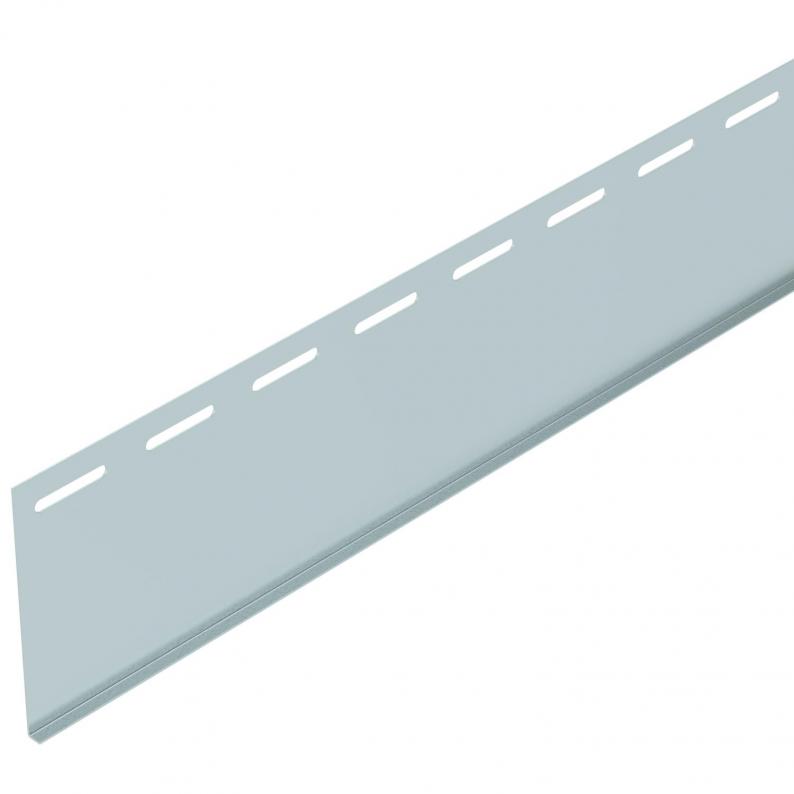

Protective panel, to be attached at the side as a collision guard for the walkable BKRS cable tray system. The side height is 108 mm.
Technical data

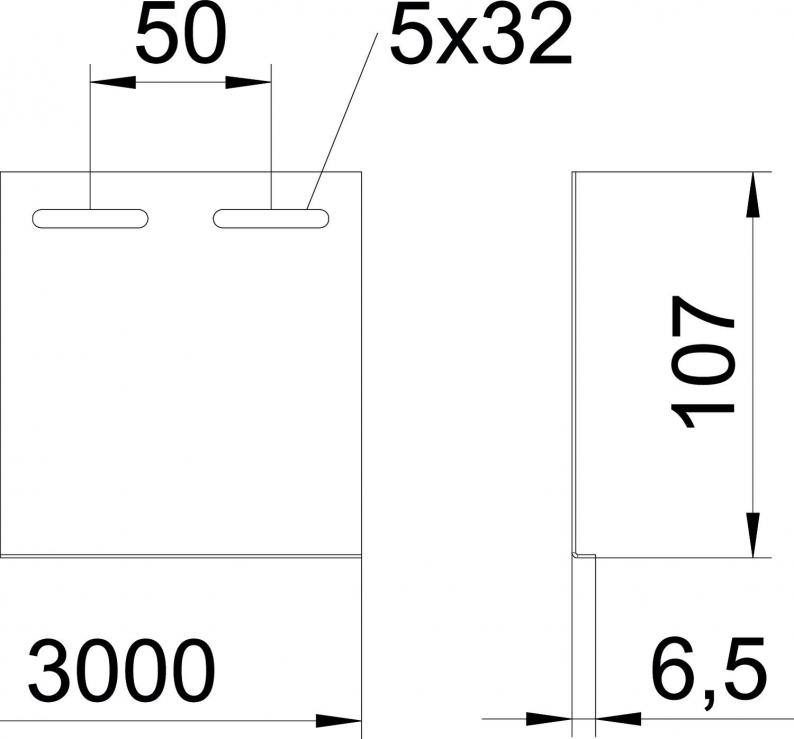

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 6,5 mm |
| Height | 108 mm |
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Kalınlık | 1 mm |
| Boyut | 100x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 2,2085 kg CO2e / 1 Meter |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
Downloads
0 selected
Data sheet (1)
Declarations (3)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Height
Surface
Material
Item no.
SB BKS FS
3000
6,5
108
Strip galvanized
Steel
6049252
SB BKS FS
Item no.
6049252
Length
3000
Width
6,5
Height
108
Surface
Strip galvanized
Material
Steel
