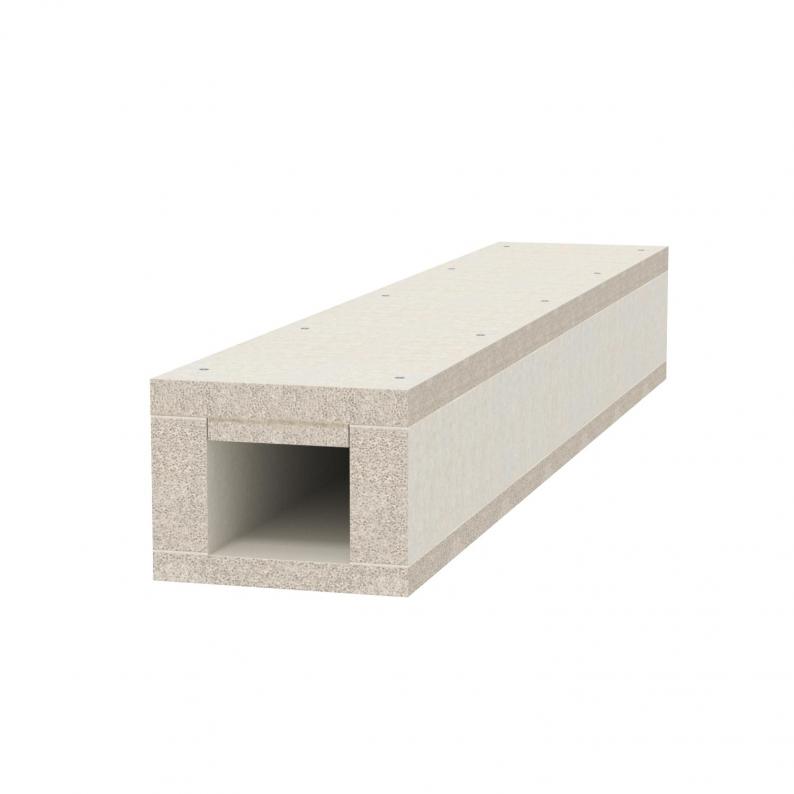

PYROLINE® Con D PLC fire protection duct EI90

PYROLINE® Con D PLC fire protection duct EI90

Type PLCD D090810
|
Item no. 7215810
|
EAN 4012196836444
Show all variants
Item no. / Type
Length
Dimension B
Dimension H
Dimension b
Dimension h

Smallest selling unit: 1 m

m

Description

Fire protection duct made of water and frost-resistant fibreglass lightweight concrete of material class A1 according to EN 13501-1 for fireproof routing of cables in escape and rescue routes. EI60 classification as installation duct according to EN 13501-2 on the basis of tests according to EN 1366-5. When there is an internal fire load (cable fire), the duct prevents the spread of fire from one fire section to another.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strip.


  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı

Technical data

Dimensions

Length1000 mm
Dimension B180 mm
Dimension H140 mm
Dimension b100 mm
Dimension h80 mm

Technical data

With perforationno
Koruma kılıfıWithout
İzolasyon malzemesi içeriğiGlass-fibre lightweight concrete
Alev alabilir taraf sayısı3
Cover fasteningScrew
Classification EI − installation duct90
Boyut1000x100x80
MaterialFibreglass lightweight concrete
ColourGrey

Accessories

System accessories
Type
PLCD E090810

Smallest selling unit: 1 piece

piece

Type
PLCD W090810

Smallest selling unit: 1 piece

piece

Type
KAD-8040

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Dimension B
Dimension H
Dimension b
Dimension h
PLCD D090810
Item no.
7215810
Length
1000
Dimension B
180
Dimension H
140
Dimension b
100
Dimension h
80
PLCD D091220
Item no.
7215814
Length
1000
Dimension B
280
Dimension H
180
Dimension b
200
Dimension h
120
