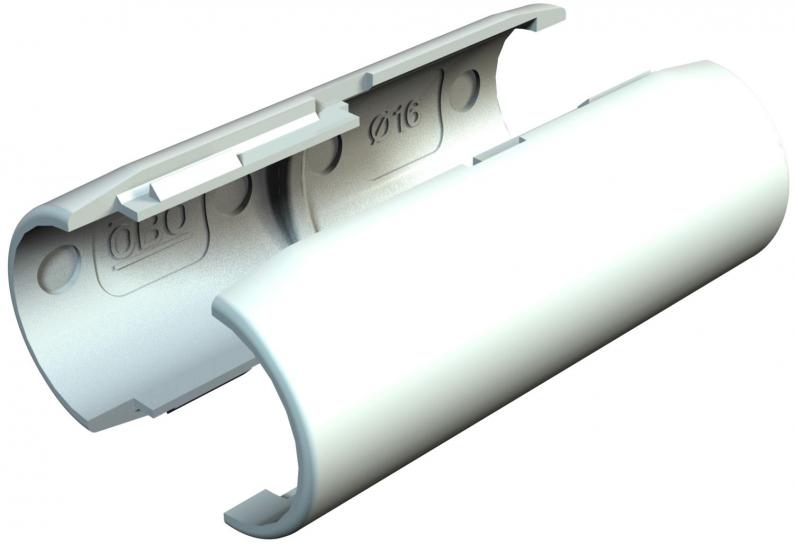

Quick pipe connecting sleeve, light grey
Type 2953 M M20 LGR
|Item no. 2153831
|EAN 4012195469391
Item no. / Type
Thread
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 10 piece
10piece
piece
Description
Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
Technical data
Dimensions
| Dimension L | 65 mm |
|---|---|
| Dimension B | 25,5 mm |
| Dimension R | 10,1 mm |
Technical data
| Halogen-free | no |
|---|---|
| Thread | M20 |
| Size | M20 |
| Polished surface | no |
| Permitted temperature range, min. | 0 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | M20 |
| Material | Polyvinylchloride |
| Colour | Light grey; RAL 7035 |
Environmental Data
0,047 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,047 kg CO₂e / 1 Piece |
|---|
