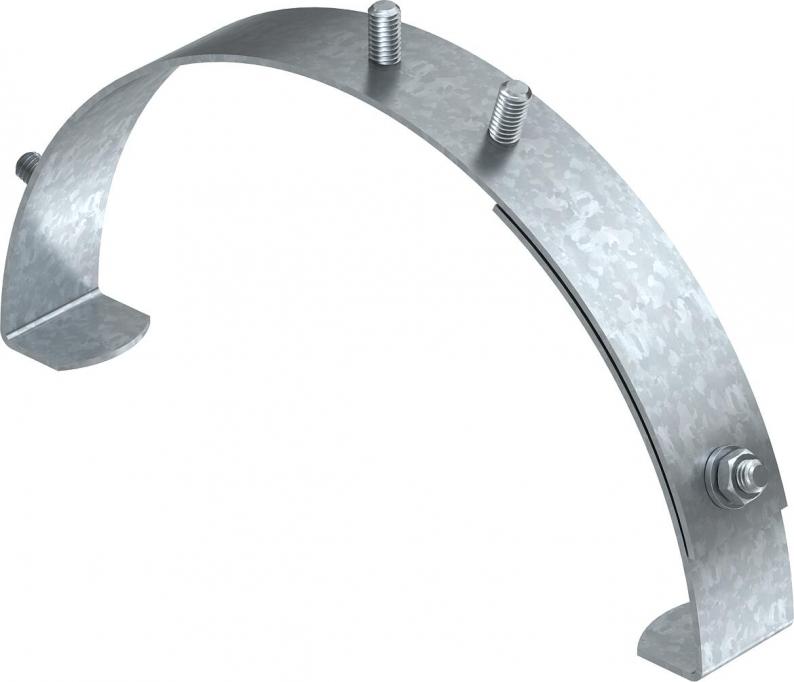

Roof cable holder for ridge tiles with M8 threaded bolts
Type 132 GB-M8
|Item no. 5202568
|EAN 4012195894124
Item no. / Type
5202568 / 132 GB-M8
Montaj yüksekliği
20 mm
Smallest selling unit: 20 piece
20piece
piece
Description
• Adjustable from 180–240 mm
• With conductor 177/20, polyamide, grey
• With 3 M8 threaded nipples for positioning the holder
• With conductor 177/20, polyamide, grey
• With 3 M8 threaded nipples for positioning the holder
Technical data
Technical data
| Montaj yüksekliği | 20 mm |
|---|---|
| Application | Ridge |
| Mounting type | Tensionable |
| Boyut | M8 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,4358 kg CO2e / 1 Piece |
|---|
