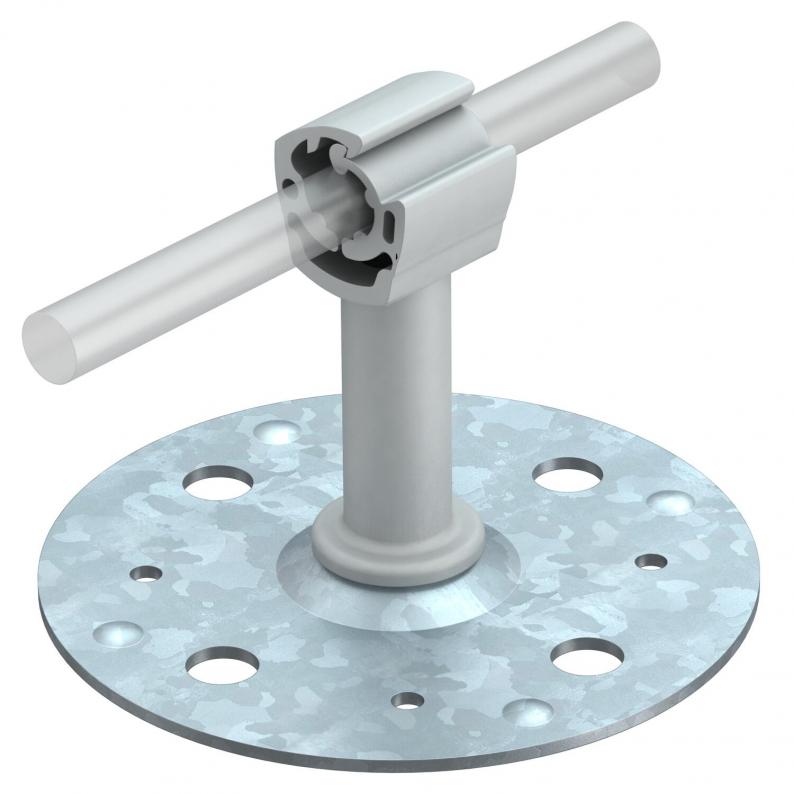

Roof conductor holder 55 mm
Type 165 NBK 55
|Item no. 5218314
|EAN 4012195904274
Item no. / Type
5218314 / 165 NBK 55
Length
100 mm
Montaj yüksekliği
55 mm
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 75 piece
75piece
piece
Description
• Suitable for bonding straight to flat roofs
• Conductor holder of polyamide
• Bottom section, hot-dip galvanised steel
• Bottom section Ø 100 mm
• Conductor holder of polyamide
• Bottom section, hot-dip galvanised steel
• Bottom section Ø 100 mm
Technical data
Dimensions
| Length | 100 mm |
|---|---|
| Dimension H | 55 mm |
Technical data
| Montaj yüksekliği | 55 mm |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor diameter, max. | 10 |
| Conductor fastening type | With clamp clip |
| Application | Flat roof |
| Mounting type | Adhesive |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 55mm |
| Material | Polyamide |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,3801 kg CO2e / 1 Piece |
|---|
