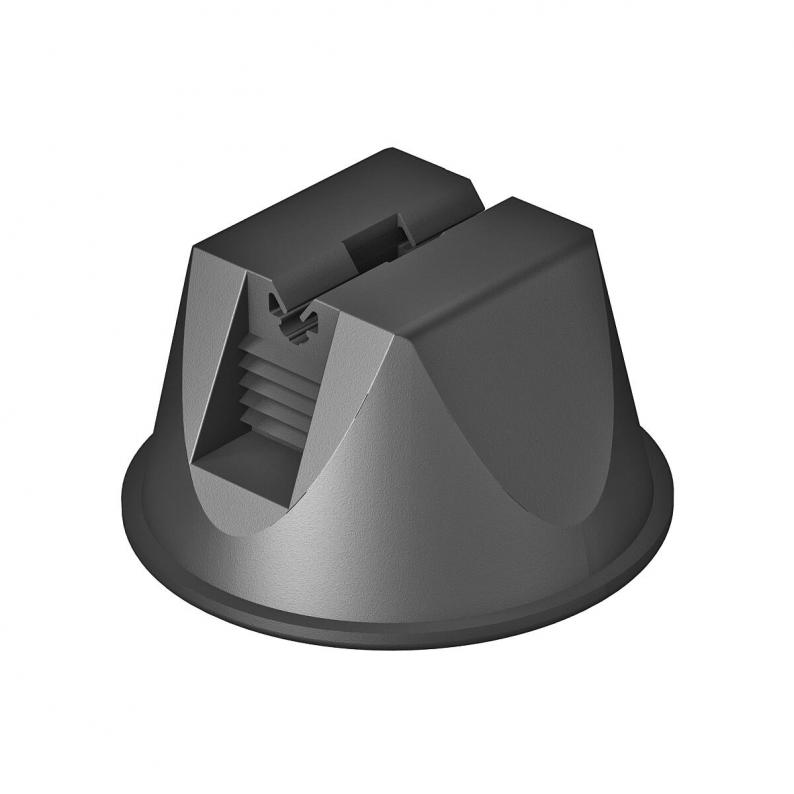

Roof conductor holder for flat roofs, without base
Type 165 OBG-8
|Item no. 5218683
|EAN 4012195408796
Item no. / Type
5218683 / 165 OBG-8

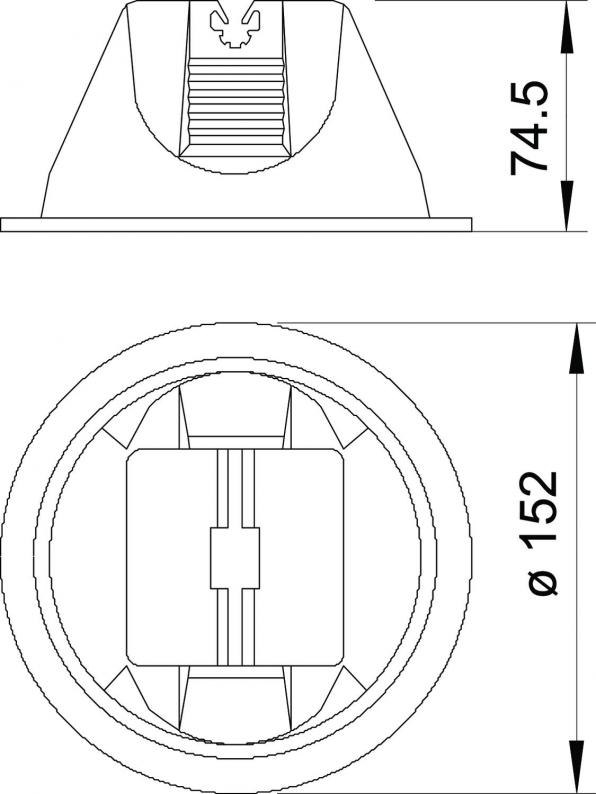

Length
152 mm
Uyumluluk
Rd 8 mm
Smallest selling unit: 12 piece
12piece
piece
Description
• Without bottom
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve from polyethylene, black
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve from polyethylene, black
Technical data
Dimensions
| Length | 152 mm |
|---|
Technical data
| Conductor diameter, min. | 8 |
|---|---|
| Conductor diameter, max. | 8 |
| Conductor fastening type | With clip |
| Application | Flat roof |
| Mounting type | Miscellaneous |
| Uyumluluk | Rd 8 mm |
| Boyut | 8mm |
| Material | Polyethylene |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,4349 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
