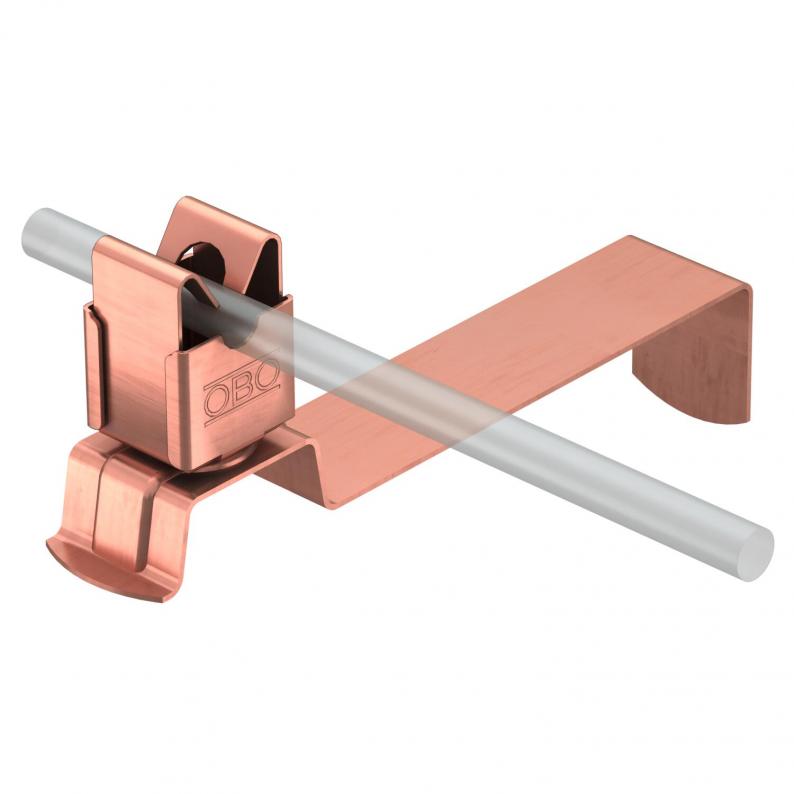

Roof conductor holder for tiled roofs, angled, Rd 8
Type 157 FX-CU
|Item no. 5215879
|EAN 4012195531852
Item no. / Type
5215879 / 157 FX-CU
Length
140 mm
Uyumluluk
Rd 8 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• With flexible bottom section from copper for matching to roof tiles (easy to flex)
• Holder from copper plated stainless steel (V2A)
• Curved bottom section for quick installation
• Holder from copper plated stainless steel (V2A)
• Curved bottom section for quick installation
Technical data
Dimensions
| Length | 140 mm |
|---|
Technical data
| Montaj yüksekliği | 26,5 mm |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor diameter, max. | 8 |
| Conductor fastening type | With clip |
| Application | Roof surface |
| Mounting type | For suspension |
| Uyumluluk | Rd 8 mm |
| Boyut | 8mm |
| Material | Copper |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,1816 kg CO2e / 1 Piece |
|---|
