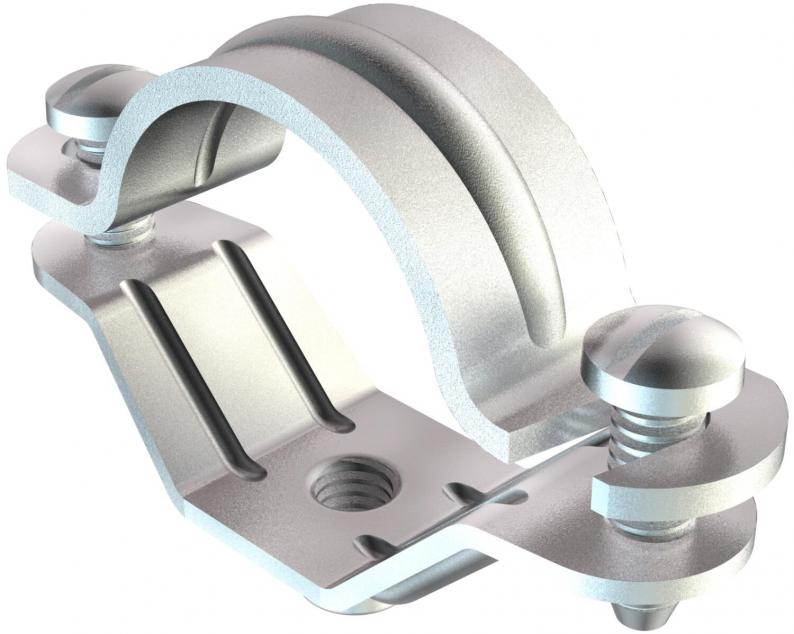

Screw-in spacer clip, universal

Screw-in spacer clip, universal

Type 2900 M6 13-16 G
|
Item no. 1383094
|
EAN 4012195121336
Show all variants
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.

Smallest selling unit: 50 piece

piece

Description

Vida dişi M6 ile.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

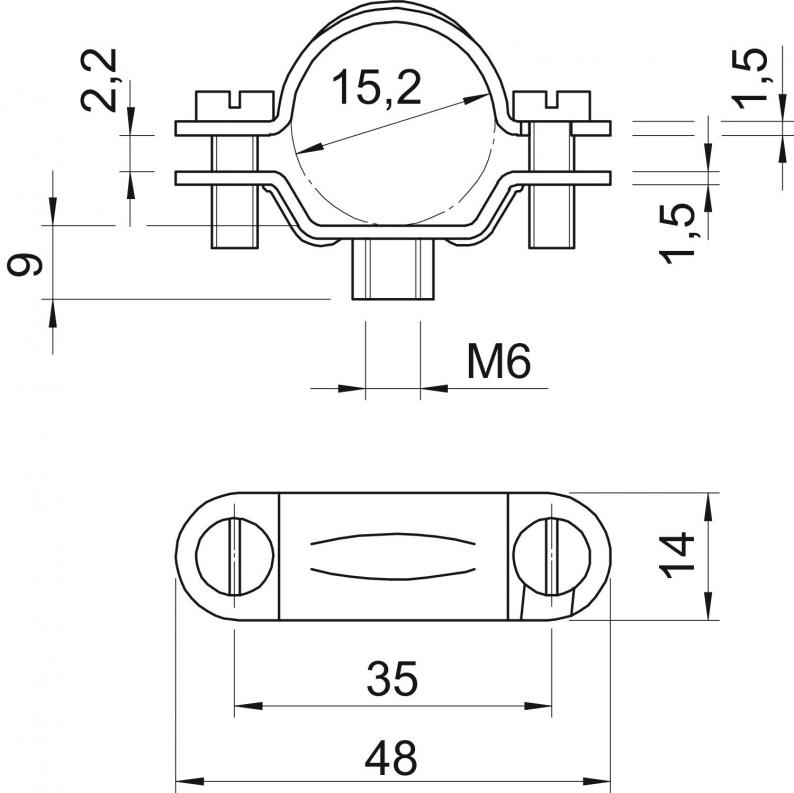

Dimensions

Length48 mm
Width14 mm
Dimension L48 mm
Dimension A48 mm
Dimension B35 mm
Dimension d min.15,2 mm
Dimension H9 mm
Dimension b14 mm
Dimension x2,2 mm
Ölçü t1 (mm)1,5
Ölçü t2 (mm)1,5
Dimension D15,2 mm

Technical data

Material thickness1,5 mm
Hole sizeM6
Halojen İçermezhayır
BoyutM16
UV-resistantevet
Plastic-coveredhayır
VidaM5 x 14
Version forkapalı
Fastening typeVida deliği
Clamping range D, min.13,5 mm
Clamping range D, max.16 mm
Boyut13,5-16mm
SurfaceElectrogalvanized
MaterialSteel

Environmental Data

Packaging made completely from recycled cardboard.evet
Packaging without plasticevet
CO2 ayak izi (GWP) beşikten kapıya0,0576 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

Material thickness
Clamping range D, min.
Clamping range D, max.
2900 M6 13-16 G
Item no.
1383094
Material thickness
1,5
Hole size
M6
Clamping range D, min.
13,5
Clamping range D, max.
16
Surface
Electrogalvanized
Material
Steel
2900 M6 16-19 G
Item no.
1383116
Material thickness
1,5
Hole size
M6
Clamping range D, min.
16,5
Clamping range D, max.
19
Surface
Electrogalvanized
Material
Steel
2900 M6 18-21 G
Item no.
1383132
Material thickness
1,5
Hole size
M6
Clamping range D, min.
18
Clamping range D, max.
21
Surface
Electrogalvanized
Material
Steel
2900 M6 19-23 G
Item no.
1383167
Material thickness
1,5
Hole size
M6
Clamping range D, min.
19
Clamping range D, max.
23
Surface
Electrogalvanized
Material
Steel
2900 M6 24-29 G
Item no.
1383213
Material thickness
1,5
Hole size
M6
Clamping range D, min.
24
Clamping range D, max.
29
Surface
Electrogalvanized
Material
Steel
2900 M6 30-34 G
Item no.
1383299
Material thickness
2
Hole size
M6
Clamping range D, min.
30
Clamping range D, max.
34
Surface
Electrogalvanized
Material
Steel
2900 M6 33-38 G
Item no.
1383310
Material thickness
2
Hole size
M6
Clamping range D, min.
33
Clamping range D, max.
38
Surface
Electrogalvanized
Material
Steel
2900 M6 43-48 G
Item no.
1383361
Material thickness
2
Hole size
M6
Clamping range D, min.
43
Clamping range D, max.
48
Surface
Electrogalvanized
Material
Steel
2900 M6 39-42 G
Item no.
1383418
Material thickness
2
Hole size
M6
Clamping range D, min.
39
Clamping range D, max.
42
Surface
Electrogalvanized
Material
Steel
2900 M6 49-55 G
Item no.
1383426
Material thickness
2
Hole size
M6
Clamping range D, min.
49
Clamping range D, max.
55
Surface
Electrogalvanized
Material
Steel
2900 M6 54-60 G
Item no.
1383485
Material thickness
2
Hole size
M6
Clamping range D, min.
54
Clamping range D, max.
60
Surface
Electrogalvanized
Material
Steel
2900 M6 61-64 G
Item no.
1383507
Material thickness
2
Hole size
M6
Clamping range D, min.
61
Clamping range D, max.
64
Surface
Electrogalvanized
Material
Steel
