Screw plug, metric thread

Screw plug, metric thread

Type 168 MS M12 + O
|
Item no. 2090650
|
EAN 4012197456009
Show all variants
Item no. / Type
Vida dişi

Smallest selling unit: 100 piece

piece

Description

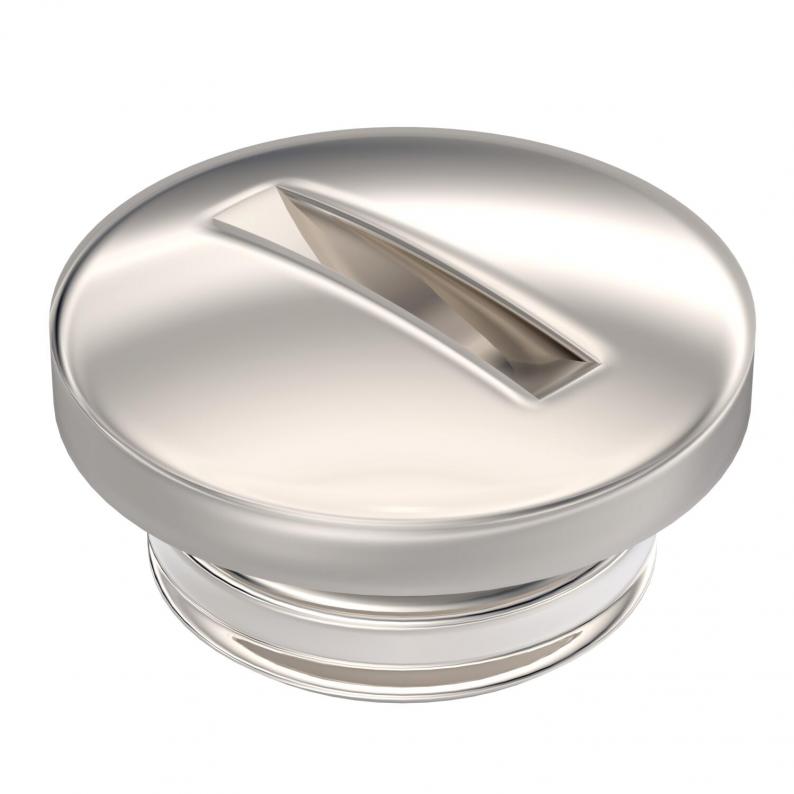

Metal screw plug with integrated sealing ring To close unused threaded openings, e.g. in housings or junction and branch boxes. With metric thread to DIN EN 60423 or ISO 68. Protection class IP 68 (5 bar/1 h).
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Metrik vida dişi
  • Koruma sınıfı IP 68
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

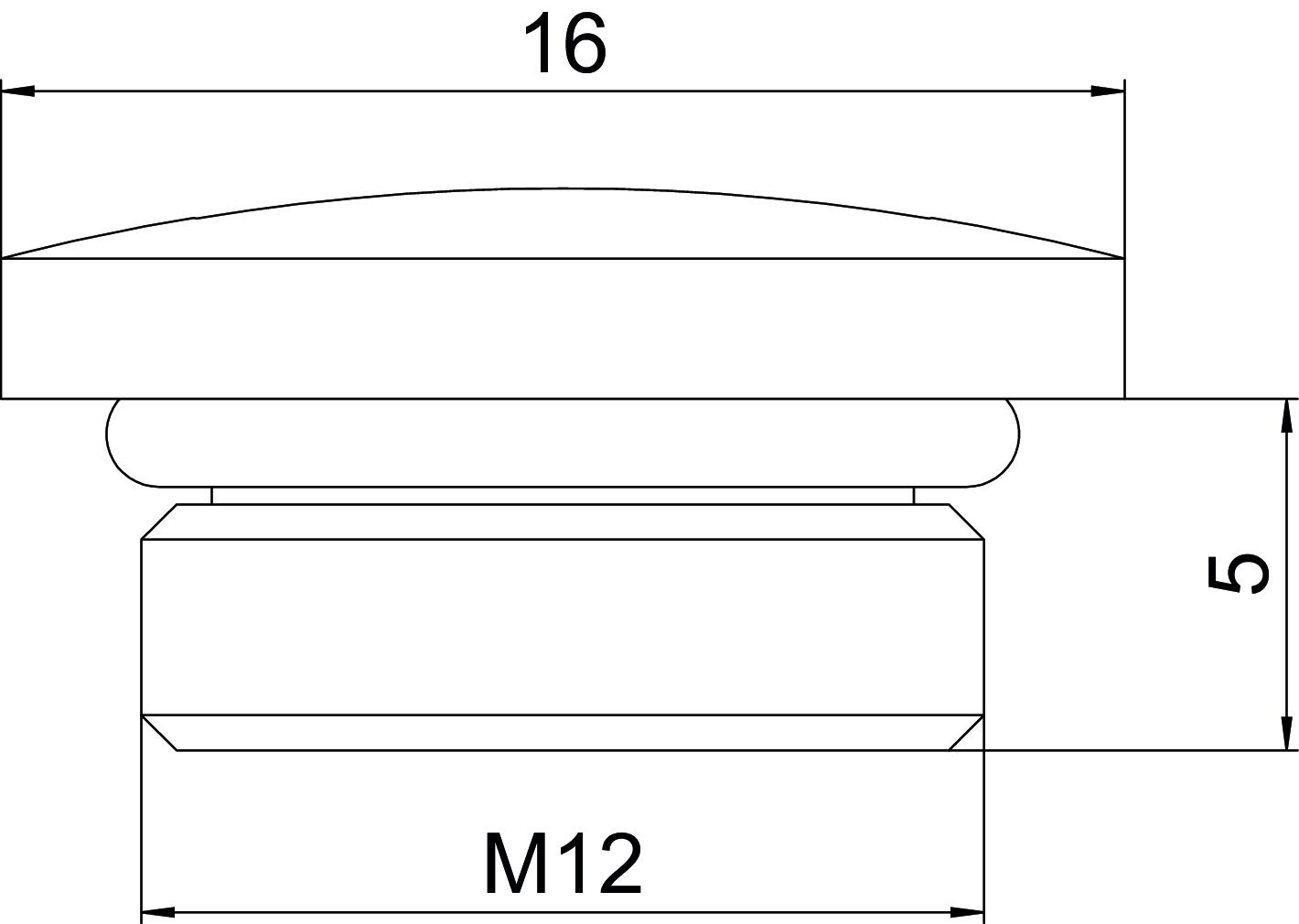

Dimensions

Length16 mm
Width16 mm
Height8 mm
Dimension L5 mm
Dimension D16 mm

Technical data

Darbeye dayanıklıhayır
Halojen İçermezevet
Cam elyafı takviyelihayır
Patlamaya karşı korumalıhayır
Koruma sınıfıIP68
Vida dişiM12 x 1,5
Thread typeMetric
For Ex zone gasYok
For Ex zone dustYok
Thread increase1,5 mm
Nominal thread size metric/PG12
BoyutØ16x8
SurfaceNickel-plated
MaterialBrass

Environmental Data

Packaging made completely from recycled cardboard.evet
Packaging without plasticevet
CO2 ayak izi (GWP) beşikten kapıya0,0003 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (1)

Variants

Vida dişi
168 MS M12 + O
Item no.
2090650
Vida dişi
M12 x 1,5
168 MS M16 + O
Item no.
2090652
Vida dişi
M16 x 1,5
168 MS M20 + O
Item no.
2090654
Vida dişi
M20 x 1,5
168 MS M25 + O
Item no.
2090656
Vida dişi
M25 x 1,5
168 MS M32 + O
Item no.
2090658
Vida dişi
M32 x 1,5
168 MS M40 + O
Item no.
2090662
Vida dişi
M40 x 1,5
168 MS M50 + O
Item no.
2090664
Vida dişi
M50 x 1,5
168 MS M63 + O
Item no.
2090668
Vida dişi
M63 x 1,5
