Screw plug, PG thread

Screw plug, PG thread

Type 168 MS PG 7 + O
|
Item no. 2090610
|
EAN 4012197455606
Show all variants
Item no. / Type
Thread

Smallest selling unit: 100 piece

piece

Description

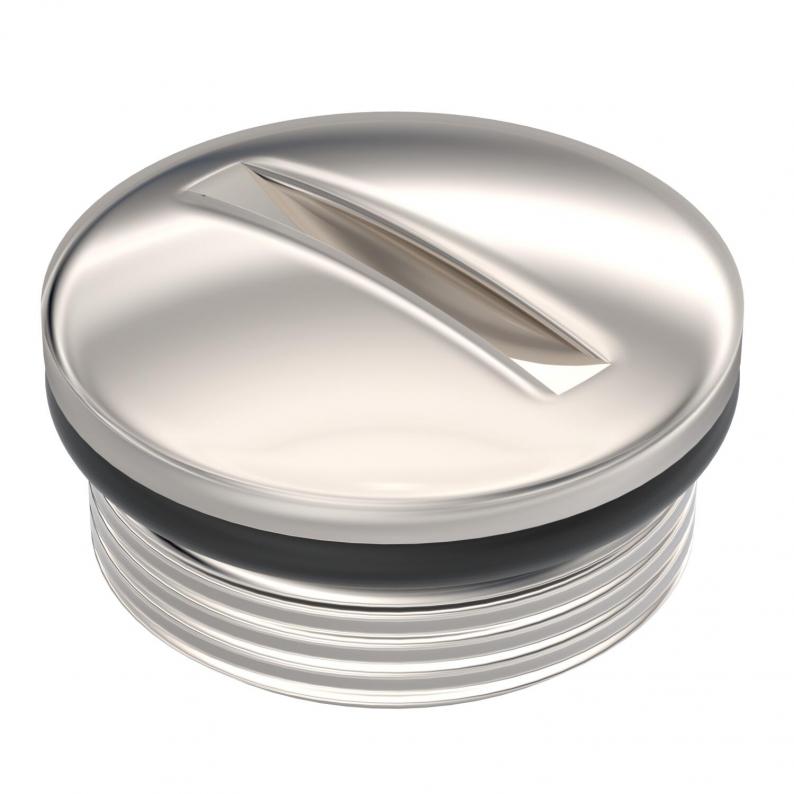

Metal screw plug with integrated sealing ring To close unused threaded openings, e.g. in housings or junction and branch boxes. With PG thread to DIN EN 46320 or DIN 40430. Protection class IP 68 (5 bar/1 h).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread Pg
  • Protection rating IP 68
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

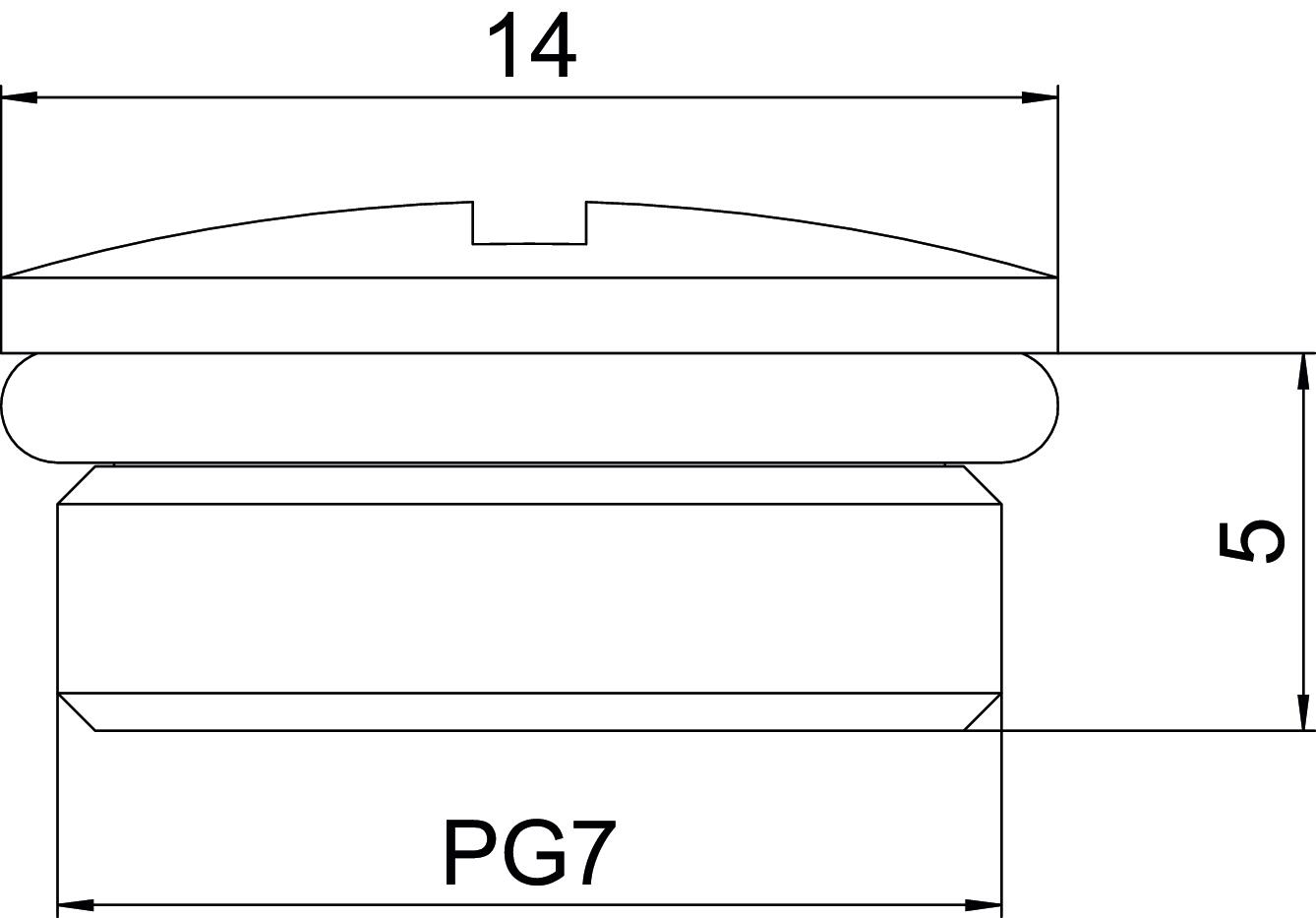

Dimensions

Length14 mm
Width14 mm
Height7 mm
Dimension L5 mm
Dimension D14 mm

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Protection ratingIP68
ThreadPg 7
Thread typePG
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,27 mm
Nominal thread size metric/PG7
DimensionØ14x7
SurfaceNickel-plated
MaterialBrass

Environmental Data

0,0003 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0003 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (1)

Variants

Vida dişi
Thread
168 MS PG 7 + O
Item no.
2090610
Vida dişi
Pg 7
168 MS PG 9 + O
Item no.
2090612
Vida dişi
Pg 9
168 MS PG11 + O
Item no.
2090614
Vida dişi
Pg 11
168 MS PG13 + O
Item no.
2090616
Vida dişi
Pg 13,5
168 MS PG16 + O
Item no.
2090618
Vida dişi
Pg 16
168 MS PG21 + O
Item no.
2090620
Thread
Pg 21
168 MS PG29 + O
Item no.
2090624
Vida dişi
Pg 29
168 MS PG36 + O
Item no.
2090626
Thread
Pg 36
168 MS PG42 + O
Item no.
2090630
Vida dişi
Pg 42
168 MS PG48 + O
Item no.
2090632
Vida dişi
Pg 48
