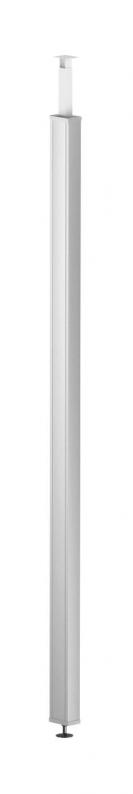

Service pole, sheet steel, with sheet steel cover
Type ISS70110STSRW
|Item no. 6286530
|EAN 4012195809135
Item no. / Type
6286530 / ISS70110STSRW
Length
2505 mm
Fastening type
Telescope
Material
Steel
Colour
Pure white; RAL 9010
Smallest selling unit: 1 piece
1piece
piece
Description
Sheet steel service pole with a 76.5 mm system opening.
Set consisting of:
1 single-compartment pole with clamping fastening
Total length 2,625–3,665 mm
1 ceiling fastening with telescopic profile
1 sheet steel cover
Length: 2,500 mm
A 2 m PVC separating retainer and 2 cover clips are contained in the scope of delivery.
The service pole is suitable for accepting accessory mounting boxes of the
series 71GD...
The service pole is pre-mounted and ready for use immediately. The following accessories can also be used, depending on the mounting situation.
Set consisting of:
1 single-compartment pole with clamping fastening
Total length 2,625–3,665 mm
1 ceiling fastening with telescopic profile
1 sheet steel cover
Length: 2,500 mm
A 2 m PVC separating retainer and 2 cover clips are contained in the scope of delivery.
The service pole is suitable for accepting accessory mounting boxes of the
series 71GD...
The service pole is pre-mounted and ready for use immediately. The following accessories can also be used, depending on the mounting situation.
Technical data

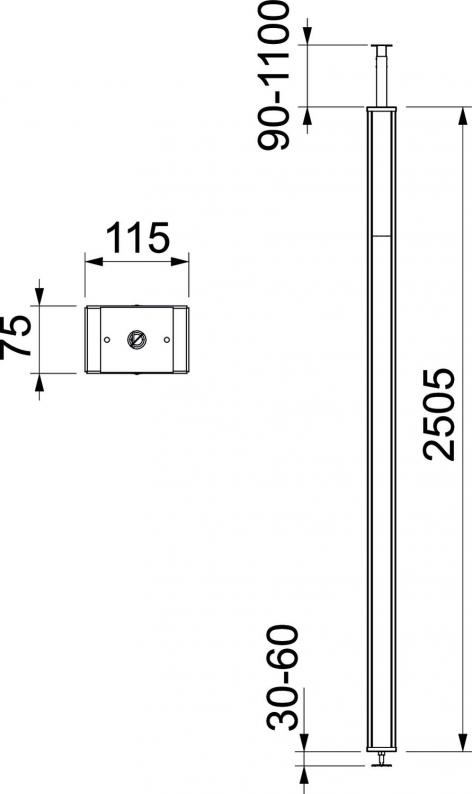

Dimensions
| Length | 2505 mm |
|---|---|
| Width | 115 mm |
| Height | 75 mm |
| Kolon yüksekliği min. | 2600 mm |
| Kolon yüksekliği maks. | 3700 mm |
Technical data
| Yol sayısı | 1 St. |
|---|---|
| Halojen İçermez | yes |
| Kolon biçimi | Rectangular |
| Ayarlanabilir | yes |
| Yükseklik dengelemesi min. | 90 mm |
| Yükseklik dengelemesi maks. | 1100 mm |
| Takılabilir kapak sayısı | 1 |
| Portatif | no |
| Tavana montaj | yes |
| Zemine montaj | no |
| Kablo girişi | Top |
| Pre-wired | no |
| Continuous profile | yes |
| Version for | Single-sided |
| Fastening type | Telescope |
| Kanal genişliği | 76,5 mm |
| Boyut | 2505x115x75 |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 42,0418 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6288610
Accessory mounting box 71GD6, singleType
71GD6
Smallest selling unit: 5 piece
5piece
piece
