Service pole, type ISS140100R
Type ISS140100RRW
|Item no. 6289070
|EAN 4012195477433
Item no. / Type
Length
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

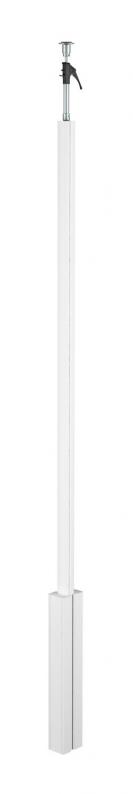

ISS aluminium service pole with a thin tube to the ceiling.
Set consists of:
1 two-compartment pole with clamping fastening
Total length 3,315‒3,480 mm
1 ceiling fastening with clamping device
2 aluminium covers
Length: 780 mm
The service pole has a 76.5 mm system opening in the area for device installation and is suitable for accepting front-locking accessory mounting boxes of the series 71GD...
Set consists of:
1 two-compartment pole with clamping fastening
Total length 3,315‒3,480 mm
1 ceiling fastening with clamping device
2 aluminium covers
Length: 780 mm
The service pole has a 76.5 mm system opening in the area for device installation and is suitable for accepting front-locking accessory mounting boxes of the series 71GD...
Technical data

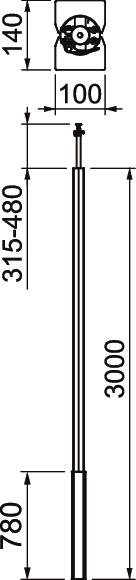

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 140 mm |
| Kolon yüksekliği min. | 3315 mm |
| Kolon yüksekliği maks. | 3480 mm |
Technical data
| Yol sayısı | 2 St. |
|---|---|
| Halojen İçermez | yes |
| Kolon biçimi | Installation space, angular/pole, round |
| Ayarlanabilir | yes |
| Yükseklik dengelemesi min. | 315 mm |
| Yükseklik dengelemesi maks. | 480 mm |
| Takılabilir kapak sayısı | 2 |
| Portatif | no |
| Tavana montaj | yes |
| Zemine montaj | yes |
| Kablo girişi | Top/bottom |
| Pre-wired | no |
| Continuous profile | no |
| Version for | Double-sided |
| Fastening type | Tension |
| Kanal genişliği | 76,5 mm |
| Boyut | 3000x100x140 |
| Material | Aluminium |
| Colour | Pure white; RAL 9010 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 158,3545 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6290336
Floor plate for ISS140100RType
ISSBP140100RW
Smallest selling unit: 1 piece
1piece
piece
Item no. 6290362
Rubber support for ISS140100RType
ISSGU140100
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Fastening type
Material
Colour
Surface
Item no.
ISS140100RRW
3000
Tension
Aluminium
Pure white; RAL 9010
6289070
ISS140100REL
3000
Tension
Aluminium
aluminium
Anodised
6289073
Colour
ISS140100RRW
Item no.
6289070
Length
3000
Fastening type
Tension
Material
Aluminium
Colour
Pure white; RAL 9010
ISS140100REL
Item no.
6289073
Length
3000
Fastening type
Tension
Surface
Anodised
Material
Aluminium
Colour
aluminium
