Service pole, type ISSHS4

Service pole, type ISSHS4

Type ISSHS4RW
|
Item no. 6286700
|
EAN 4012195143888
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 1 piece

piece

Description

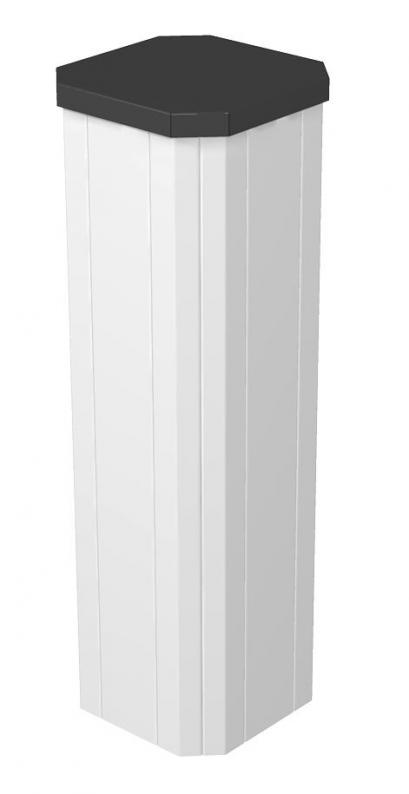

ISS sheet steel service pole with a 76.5 mm system opening on four sides.

Empty, fittable from all four sides with six standard devices (socket, telephone, etc.) on each side, max. 24 devices. Fastening possible directly on the floor. Accessory mounting boxes to be ordered separately. The service pole is suitable for accepting front locking accessory mounting boxes of the series 71GD....


  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Yer tipi tesisat kolonu
  • Yol genişliği 76,5 mm
  • Modüler cihaz
  • Koruma kontaklı priz
  • CO₂ footprint (PCF)

Technical data

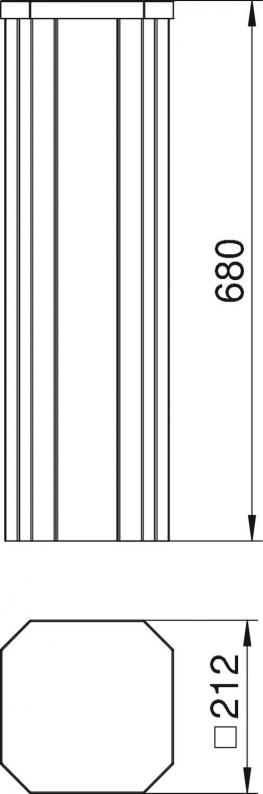

Dimensions

Length680 mm
Width212 mm
Height212 mm
Kolon yüksekliği min.680 mm

Technical data

Yol sayısı4 St.
Halojen İçermezyes
Kolon biçimiSquare
Ayarlanabilirno
Takılabilir kapak sayısı4
Portatifno
Tavana montajno
Zemine montajyes
Kablo girişiBottom
Pre-wiredno
Continuous profileyes
Version forMiscellaneous
Fastening typeBolts
Kanal genişliği76,5 mm
Boyut680x212x212
MaterialSteel
ColourPure white; RAL 9010

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya36,2655 kg CO2e / 1 Piece

Accessories

System accessories
Type
71GD6

Smallest selling unit: 5 piece

piece

Type
71GD7-2

Smallest selling unit: 2 piece

piece

Type
8AWR

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
ISSHS4RW
Item no.
6286700
Length
680
Colour
Pure white; RAL 9010
ISSHS4LGR
Item no.
6286702
Length
680
Colour
Light grey; RAL 7035
