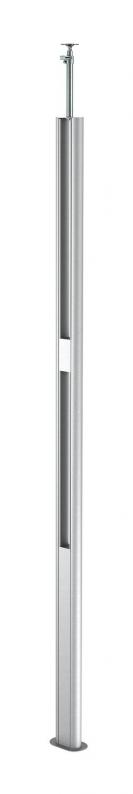

Service pole, type ISST70140B
Type ISST70140BRW
|Item no. 6290010
|EAN 4012195161202
Item no. / Type
Length
Colour
Smallest selling unit: 1 piece
1piece
piece
Description
ISS twin aluminium service pole with a 76.5 mm system opening.
Set consists of:
1 single-compartment pole with clamping fastening
Total length: 3,315–3,480 mm
1 fastening option for lighting
1 ceiling fastening with clamping device
1 device installation profile
Length: 1,000 mm
1 aluminium cover
Length: 1,000 mm
1 ISSBP70140 floor plate
The area for device installation is suitable to accept front-locking
device installation sockets of the 71GD... series. The panel to fasten luminaires is attached at a height of 1,850 mm and its own height is 148 mm. It is possible to create various kinds of workplace or general room lighting using the standard wall brackets from lighting manufacturers.
The following accessories can be used, depending on the mounting situation.
Set consists of:
1 single-compartment pole with clamping fastening
Total length: 3,315–3,480 mm
1 fastening option for lighting
1 ceiling fastening with clamping device
1 device installation profile
Length: 1,000 mm
1 aluminium cover
Length: 1,000 mm
1 ISSBP70140 floor plate
The area for device installation is suitable to accept front-locking
device installation sockets of the 71GD... series. The panel to fasten luminaires is attached at a height of 1,850 mm and its own height is 148 mm. It is possible to create various kinds of workplace or general room lighting using the standard wall brackets from lighting manufacturers.
The following accessories can be used, depending on the mounting situation.
Technical data

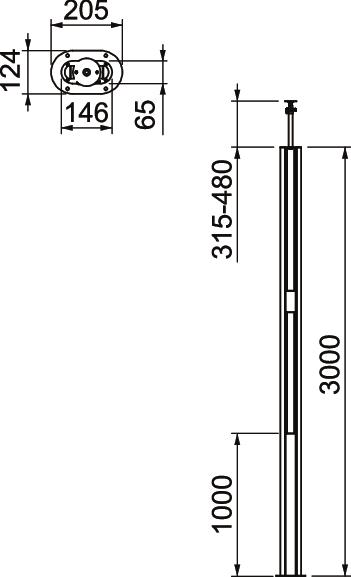

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 146 mm |
| Height | 65 mm |
| Kolon yüksekliği min. | 3315 mm |
| Kolon yüksekliği maks. | 3480 mm |
Technical data
| Yol sayısı | 1 St. |
|---|---|
| Halojen İçermez | yes |
| Kolon biçimi | Oval |
| Ayarlanabilir | yes |
| Yükseklik dengelemesi min. | 315 mm |
| Yükseklik dengelemesi maks. | 480 mm |
| Takılabilir kapak sayısı | 1 |
| Portatif | no |
| Tavana montaj | yes |
| Zemine montaj | yes |
| Kablo girişi | Top/bottom |
| Pre-wired | no |
| Continuous profile | no |
| Version for | Single-sided |
| Fastening type | Tension |
| Kanal genişliği | 76,5 mm |
| Boyut | 3000x146x65 |
| Material | Aluminium |
| Colour | Pure white; RAL 9010 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 101,2469 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6290160
Adapter stabiliser for ISST70140Type
ISSZS70140RW
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Fastening type
Material
Colour
Surface
Item no.
ISST70140BRW
3000
Tension
Aluminium
Pure white; RAL 9010
6290010
ISST70140BEL
3000
Tension
Aluminium
alüminyum
Anodised
6290013
Colour
ISST70140BRW
Item no.
6290010
Length
3000
Fastening type
Tension
Material
Aluminium
Colour
Pure white; RAL 9010
ISST70140BEL
Item no.
6290013
Length
3000
Fastening type
Tension
Surface
Anodised
Material
Aluminium
Colour
alüminyum
