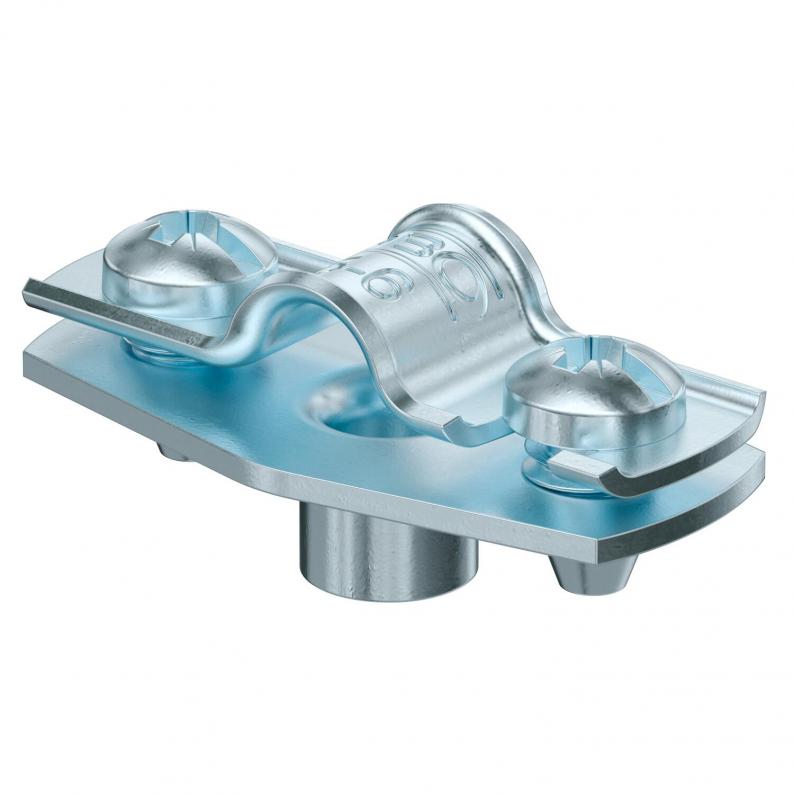

Spacer clip 732 G
Type ASG 732 6 G
|Item no. 1362404
|EAN 4012196599585
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Smallest selling unit: 25 piece
25piece
piece
Description
Vidalı ayarlı kelepçe ile yapılan montajlar. Ayarlı kelepçeleri ve vidalı ayarlı kelepçeler, alaşımlı çelik V2A, elektro galvaniz veya sıcak daldırma galvanize kaplamalı çelik veya alüminyum malzemesinden üretilmektedir. Tespitleme, ankraj vidaları veya olta tipi dübeller ve Sprint vidalar ile yapılabilir.
Technical data
Technical data
| Maintain electrical functions | evet |
|---|---|
| Material thickness | 1,25 mm |
| For diameter | 5 - 6 |
| Halojen İçermez | evet |
| UV-resistant | evet |
| Plastic-covered | hayır |
| Number of cables/pipes | 1 |
| Distance to the wall | evet |
| Version for | kapalı |
| Fastening type | Threaded connection |
| Clamping range D, min. | 5 mm |
| Clamping range D, max. | 6 mm |
| Boyut | 5-6mm |
| Surface | Electrogalvanized |
| Material | Steel |

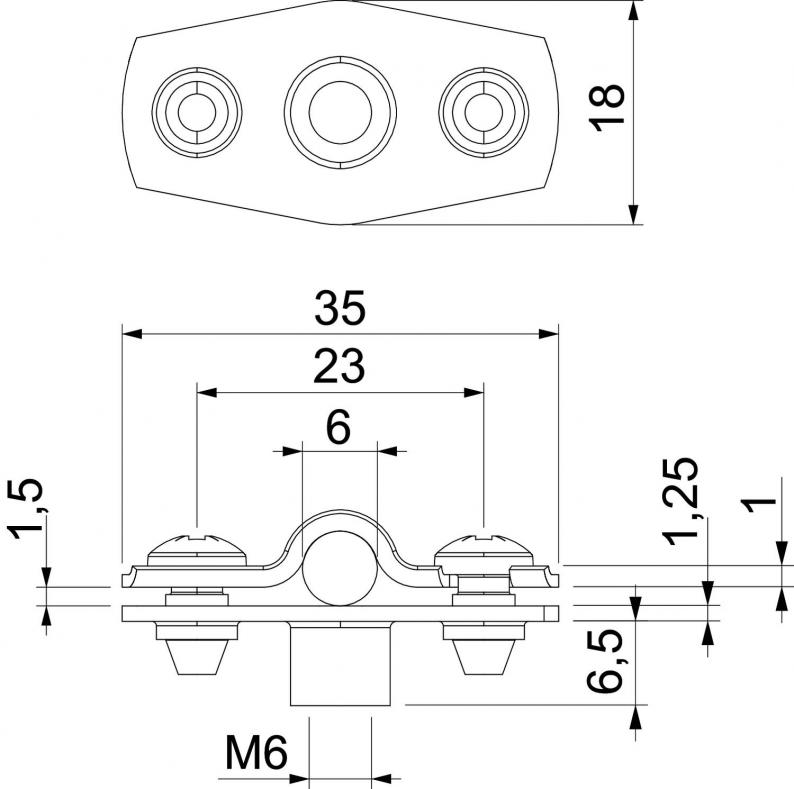

Dimensions
| Dimension A | 35 mm |
|---|---|
| Dimension B | 23 mm |
| Dimension x | 1,5 mm |
| Ölçü t1 (mm) | 1 |
| Ölçü t2 (mm) | 1,25 |
| Dimension D | 6 mm |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0473 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (5)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Surface
Material
Item no.
ASG 732 6 G
1,25
5
6
Electrogalvanized
Steel
1362404
ASG 732 7 G
1,25
6
7
Electrogalvanized
Steel
1362406
ASG 732 8 G
1,25
7
8
Electrogalvanized
Steel
1362408
ASG 732 10 G
1,25
8
10
Electrogalvanized
Steel
1362410
ASG 732 12 G
1,25
10
12
Electrogalvanized
Steel
1362412
ASG 732 14 G
1,25
12
14
Electrogalvanized
Steel
1362414
ASG 732 17 G
1,25
14
17
Electrogalvanized
Steel
1362417
ASG 732 20 G
1,25
17
20
Electrogalvanized
Steel
1362420
ASG 732 25 G
1,25
20
25
Electrogalvanized
Steel
1362424
ASG 732 30 G
1,5
25
30
Electrogalvanized
Steel
1362428
ASG 732 36 G
1,5
30
36
Electrogalvanized
Steel
1362432
ASG 732 44 G
1,5
36
44
Electrogalvanized
Steel
1362436
ASG 732 53 G
1,5
44
53
Electrogalvanized
Steel
1362440
ASG 732 63 G
1,5
53
63
Electrogalvanized
Steel
1362444
