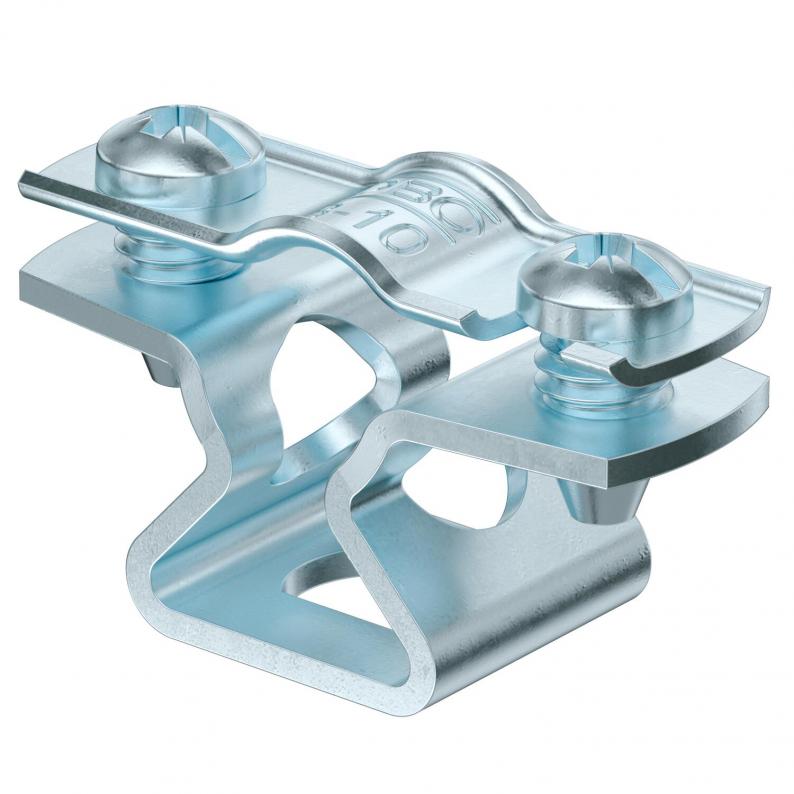

Spacer clip 733 G
Type ASL 733 10 G
|Item no. 1362754
|EAN 4012196600021
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Smallest selling unit: 25 piece
25piece
piece
Description
Vidalı ayarlı kelepçe ile yapılan montajlar. Ayarlı kelepçeleri ve vidalı ayarlı kelepçeler, alaşımlı çelik V2A, elektro galvaniz veya sıcak daldırma galvanize kaplamalı çelik veya alüminyum malzemesinden üretilmektedir. Tespitleme, ankraj vidaları veya olta tipi dübeller ve Sprint vidalar ile yapılabilir.
Technical data
Technical data
| Maintain electrical functions | evet |
|---|---|
| Material thickness | 1,5 mm |
| For diameter | 8 - 10 |
| Halojen İçermez | evet |
| UV-resistant | evet |
| Plastic-covered | hayır |
| Number of cables/pipes | 1 |
| Distance to the wall | evet |
| Version for | kapalı |
| Fastening type | Vida deliği |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 10 mm |
| Boyut | 8-10mm |
| Surface | Electrogalvanized |
| Material | Steel |

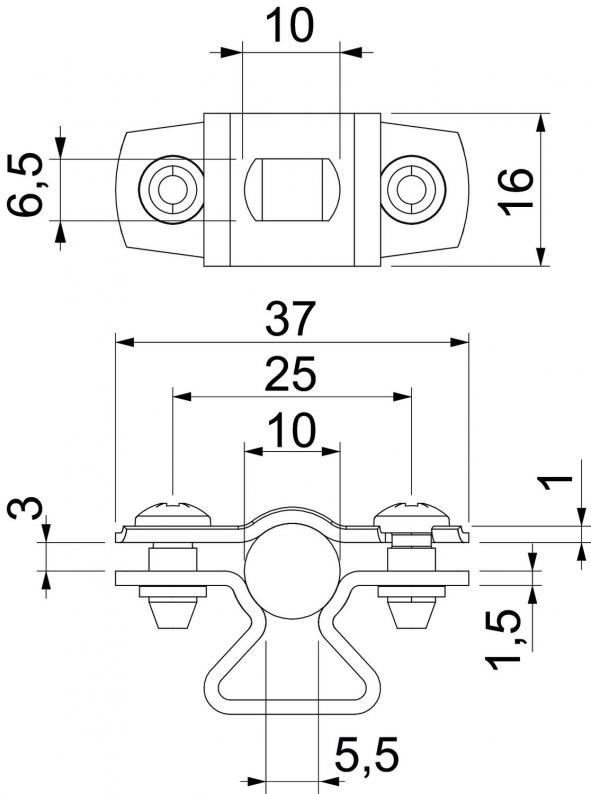

Dimensions
| Dimension L | 10 mm |
|---|---|
| Dimension A | 37 mm |
| Dimension B | 25 mm |
| Dimension d max. | 10 mm |
| Dimension d min. | 8 mm |
| Dimension b | 16 mm |
| Dimension x | 3 mm |
| Dimension s | 5,5 mm |
| Ölçü t1 (mm) | 1 |
| Ölçü t2 (mm) | 1,5 |
| Dimension D | 10 mm |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0539 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (5)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Surface
Material
Item no.
ASL 733 10 G
1,5
8
10
Electrogalvanized
Steel
1362754
ASL 733 12 G
1,5
10
12
Electrogalvanized
Steel
1362756
ASL 733 14 G
1,5
12
14
Electrogalvanized
Steel
1362758
ASL 733 17 G
1,5
14
17
Electrogalvanized
Steel
1362762
ASL 733 20 G
1,5
17
20
Electrogalvanized
Steel
1362764
ASL 733 25 G
1,5
20
25
Electrogalvanized
Steel
1362768
ASL 733 30 G
1,5
25
30
Electrogalvanized
Steel
1362772
ASL 733 36 G
1,5
30
36
Electrogalvanized
Steel
1362776
ASL 733 44 G
1,5
36
44
Electrogalvanized
Steel
1362780
ASL 733 53 G
1,5
44
53
Electrogalvanized
Steel
1362784
ASL 733 63 G
1,5
53
63
Electrogalvanized
Steel
1362788
