Sprung hinged anchor
Type 451 M4x95 G
|Item no. 3481662
|EAN 4012195432852
Item no. / Type
3481662 / 451 M4x95 G
Smallest selling unit: 50 piece
50piece
piece
Description

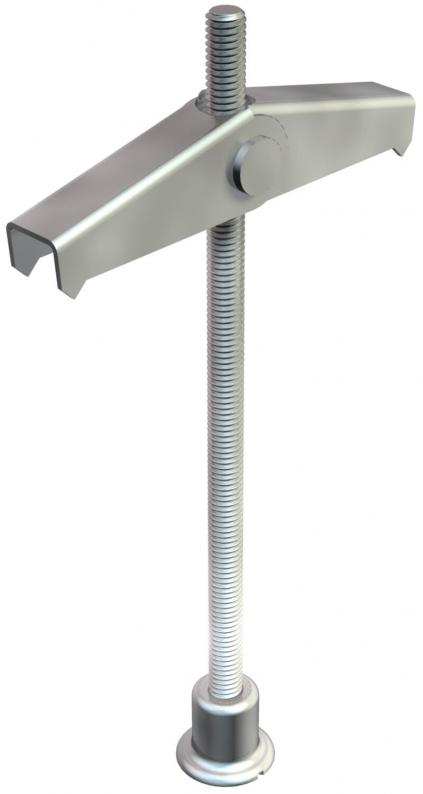

With threaded rod and slotted brass nut, steel axle.
Technical data
Dimensions
| Length | 90 mm |
|---|
Technical data
| Thread | M4 |
|---|---|
| With washer | no |
| Breaking load | 0,2 kN |
| Version for | With threaded shaft |
| Minimum cavity depth | 35 mm |
| Drill hole | 14 mm |
| Drill hole diameter, min. | 14 mm |
| Thread type | Metric |

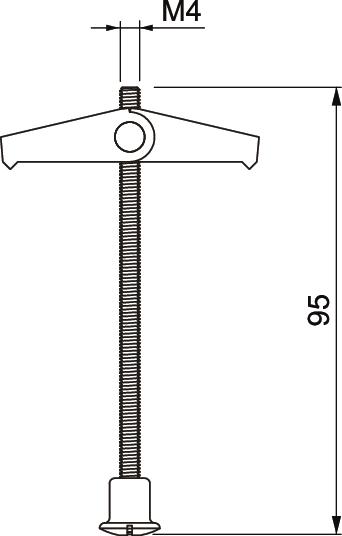

| Dimension | M4x95mm |
| Surface | Electrogalvanised |
| Material | Steel |
