Stand-off bracket FT
Type DBLG 20 050 FT
|Item no. 6015648
|EAN 4012196042845
Item no. / Type
Dimension B
Smallest selling unit: 20 piece
20piece
piece
Description

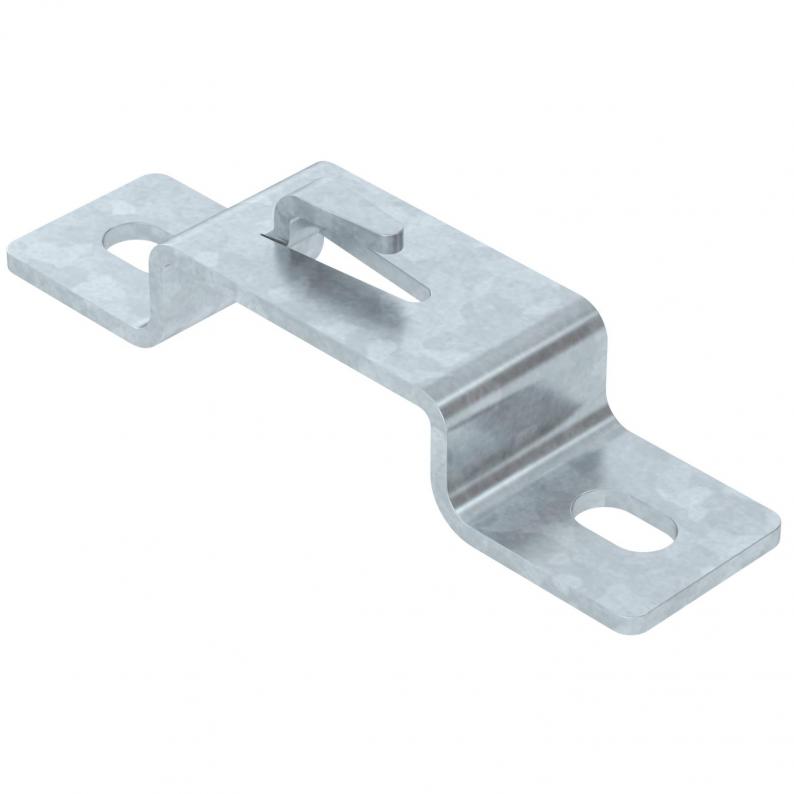

Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.
Screwless fastening of the mesh cable tray on the stand-off bracket.
Technical data

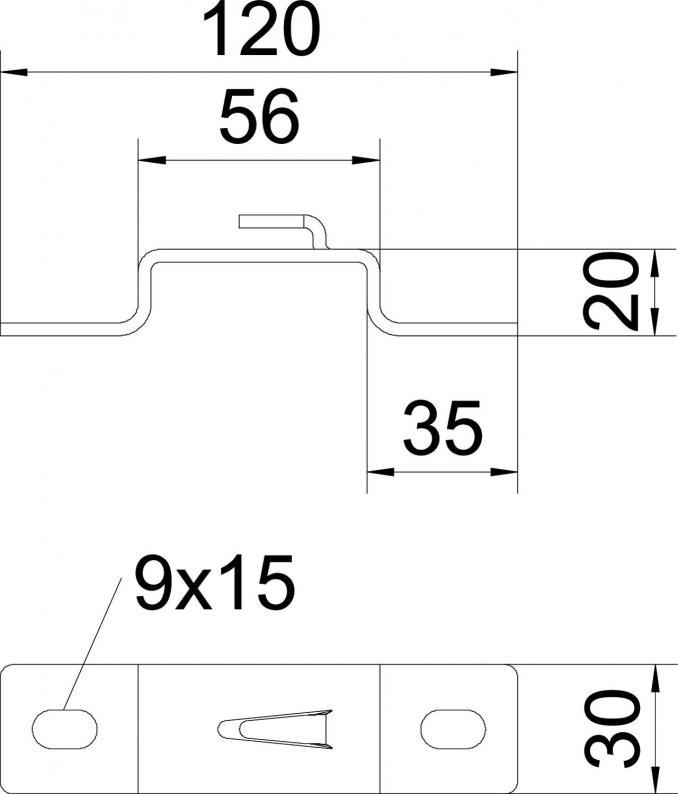

Dimensions
| Height | 20 mm |
|---|---|
| Dimension L | 120 mm |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
Technical data
| Kafes kablo kanalı için uygun | yes |
|---|---|
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | no |
| Version for | Wall/ceiling clamp, trapezoidal profile |
| Tray fastening | Retaining lug |
| Boyut | B50mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,2204 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Dimension B
Tray fastening
Surface
Material
Item no.
DBLG 20 050 FT
56
Retaining lug
Hot-dip galvanised
Steel
6015648
DBLG 20 100 FT
106
Retaining lug
Hot-dip galvanised
Steel
6015656
DBLG 20 150 FT
156
Retaining lug
Hot-dip galvanised
Steel
6015660
DBLG 20 200 FT
206
Retaining lug
Hot-dip galvanised
Steel
6015664
DBLG 20 300 FT
306
Retaining lug
Hot-dip galvanised
Steel
6015672
DBLG 20 400 FT
406
Retaining lug
Hot-dip galvanised
Steel
6015691
DBLG 20 500 FT
506
Retaining lug
Hot-dip galvanised
Steel
6015695
DBLG 20 600 FT
606
Retaining lug
Hot-dip galvanised
Steel
6015699
Dimension B
DBLG 20 050 FT
Item no.
6015648
Dimension B
56
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 100 FT
Item no.
6015656
Dimension B
106
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 150 FT
Item no.
6015660
Dimension B
156
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 200 FT
Item no.
6015664
Dimension B
206
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 300 FT
Item no.
6015672
Dimension B
306
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 400 FT
Item no.
6015691
Dimension B
406
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 500 FT
Item no.
6015695
Dimension B
506
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 600 FT
Item no.
6015699
Dimension B
606
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
