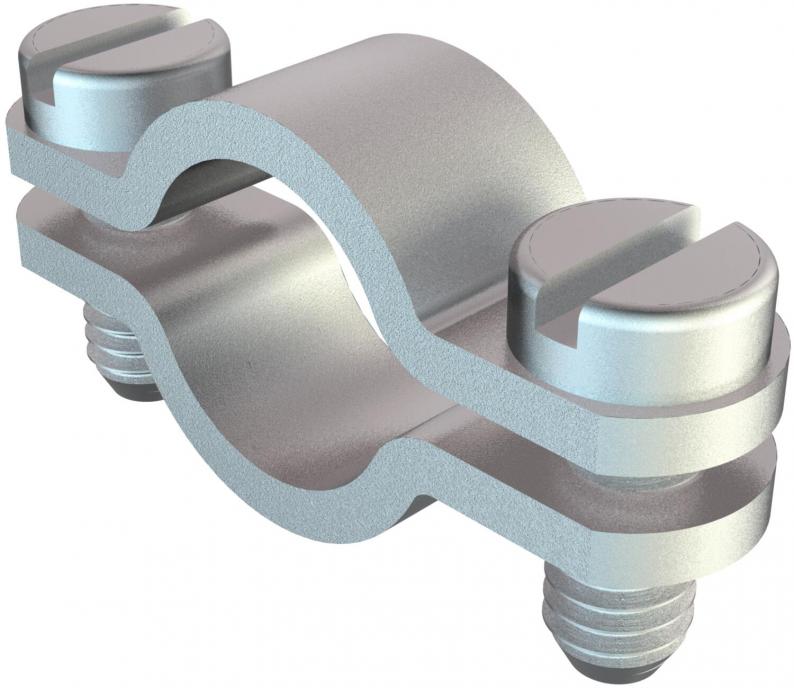

Strain relief clip 7909
Type 7909 6 G
|Item no. 1443011
|EAN 4012195135616
Item no. / Type
1443011 / 7909 6 G
Material thickness
1 mm
For diameter
6
Smallest selling unit: 100 piece
100piece
piece
Description
Çekme yükünü azaltma kelepçesi 6mm

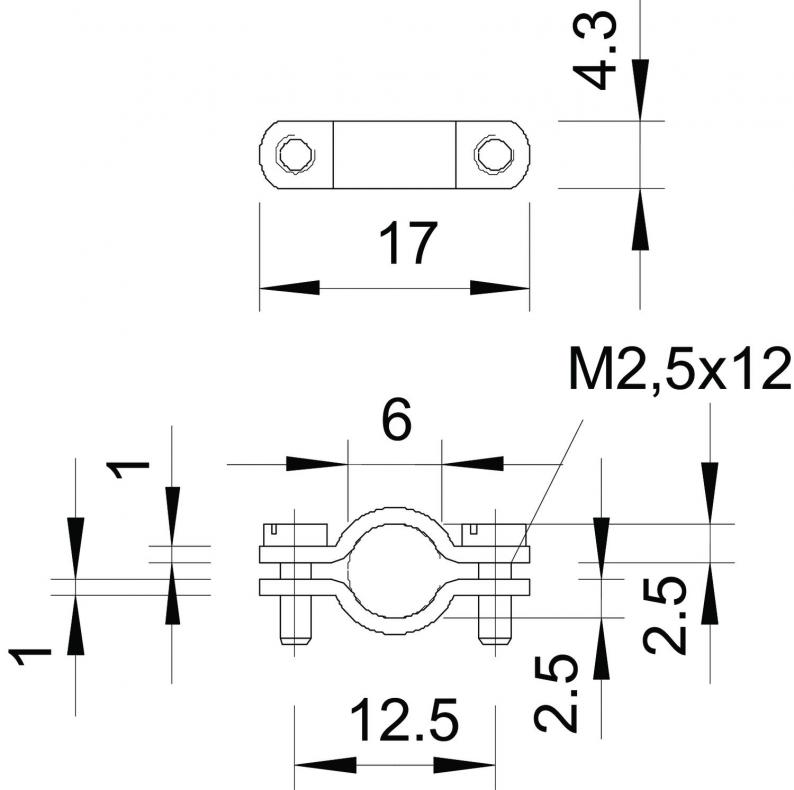

Technical data
Technical data
| Material thickness | 1 mm |
|---|---|
| For diameter | 6 |
| Halojen İçermez | evet |
| UV-resistant | evet |
| Plastic-covered | hayır |
| Suitable in fire protection area | hayır |
| Number of cables/pipes | 1 |
| Nominal diameter | 6 mm |
| Distance to the wall | hayır |
| Version for | İkili |
| Fastening type | Vida deliği |
| Clamping range D, min. | 6 mm |
| Clamping range D, max. | 6 mm |
| Boyut | 6mm |
| Surface | Electrogalvanized |
| Material | Steel |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0071 kg CO2e / 1 Adet |
|---|
