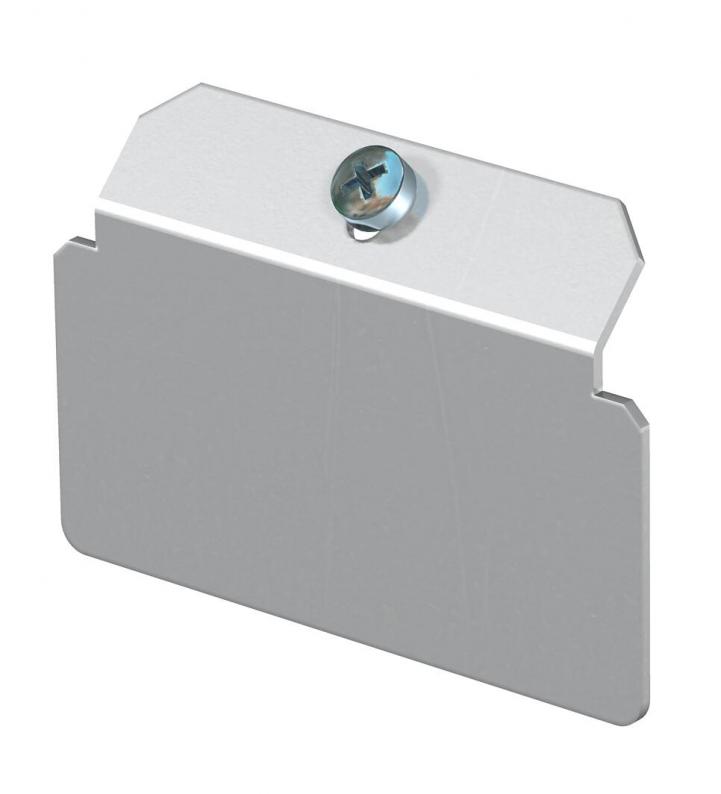

Support plate, blank, for mounting support
Type MTM 0
|Item no. 7407764
|EAN 4012195113027
Item no. / Type
7407764 / MTM 0
Smallest selling unit: 1 piece
1piece
piece
Description
"Blank" support plate for construction-side manufacture of a mounting opening for installation of connection sockets for data, audio or video systems.
Technical data
Dimensions
| Length | 72 mm |
|---|
Technical data
| Connection options | Connection sockets for data, audio or video technology. |
|---|---|
| Labelling panel | no |
| Strain relief option | yes |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | yes |
| Installation opening for on-floor tank | no |
| Number of installable devices | 0 |
| Seal installation option | no |
| Decouplable | no |
| Floor plate | no |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Lowerable to be flush-floor | no |
| Depth | 48,6 mm |
| With floor covering recess | no |
| Floor covering protection frame | no |
| Number of strain reliefs | 0 |
| Heavy-duty version | no |
| Version for | Support shape |
| Fastening type | Lockable |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
0,1828 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1828 kg CO2e / 1 Piece |
|---|
