Support profile for PV module mounting, flat roof

Support profile for PV module mounting, flat roof

Type TPF 35 5000 ALU
|
Item no. 5900370
|
EAN 4012197437923
Show all variants
Item no. / Type
5900370 / TPF 35 5000 ALU
Length
5000 mm

Smallest selling unit: 4 piece

piece

Description

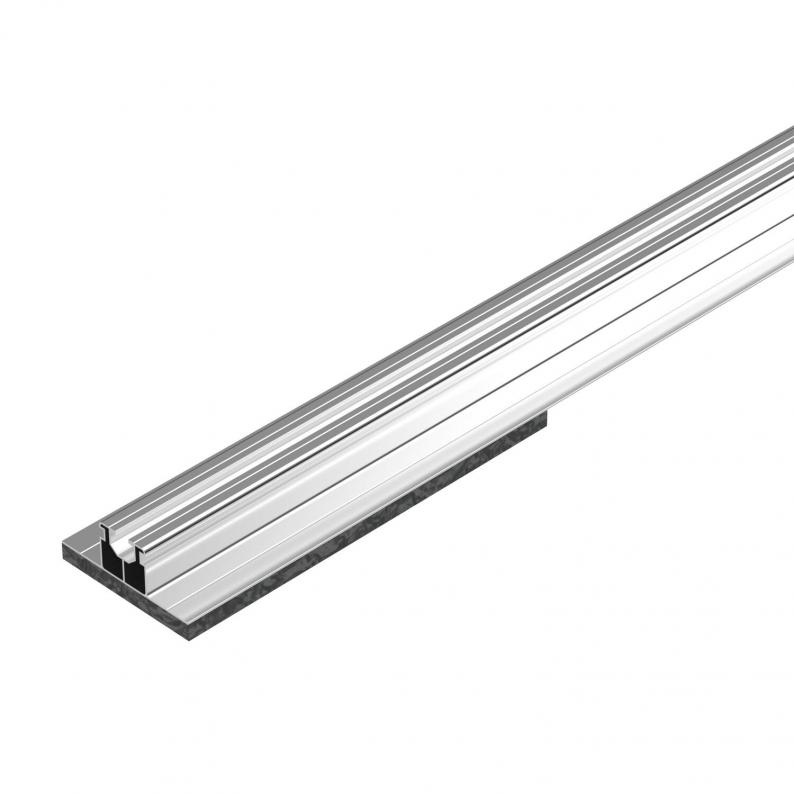

Non-slip support profile for PV module mounting on flat roofs. Basis for installation of short and long supports STK and STL. Screwable connection of multiple support profiles with LV 35 straight connectors.
  • CO₂ footprint (PCF)

Technical data

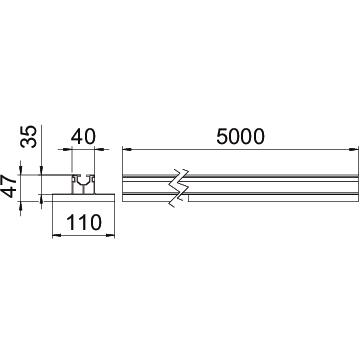

Dimensions

Length5000 mm
Width110 mm
Height47 mm

Technical data

Boyut110x47x5000
SurfaceBright
MaterialAluminium
Colouralüminyum
Cable duct, integratedno
Cable duct optionalno
Section modulus Sx3210 mm³
Section modulus Sy3840 mm³
CO2 ayak izi (GWP) beşikten kapıya66,8508 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

TPF 35 5000 ALU
Item no.
5900370
Length
5000
