Support rail, perforated GTP
Type 2064 GTPL 2M
|Item no. 1115065
|EAN 4012195044352
Item no. / Type
1115065 / 2064 GTPL 2M
Length
2000 mm
Version for
Delikli
Smallest selling unit: 2 m
2m
m
Description
DIN EN 50035'e uygun G- rayı G32 (daha önce DIN 46277 Kısım 1)
Taşıma rayı genişliği 32 mm
Taşıma rayı genişliği 32 mm
Taşıma rayı genişliği 32 mm.
Technical data

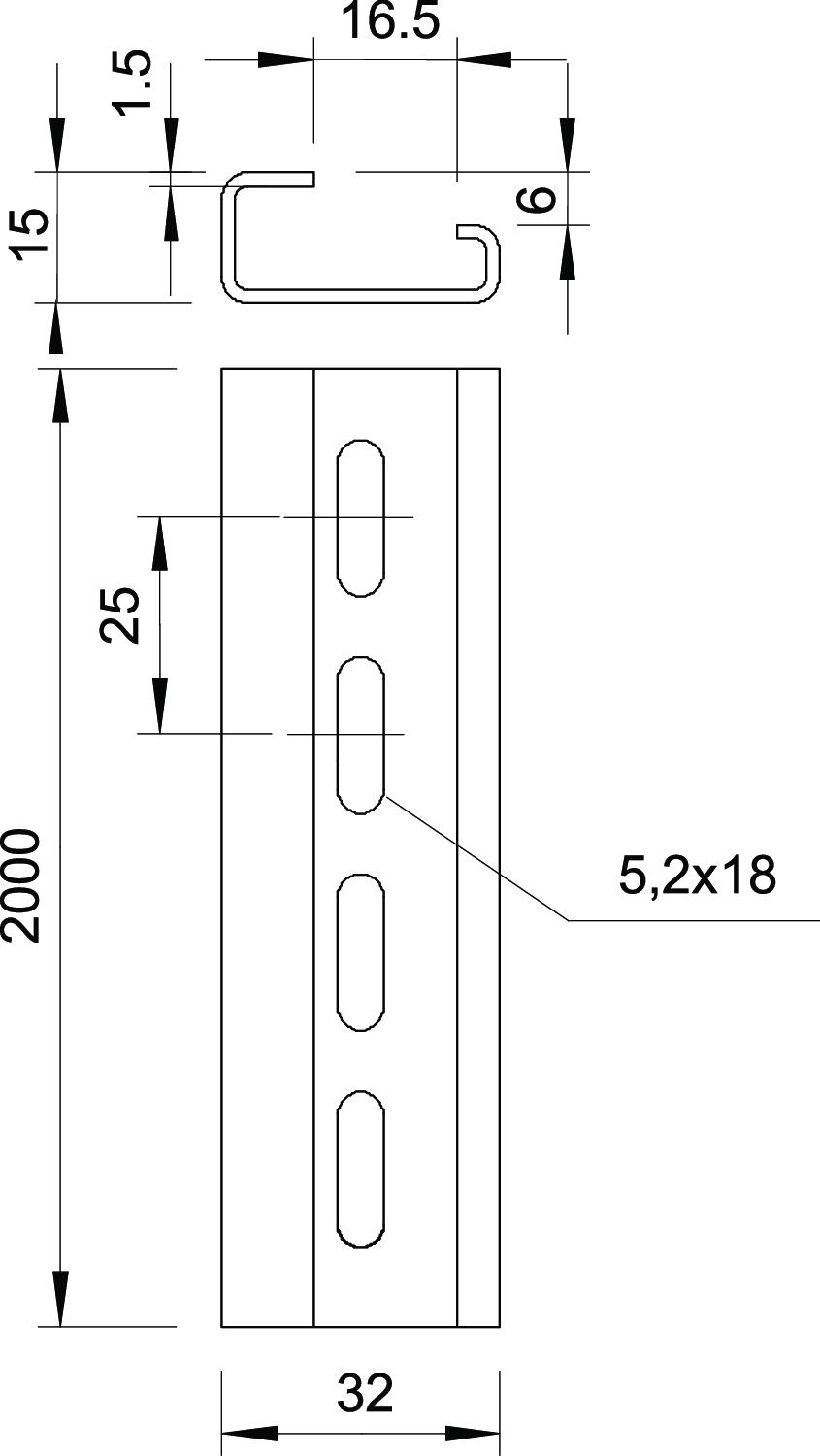

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 32 mm |
| Height | 15 mm |
Technical data
| Material thickness | 1,5 mm |
|---|---|
| Drill hole spacing, centre | 25 mm |
| Version, rails | G rayı |
| Hole shape (ETIM) | Long slot |
| Version for | Delikli |
| Demet | 20 m |
| Boyut | 2000x32x15 |
| Surface | Electrogalvanized, transparently passivated |
| Material | Steel |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,3353 kg CO2e / 1 Metre |
|---|
