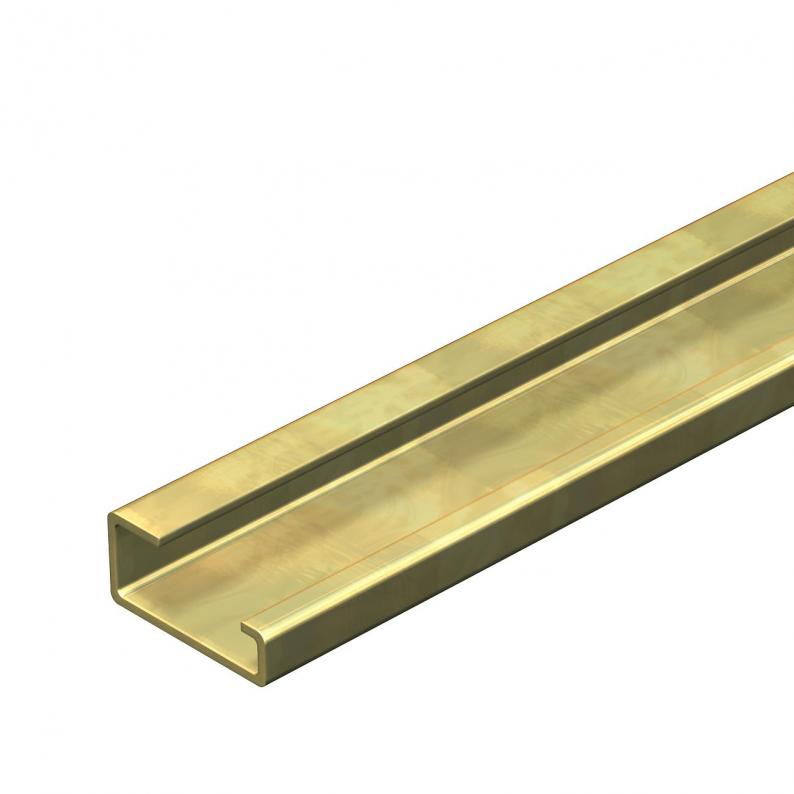

Support rail, unperforated GTP
Type 2064 GTP 2M
|Item no. 1115057
|EAN 4012195044291
Item no. / Type
1115057 / 2064 GTP 2M
Length
2000 mm
Version for
Deliksiz
Smallest selling unit: 2 m
2m
m
Description
DIN EN 60715'e uygun G rayı G32 (daha önce DIN En 50035).
Taşıma rayı genişliği 32 mm.
Technical data

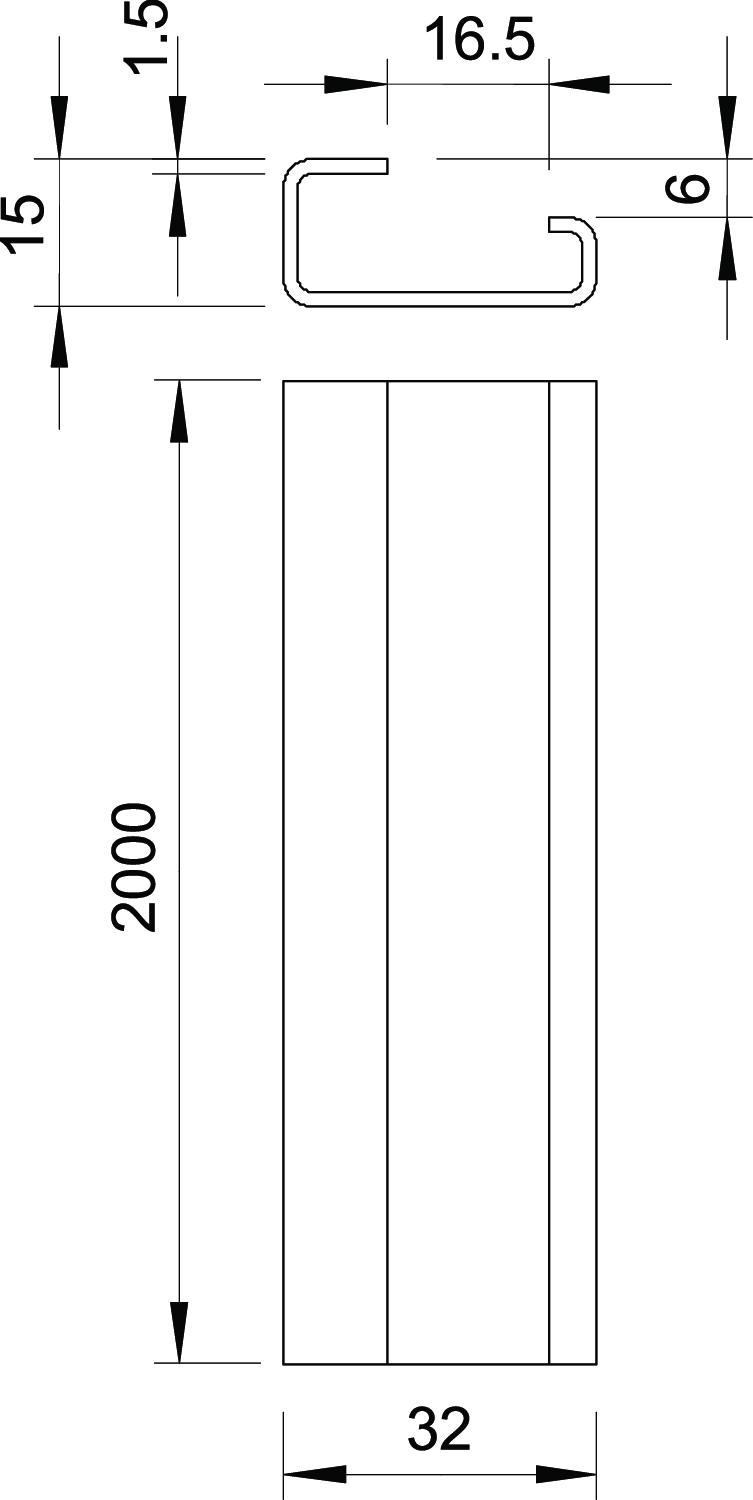

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 32 mm |
| Height | 15 mm |
Technical data
| Material thickness | 1,5 mm |
|---|---|
| Version, rails | G rayı |
| Hole shape (ETIM) | Yok |
| Version for | Deliksiz |
| Demet | 20 m |
| Boyut | 2000x32x15 |
| Surface | Electrogalvanized, transparently passivated |
| Material | Steel |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,3258 kg CO2e / 1 Metre |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Version for
Item no.
2064 GTP 2M
2000
Deliksiz
1115057
2064 GTP 2M
Item no.
1115057
Length
2000
Version for
Deliksiz
