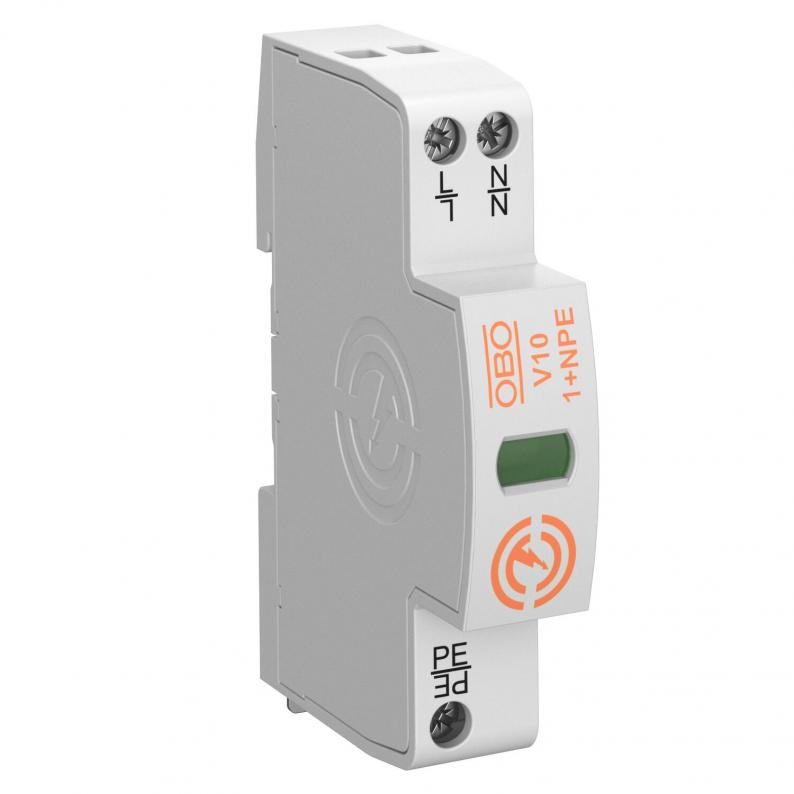

Surge arrester V10 Compact
Type V10-1+NPE
|Item no. 5093395
|EAN 4012197444396
Item no. / Type
Maximum continuous voltage AC
Pole version
Smallest selling unit: 1 piece
1piece
piece
Description
Surge protective device, compact module, type 2+3
• Surge protection in sub-distributors according to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity up to 20 kA (8/20) in total
• High-performance varistor systems
• Including thermal and dynamic separating device and visual function display
Application: Sub-/floor distributors as well as device protection
• Surge protection in sub-distributors according to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity up to 20 kA (8/20) in total
• High-performance varistor systems
• Including thermal and dynamic separating device and visual function display
Application: Sub-/floor distributors as well as device protection
Technical data
Technical data
| Pole number | 2 |
|---|---|
| Network form | All |
| Signalling on device | Visual |
| Protection rating | IP20 |
| Nominal discharge current (8/20 µs) [L-N] | 10 kA |
| Nominal discharge current (8/20 µs) [N-PE] | 10 kA |
| Explosion-tested version | no |
| Test class, type 1 | no |
| Remote signalling | no |
| Test class, type 2 | yes |
| Test class, type 3 | yes |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Integrated back-up fuse | no |
| Protection level [L-N] | ≤1,1 |
| Maximum continuous voltage AC | 255 V |
| Pole version | 1+N/PE |
| Installation type | DIN rail 35 mm |
| Suitable for outdoor use | no |
| Max. mains-side overcurrent protection | 63 A gG |
| TN network form | yes |
| TN-C-S network form | yes |
| TN-S network form | yes |
| TT network form | yes |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 70 °C |
| Torque | 2 Nm |
| SPD to IEC 61643-1 | Class II+III |
| SPD to EN 61643-11 | Type 2+3 |
| Lightning protection zone LPZ | 1→3 |
| Maximum discharge current (8/20 μs) | 20 kA |
| Follow current quenching capacity (eff) [N-PE] | 0,1 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 63 A |
| Permitted temperature range, min. | -40 °C |
| Permitted temperature range, max. | 70 °C |
| Dimension | 255V |
| Humidity, max. | 95 % |
| Humidity, min. | 5 % |
Connectivity options
| Conductor cross-section, flexible (fine-wire), min. | 2,5 mm² |
|---|---|
| Conductor cross-section, flexible (fine-wire), max. | 10 mm² |
| Arrester surge current (8/20 µs) [total] | 20 kA |
| Conductor cross-section, flexible (fine-wire), min. | 13 AWG |
| Conductor cross-section, flexible (fine-wire), max. | 8 AWG |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 10 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 13 AWG |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 8 AWG |
Environmental Data
1,7031 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,7031 kg CO2e / 1 Piece |
|---|
