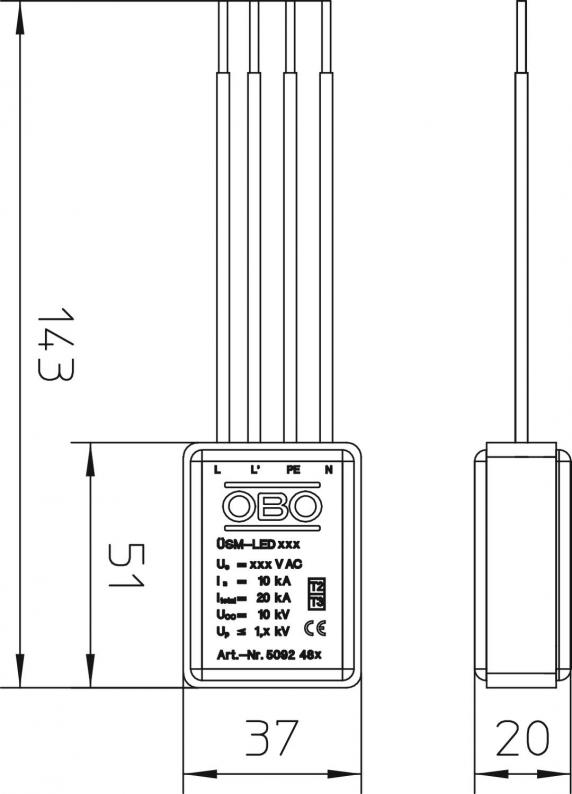

Surge protection for LED systems 440 V
Type ÜSM-LED 440
|Item no. 5092482
|EAN 4012196035496
Item no. / Type
5092482 / ÜSM-LED 440
Koruma sınıfı
IP20
Maximum continuous voltage AC
440 V
Pole version
1+N/PE
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
Surge protection module type 2+3 to DIN EN 61643-11 for 440 V power grids.
Appropriate for the protection of LED lighting.
• With visual function display
• Small size for the installation in the pole or in the LED lamp head
• 1+NPE protective circuit with a maximum discharge capacity of 20 kA
• Surge limitation under 1,800 V
• Available with or without cut-off function of the lamp in case of malfunction
Application: Universally deployable in all lighting systems
To protect electronic devices such as LED luminaires against surge voltages
Appropriate for the protection of LED lighting.
• With visual function display
• Small size for the installation in the pole or in the LED lamp head
• 1+NPE protective circuit with a maximum discharge capacity of 20 kA
• Surge limitation under 1,800 V
• Available with or without cut-off function of the lamp in case of malfunction
Application: Universally deployable in all lighting systems
To protect electronic devices such as LED luminaires against surge voltages
Technical data
Technical data
| Ağ formu | All |
|---|---|
| Cihazda sinyalizasyon | Visual |
| Koruma sınıfı | IP20 |
| En yüksek sürekli gerilim (L-N) | 440 V |
| En yüksek sürekli gerilim (N-PE) | 440 V |
| Anma deşarj akımı (8/20) (L-N) | 10 kA |
| Anma deşarj akımı (8/20) (N-PE) | 10 kA |
| Maximum discharge current (8/20 μs) [L-N] | 20 kA |
| Maximum discharge current (8/20 μs) [N-PE] | 20 kA |
| Remote signalling | no |
| Test class, type 2 | yes |
| Test class, type 3 | yes |
| Nominal voltage AC (50/60 Hz) | 440 V |
| Integrated back-up fuse | no |
| Koruma seviyesi [L-N] | ≤1,8 |
| Maximum continuous voltage AC | 440 V |
| Nominal discharge current (8/20 µs) | 10 kA |
| Pole version | 1+N/PE |
| Installation type | Miscellaneous |
| Max. mains-side overcurrent protection | 16 |
| Version for | 1+NPE |
| Short-circuit resistant | no |
| OBO_Nominal load current (input/output terminal) | 16 A |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| Bağlantı kablosu uzunluğu | 0,09 m |
| SPD to IEC 61643-1 | Class II+III |
| EN 61643-11 standardına göre talep sınıfı | Type 2+3 |
| Lightning protection zone LPZ | 1→3 |
| Maximum discharge current (8/20 μs) | 20 kA |
| Devreye girme süresi | <25 ns |
| Maximum back-up fuse | 16 A |
| Kullanılabilir sıcaklık aralığı min. | -40 °C |
| Kullanılabilir sıcaklık aralığı maks. | 80 °C |
| Boyut | 440V |
Connectivity options
| Arrester surge current (8/20 µs) [total] | 20 kA |
|---|
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0039 kg CO2e / 1 Piece |
|---|
