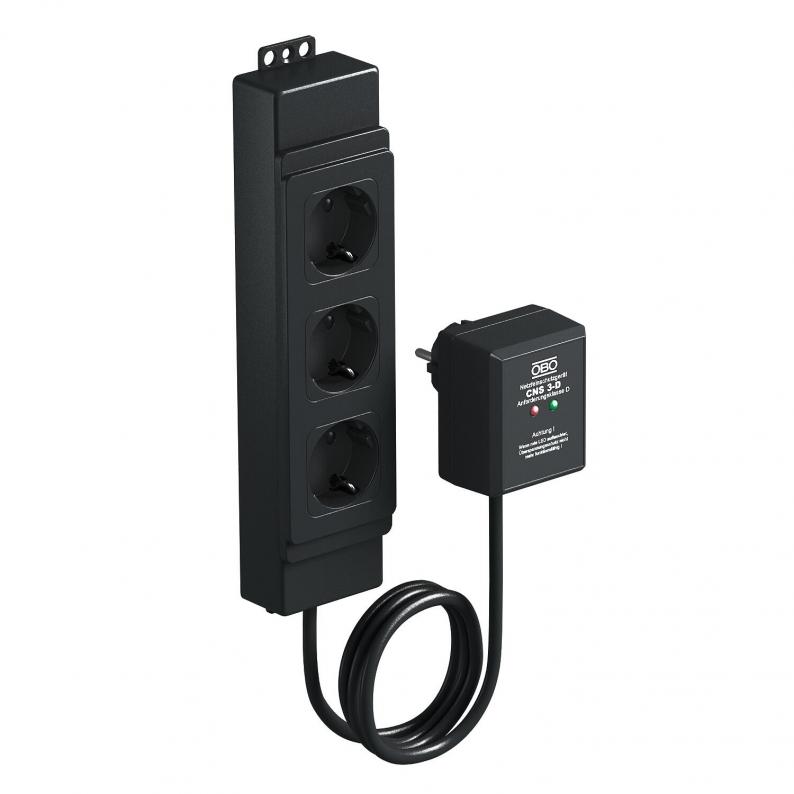

Surge protective device CNS 3 D
Type CNS 3-D-D
|Item no. 5092701
|EAN 4012195952817
Item no. / Type
5092701 / CNS 3-D-D
Country-specific version
D
Smallest selling unit: 1 piece
1piece
piece
Description
Surge protective device, type 3, to DIN EN 61643-11,
intended for use in protective contact sockets.
• With visual and audible signalling, function display
• 3-way socket
• Length of connection cable: 2 m
• Y circuit for high electrical safety
Application: For example, the protection of PCs, printers, copiers, fax machines, etc.
intended for use in protective contact sockets.
• With visual and audible signalling, function display
• 3-way socket
• Length of connection cable: 2 m
• Y circuit for high electrical safety
Application: For example, the protection of PCs, printers, copiers, fax machines, etc.
Technical data
Technical data
| Protection level (L-N / L/N-PE) | < 1000 / < 1500 V |
|---|---|
| Telekomünikasyon kontağı | no |
| Söndürmeli | no |
| Cihazda sinyalizasyon | Optical and acoustic |
| Koruma seviyesi (L-N) | < 1,0 kV |
| Koruma seviyesi (N-PE) | < 1,5 kV |
| Anma gerilimi | 230 V |
| Country-specific version | D |
| Bağlantı kablosu uzunluğu | 2 m |
| En yüksek sürekli gerilim | 255 V |
| SPD to IEC 61643-1 | Class III |
| EN 61643-11 standardına göre talep sınıfı | Type 3 |
| Lightning protection zone LPZ | 2→3 |
| Protection level | 1000/ 1500 kV |
| Anma deşarj akımı | 2,5 kA |
| Anma yük akımı | 16 A |
| Devreye girme süresi | <25 ns |
| Maximum back-up fuse | 16 A |
| Boyut | 230V |
| Colour | Black |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,876 kg CO2e / 1 Piece |
|---|
