T branch piece 60 FT
Type RT 615 FT
|Item no. 7117162
|EAN 4012196901692
Item no. / Type
7117162 / RT 615 FT
Width
150 mm
Surface
Hot-dip galvanised
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

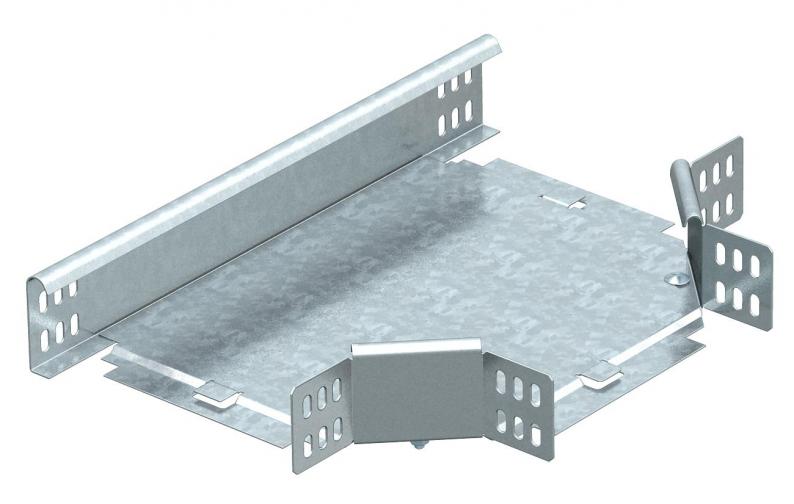

Horizontal T branch piece, for all cable tray types of 60 mm side height.
The fitting is shipped in an unmounted state. All the sides are designed for the same cable tray width.
Including appropriate fastening material.
Technical data

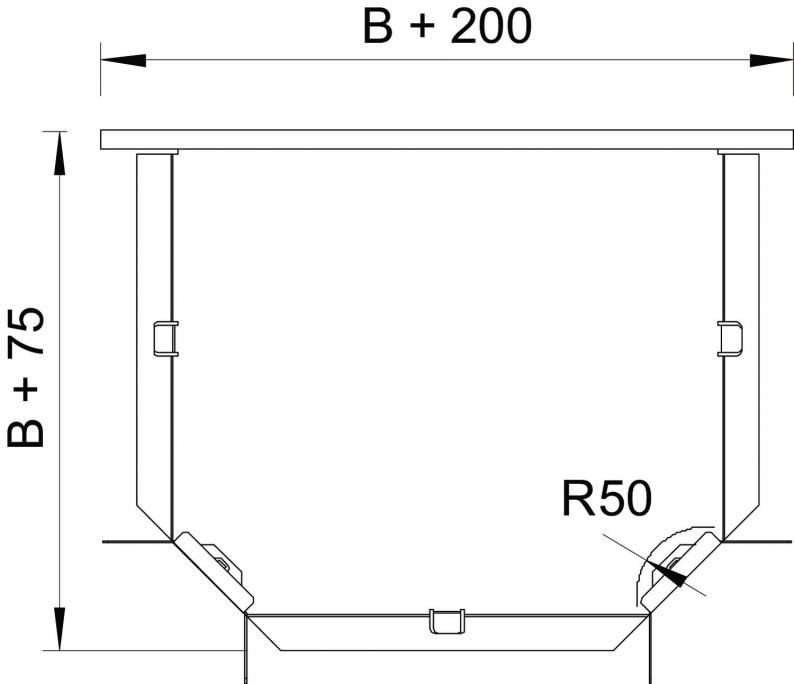

Dimensions
| Width | 150 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 150 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Supplied connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| NATO hole pattern | no |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Type | T piece horizontal |
| Yan parça kalınlığı | 1,25 mm |
| Boyut | 60x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
