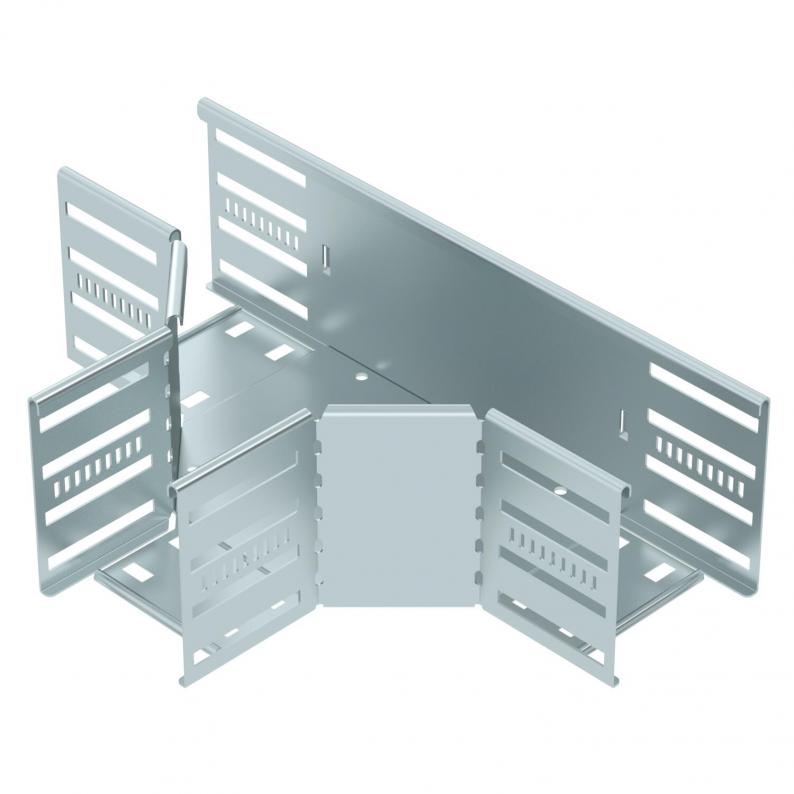

T piece 110 FS
Type RT 110 FS
|Item no. 6038300
|EAN 4012197347017
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
T piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Technical data

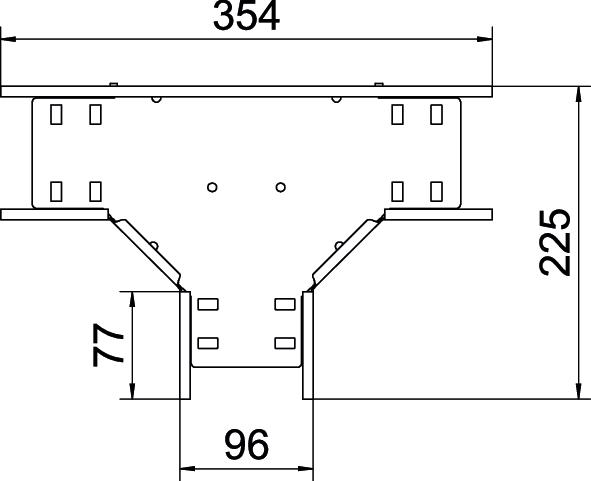

Dimensions
| Width | 100 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 0,8 mm |
| NATO hole pattern | no |
| Width of the branch | 100 mm |
| Type | T piece horizontal |
| Yan parça kalınlığı | 1,25 mm |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 120 °C |
| Boyut | 110x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 27 St. |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 3,7089 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Item no.
RT 110 FS
100
Strip galvanized
Steel
6038300
RT 115 FS
150
Strip galvanized
Steel
6038302
RT 120 FS
200
Strip galvanized
Steel
6038304
RT 130 FS
300
Strip galvanized
Steel
6038306
RT 140 FS
400
Strip galvanized
Steel
6038308
RT 150 FS
500
Strip galvanized
Steel
6038310
RT 160 FS
600
Strip galvanized
Steel
6038312
