T piece 85 FS
Type RT 840 FS
|Item no. 6038216
|EAN 4012197346928
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

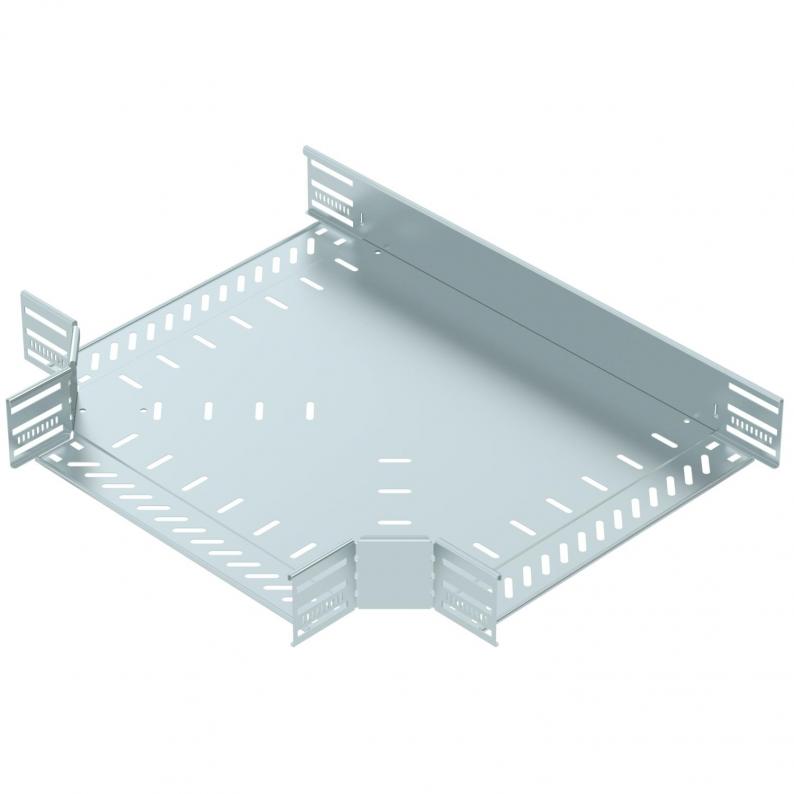

T piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 85 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Technical data

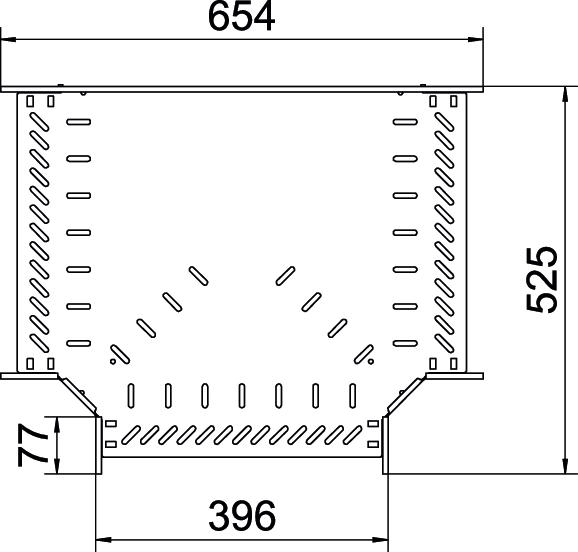

Dimensions
| Width | 400 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 400 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1 mm |
| NATO hole pattern | no |
| Width of the branch | 400 mm |
| Type | T piece horizontal |
| Yan parça kalınlığı | 1,25 mm |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 120 °C |
| Boyut | 85x400 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 27 St. |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 11,249 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Item no.
RT 810 FS
100
Strip galvanized
Steel
6038210
RT 820 FS
200
Strip galvanized
Steel
6038212
RT 830 FS
300
Strip galvanized
Steel
6038214
RT 840 FS
400
Strip galvanized
Steel
6038216
RT 850 FS
500
Strip galvanized
Steel
6038218
RT 860 FS
600
Strip galvanized
Steel
6038220
