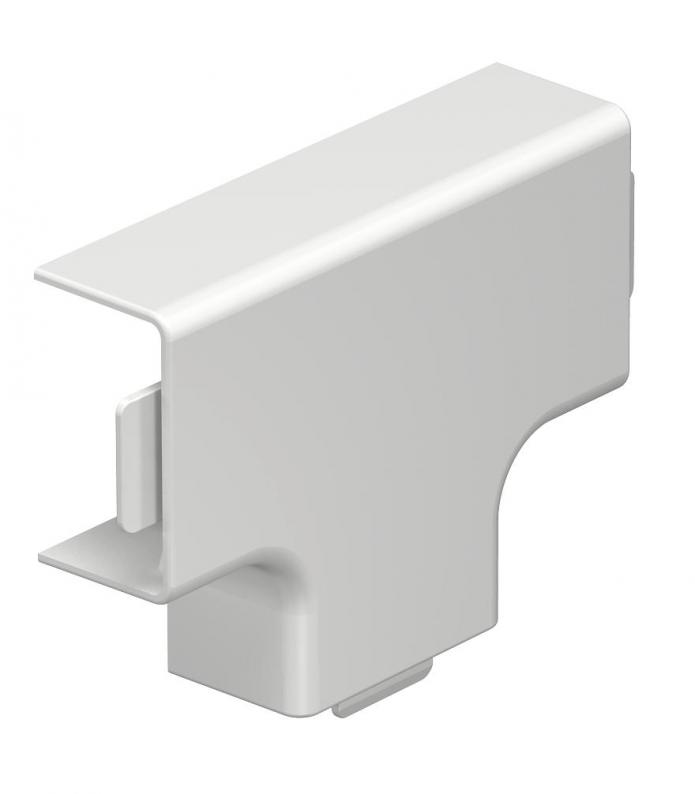

T piece cover, for trunking type WDK 15030
Type WDKH-T15030RW
|Item no. 6175690
|EAN 4012195934189
Item no. / Type
6175690 / WDKH-T15030RW

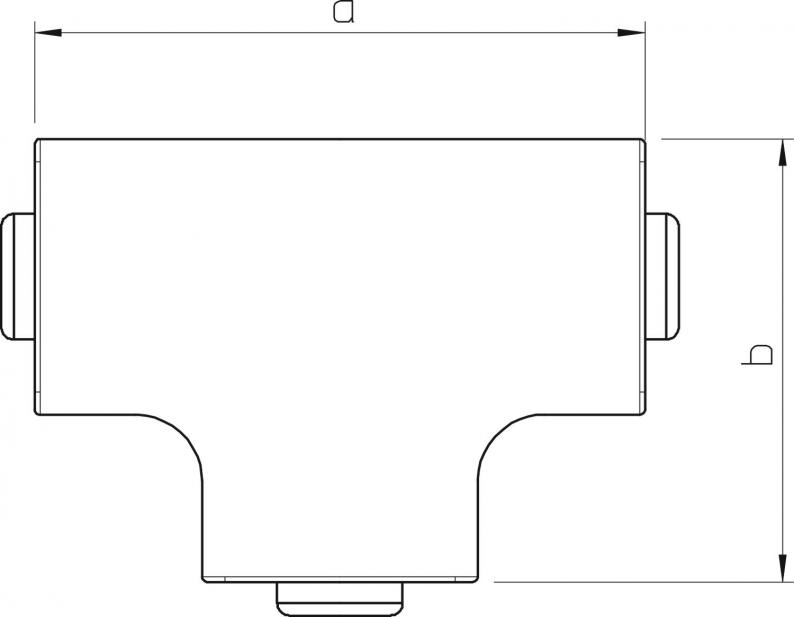

Dimension b
53 mm
Dimension a
73 mm
Colour
Pure white; RAL 9010
Smallest selling unit: 4 piece
4piece
piece
Description
T and intersection cover for changing the direction of the halogen-free WDK-H trunking.
Technical data
Dimensions
| Length | 73 mm |
|---|---|
| Width | 30 mm |
| Height | 18,5 mm |
| Dimension b | 53 mm |
| Dimension a | 73 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Halojen İçermez | yes |
| Koruyucu folyo | no |
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK07. |
| Version for | Hood fitting |
| Fastening type | Lockable |
| Kanal derinliği | 15 mm |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 90 °C |
| Boyut | 15x30mm |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0713 kg CO2e / 1 Piece |
|---|
