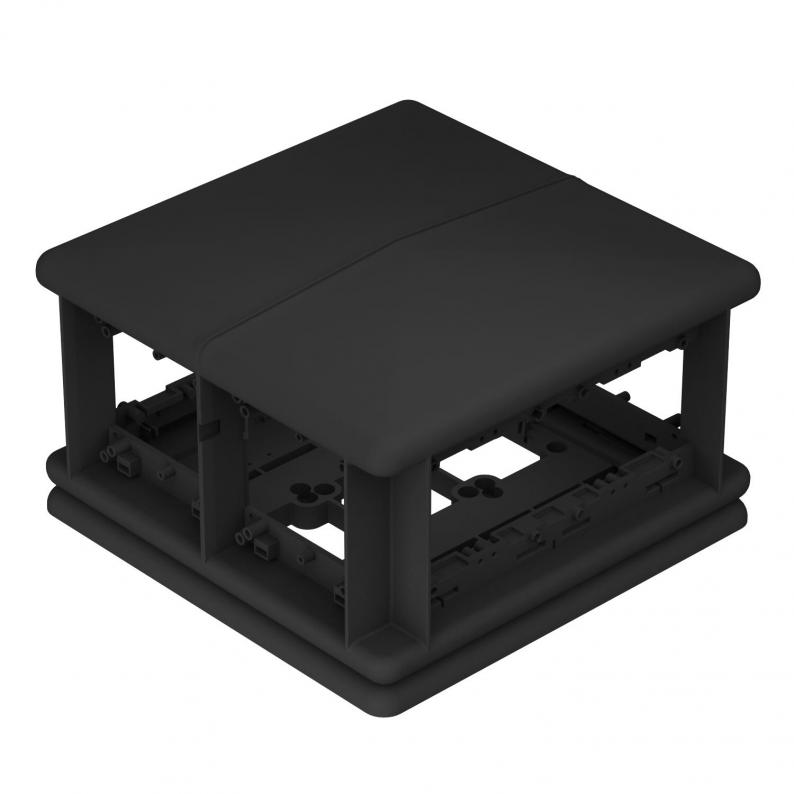

Telitank T8NL

Type T8NL 00C 9011
|
Item no. 7408494
|
EAN 4012195115984
Item no. / Type
Colour

Smallest selling unit: 1 piece

piece

Description

Raised-height installation unit for the installation of eight individual accessories with a support ring or support bracket on four sides. The current types (4 + 4) are separated using a partition. When multiple accessories are used, the connection capacity can be increased. Screw fixing groove for accessories: 60 mm, vertical.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

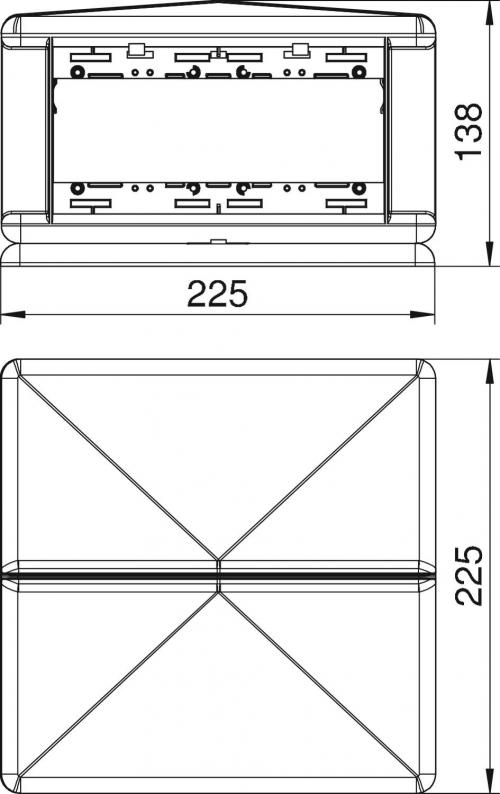

Dimensions

Length225 mm
Width225 mm
Height138 mm

Technical data

Number of installable devices8
Suitable for standard switch materialyes
Suitable for wet careyes
Number of installable devices, front side2
Number of installable devices, rear side2
Dimension225x225x125
MaterialPolyamide
ColourGraphite black; RAL 9011

Environmental Data

3,7903 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate3,7903 kg CO2e / 1 Piece

Accessories

System accessories
Type
T8NL P01 9011

Smallest selling unit: 1 piece

piece

Type
T8NL P2 9011

Smallest selling unit: 1 piece

piece

Type
T8NL P45 9011

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (1)
Certificates (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)

Variants

Colour
T8NL 00C 9011
Item no.
7408494
Number of installable devices
8
Colour
Graphite black; RAL 9011

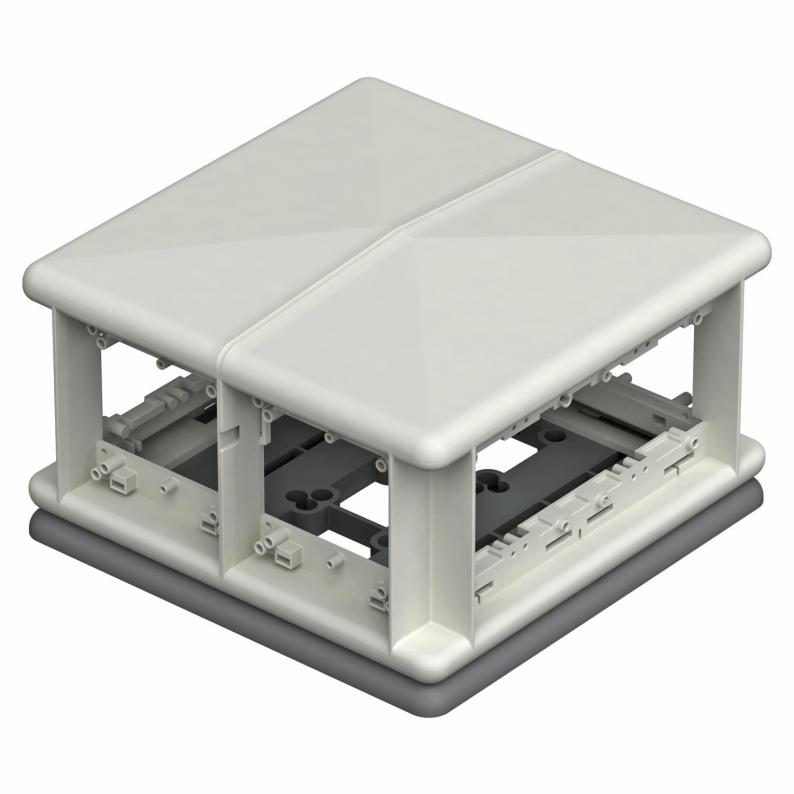

T8NL 00C 7035
Item no.
7408498
Number of installable devices
8
Colour
Light grey; RAL 7035
