Wall and support bracket MWA 12 FS

Wall and support bracket MWA 12 FS

Type MWA 12 11S FS
|
Item no. 6424716
|
EAN 4012196636853
Show all variants
Item no. / Type
Width
kN de F
Colour

Smallest selling unit: 1 piece

piece

Description

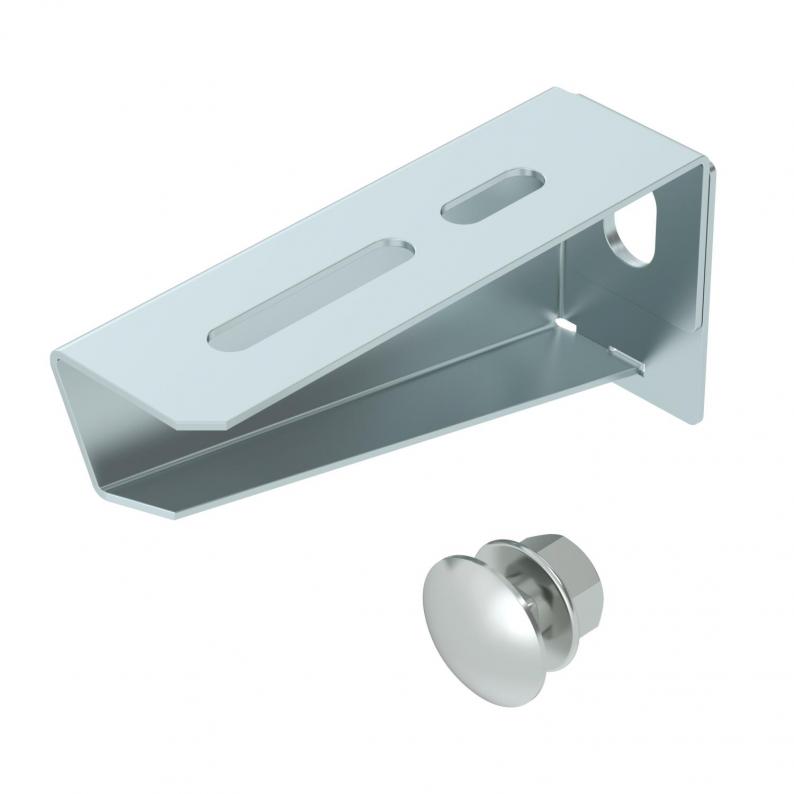

Light-duty wall and support bracket.

Including truss-head bolt M10 x 25 for fastening to

U supports.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length32,5 mm
Width110 mm
Height53 mm
Dimension A32,5 mm
Dimension B110 mm
Dimension H53 mm
Dimension W110 mm

Technical data

Maintain electrical functionsyes
Paslanmaz çelik, mordanlıno
Açı aralığı min.90 mm
Açı aralığı maks.90 mm
Hole diameter11 mm
Version forWall and support bracket
kN de F1,2 kN
BoyutB110mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc
MWA 12 tipi konsolun yük diyagrami

Müsaade edilen konsol yükü altında konsol ucundaki eğilme

İnsan taşıma yükü hariç olmak üzere kn olarak müsaade edilen konsol yükü

mm olarak konsol uzunlukları ile yük eğrisi

Environmental Data

Packaging made completely from recycled cardboard.yes
CO2 ayak izi (GWP) beşikten kapıya0,4573 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6424548

Quick connector
Type
FCM F

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (1)
3D data downloads (2)
Tender specifications (1)

Variants

Width
MWA 12 11S FS
Item no.
6424716
Width
110
kN de F
1,2
Colour
Çinko grisi
MWA 12 21S FS
Item no.
6424732
Width
210
kN de F
1,2
Colour
Çinko grisi
MWA 12 31S FS
Item no.
6424740
Width
310
kN de F
1,2
Colour
Çinko grisi
MWA 12 41S FS
Item no.
6424759
Width
410
kN de F
1,2
Colour
Çinko grisi
