Wide span cable tray WKSG 160 FT

Wide span cable tray WKSG 160 FT

Type WKSG 162 FT
|
Item no. 6098550
|
EAN 4012196810734
Show all variants
Item no. / Type
Length
Width
Maintain electrical functions
Plate thickness

Smallest selling unit: 6 m

m

Description

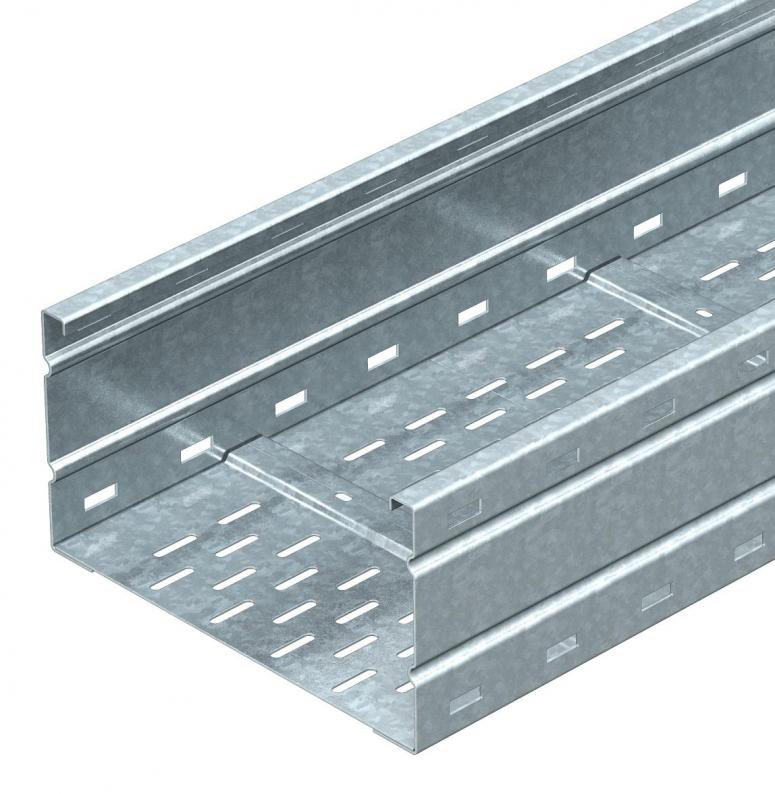

Wide span cable tray system, perforated, with a side height of 160 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Straight connectors of type WRV 160 should be ordered separately and in the appropriate quantity.

  • Manyetik ekranlama sönümlemesi
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Uzun gergi kablo kanalı, kenar yüksekliği 160 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length6000 mm
Width200 mm
Height160 mm
Dimension L6000 mm
Dimension B200 mm

Technical data

Maintain electrical functionsno
Yan delikyes
Connector versionWithout connectors
Wide-span versionyes
Usable cross-section302 cm²
Paslanmaz çelik, mordanlıno
Plate thickness2 mm
Tabanda montaj deliğiyes
Usable cross-section30200 mm²
Ölçü200x6000
Boyut160x200x6000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Usable length6000 mm
Type of connector, cable support systemScrewed

Loads

Destek aralığı 3,0m2,9 kN/m
Destek aralığı 3,5m2,59 kN/m
Destek aralığı 4,0m2,3 kN/m
Destek aralığı 4,5m2,04 kN/m
Destek aralığı 5,0m1,8 kN/m
Destek aralığı 6,0m1,4 kN/m
Destek aralığı 7,0m1 kN/m
Destek aralığı 8,0m0,7 kN/m
WKSG 160 típusú nagyfesztávú kábeltálca terhelési diagramja

Permitted cable tray/ladder load in kN/m without man load

Destekler arası mesafe, m

Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak

Test yönteminde yük şeması

mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi

Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya19,278 kg CO2e / 1 Meter

Accessories

System accessories
Type
WDRL 1116 20 DD

Smallest selling unit: 3 m

m

Item no. 6227716

Straight connector FT
Type
WRVL 160 FT

Smallest selling unit: 2 piece

piece

Type
WRWV 160 I FT

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Maintain electrical functions
WKSG 162 FT
Item no.
6098550
Length
6000
Width
200
Maintain electrical functions
hayır
Plate thickness
2
WKSG 163 FT
Item no.
6098554
Length
6000
Width
300
Maintain electrical functions
no
Plate thickness
2
WKSG 164 FT
Item no.
6098558
Length
6000
Width
400
Maintain electrical functions
hayır
Plate thickness
2
WKSG 165 FT
Item no.
6098562
Length
6000
Width
500
Maintain electrical functions
no
Plate thickness
2
WKSG 166 FT
Item no.
6098566
Length
6000
Width
600
Maintain electrical functions
hayır
Plate thickness
2
