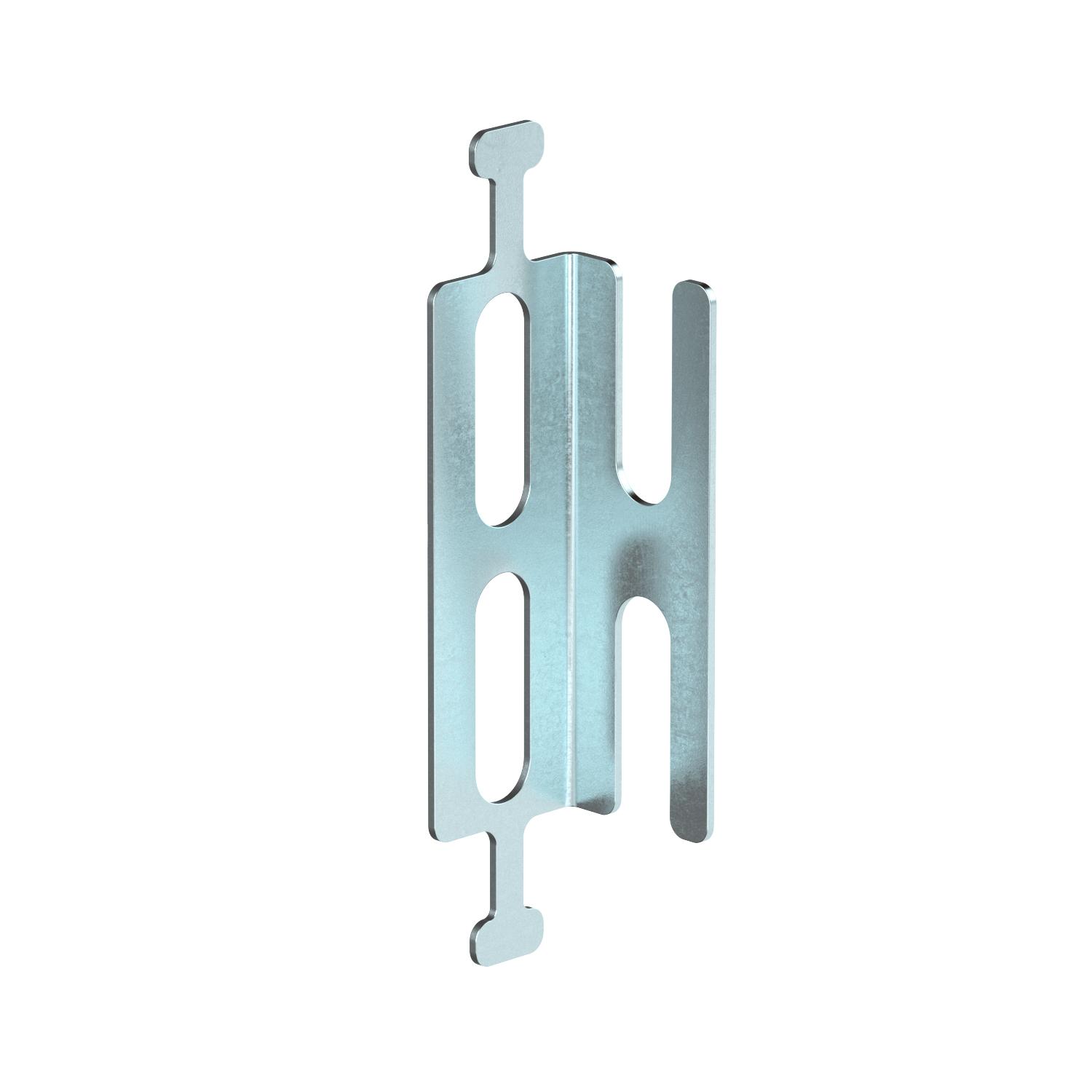

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm
Item no. 7215288 | EAN 4012196839582
- Product description
-
Product description
Universal cable bracket for the vertical installation of cables in PYROLINE® Con fire protection ducts made of fibreglass-reinforced, lightweight concrete, as well as PYROLINE® Rapid made of sheet steel with an internal coating. The holders are plugged over the head of the loosened fastening screw and then screwed tight to it. The cables can be fastened using cable ties on the lugs or in the slots of the holder. This safely supports the cable weight. Plan at least two cable brackets per metre during installation.
- Technical data
-
Technical data
Dimension 20x20 Material Steel Surface Strip galvanized Type of accessory Miscellaneous Dimensions

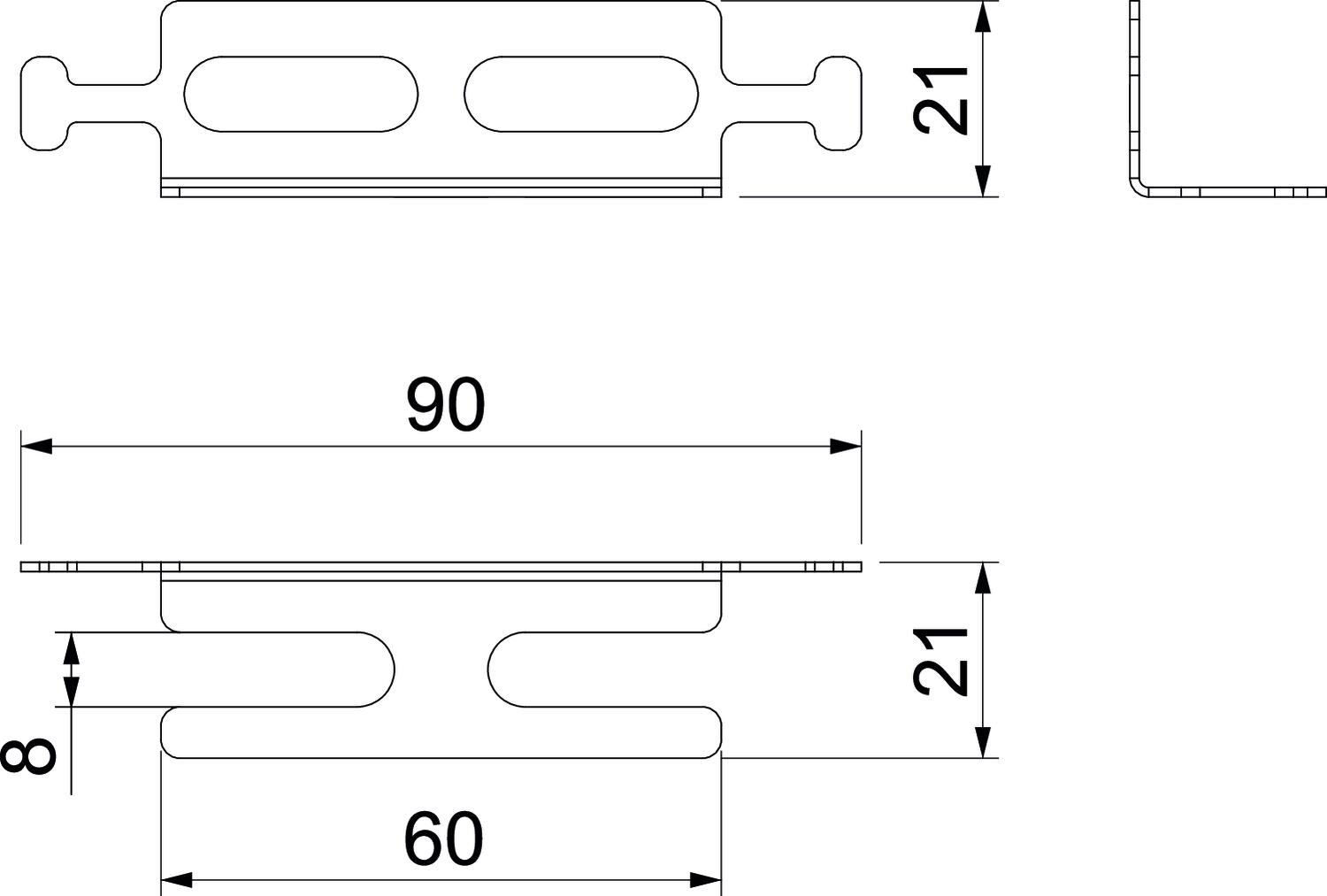

Dimension B 21 mm Dimension b 8 mm Dimension H 21 mm Dimension l 60 mm Dimension L 90 mm Height 21 mm Length 90 mm Width 60 mm - All types
