Note: This article is discontinued.

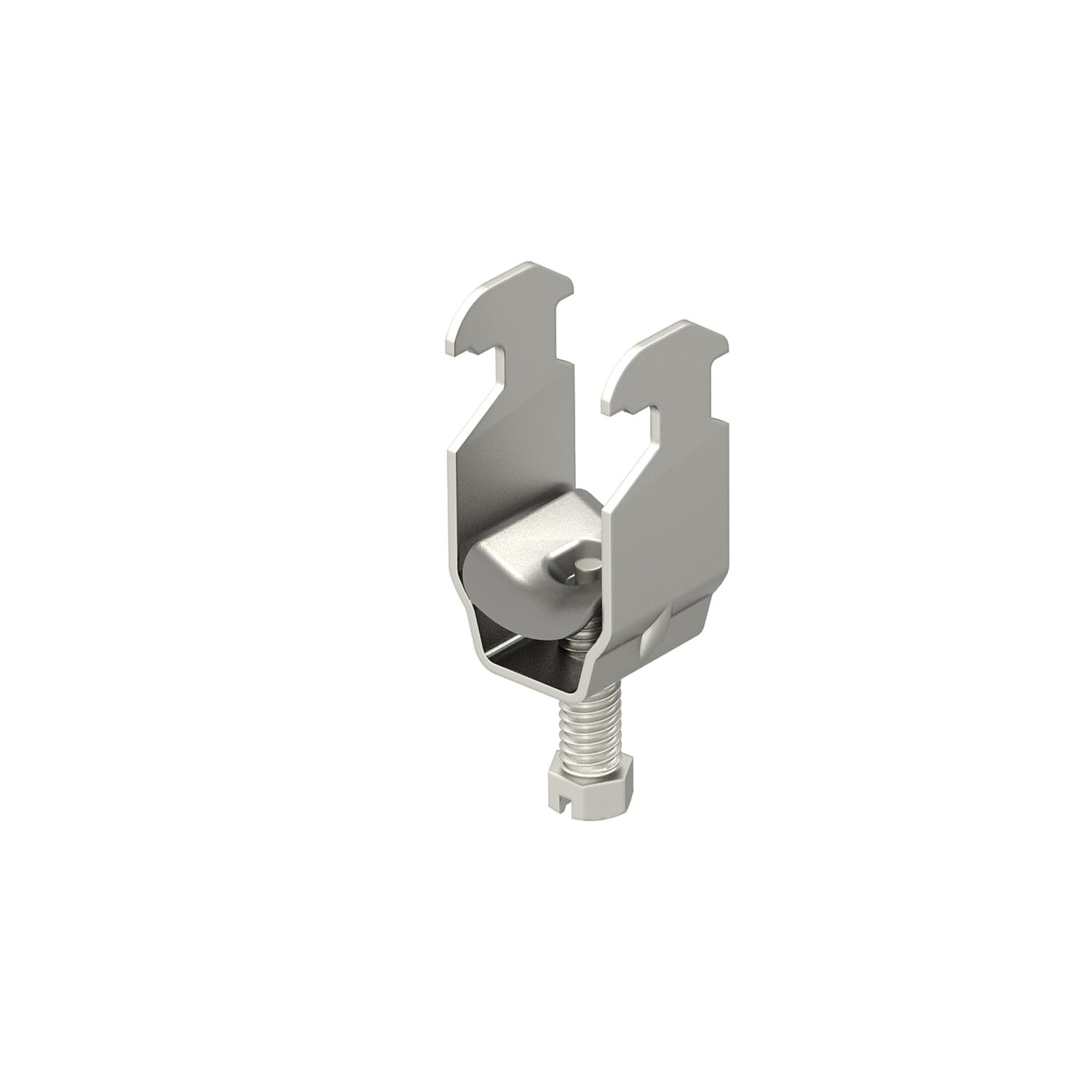

Clamp clip, single, A2 metal pressure trough

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	5 Nm

Product description

Product description

Suitable for all C profile rails with slot width 16–17 mm.
Clip, bolt and pressure trough all made of rust-proof stainless steel.

Technical data

Clamping range D, max.	40 mm
Clamping range D, min.	34 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,4424 kg CO₂e / 1 Piece

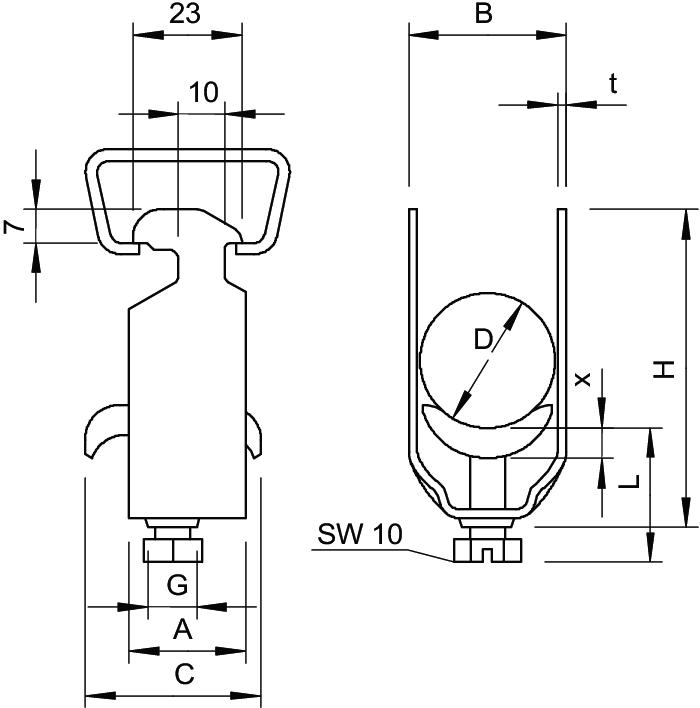

Dimension	34-40mm
Dimension A	23 mm
Dimension B	45 mm
Dimension C	35 mm
Dimension G (mm)	M8
Dimension H	72 mm
Dimension L	44 mm
Dimension t	2 mm
Dimension x	5 mm
for 1 cable H	72 mm
for 1 cable L	44
For pipe diameter, max.	40 mm
For pipe diameter, min.	40 mm

for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	no
Impact-resistant	no
Material	Stainless steel 1.4301
Material addition	Rustproof steel
Material of trough	Rustproof steel
Material quality of trough	Stainless steel 304 (1.4301)
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Bright, treated
Surface addition	Untreated
With counter-trough	no
With metal trough	yes
With plastic trough	no
