Note: This article is discontinued.
Clamp clip, single, FT plastic pressure trough
Item no. 1180681 | EAN 4012195076032
- Product description
-
Product descriptionSuitable for angular steel of 40 mm shaft length.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
-
- Technical data
-
Technical data

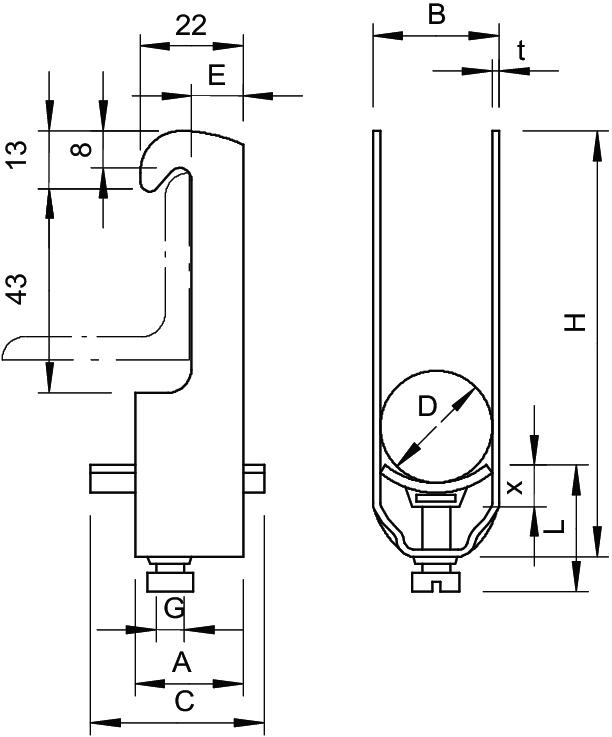

Clamping range D, max. 70 mm Clamping range D, min. 64 mm CO2 Footprint (GWP) Cradle-to-Gate 0,4439 kg CO₂e / 1 Piece Dimension 64-70mm Dimension A 25 mm Dimension B 76 mm Dimension C 40 mm Dimension E 13,5 mm Dimension G (mm) M8 Dimension H 136 mm Dimension L 32,5 mm Dimension t 2,5 mm Dimension x 6,5 mm for 1 cable H 136 mm for 1 cable L 32,5 Halogen-free yes Impact-resistant no Material Steel Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 5 Nm Mounting type Angle profile Number of cables/pipes 1 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With metal trough no With plastic trough yes - All types
