Note: This article is discontinued.

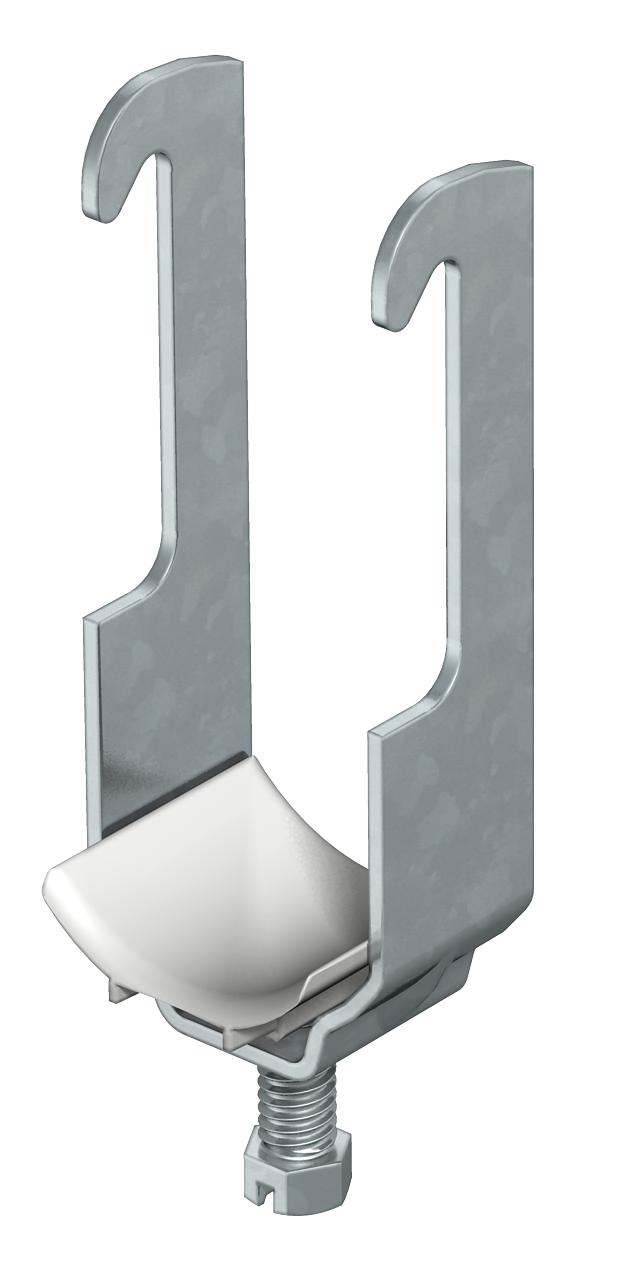

Clamp clip, single, FT plastic pressure trough
Item no. 1180126 | EAN 4012195075431
- Product description
-
Product descriptionSuitable for angular steel of 40 mm shaft length.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
-
- Technical data
-
Technical data
Clamping range D, max. 12 mm Clamping range D, min. 8 mm CO2 Footprint (GWP) Cradle-to-Gate 0,1083 kg CO₂e / 1 Piece Dimension 8-12mm Dimension A 23 mm Dimension B 16 mm Dimension C 34 mm Dimension E 11 mm Dimension G (mm) M6 Dimension H 74 mm Dimension L 27 mm Dimension t 1,5 mm Dimension x 5 mm for 1 cable H 74 mm for 1 cable L 27 for 2 cable H 88 mm for 2 cable L 34 mm for 3 cable H 102 mm for 3 cable L 34 mm Halogen-free yes Impact-resistant no Material Steel Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 3 Nm Mounting type Angle profile Number of cables/pipes 1 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With metal trough no With plastic trough yes - All types
