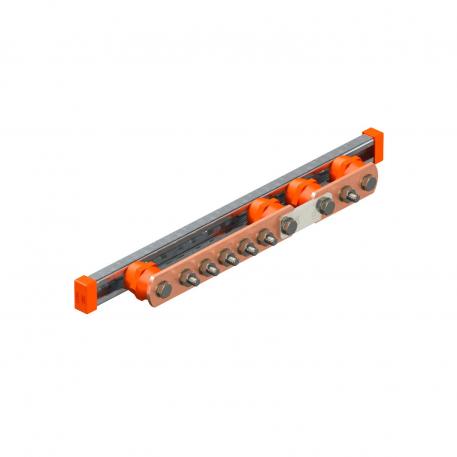

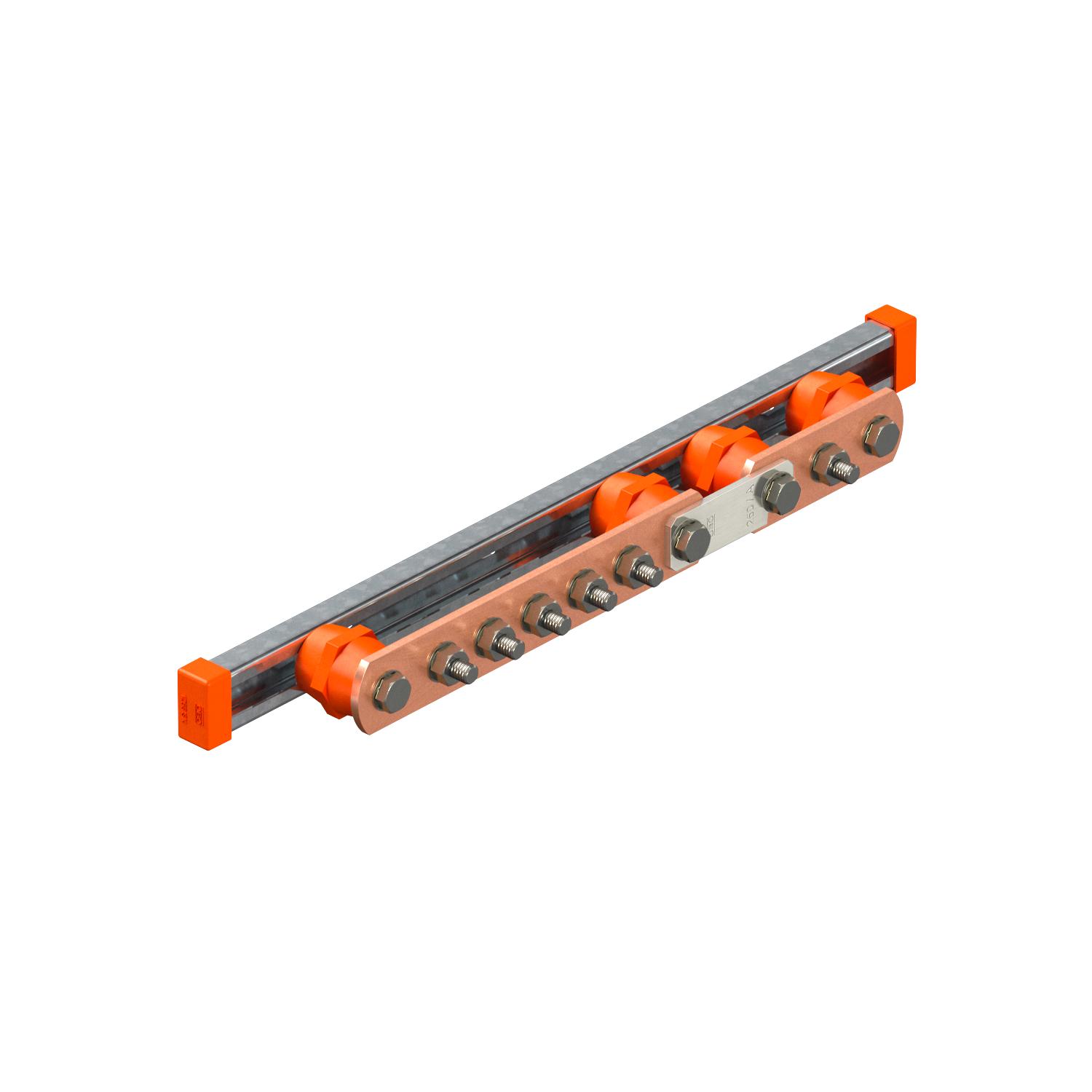

Equipotential busbar for flexible wall mounting with separation point
Type 1802 DC 5+1 CU
|Item no. 5015870
|EAN 4012196681921
Item no. / Type
Length
Width
Height
Number of connections
Smallest selling unit: 1 piece
1piece
piece
Description
Main equipotential busbar for equipotential bonding to VDE 0100 Part 410/-540 and
lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• With separation point (Disconnect – DC)
• For flexible wall mounting
• Complete with profile rail (FT) and screws
• Quick, simple mounting of the connection cable using
lock bolts M10
• With lock washer (DIN 137) for bolt locking against loosening
lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• With separation point (Disconnect – DC)
• For flexible wall mounting
• Complete with profile rail (FT) and screws
• Quick, simple mounting of the connection cable using
lock bolts M10
• With lock washer (DIN 137) for bolt locking against loosening
Technical data

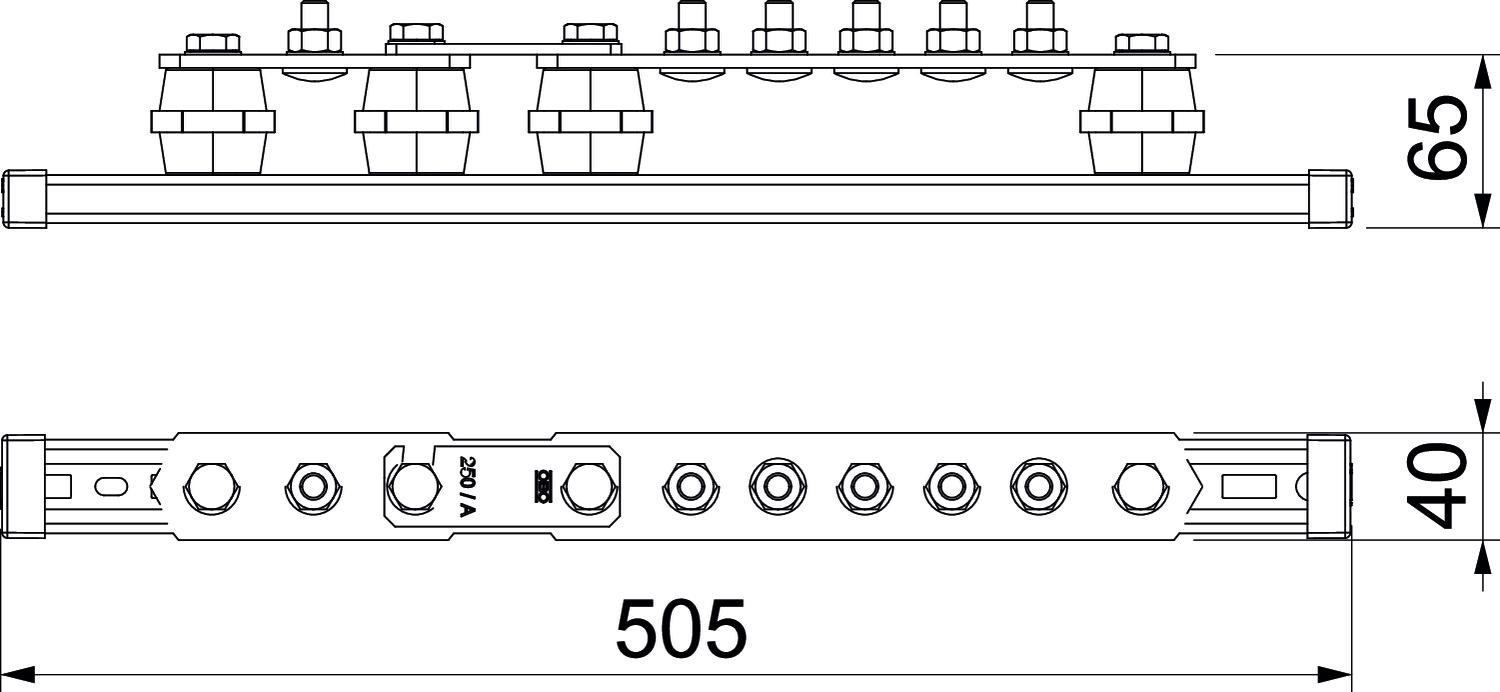

Dimensions
| Length | 505 mm |
|---|---|
| Width | 40 mm |
| Height | 85 mm |
Technical data
| Number of connections | 6 |
|---|---|
| Insulator | yes |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 0 |
| Quantity of flat conductor connections up to 30 mm | 0 |
| Quantity of flat conductor connections up to 40 mm | 0 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 0 |
| Quantity of cable connections up to 25 mm², rigid | 0 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Copper |
| Material of the terminal | Copper |
| Version for | Only terminal |
| Lightning current carrying capacity | H/100 kA |
| Type | Fixed structure |
| Dimension | 5+1 x M10 |
| Material | Copper |
Environmental Data
5,6565 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,6565 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 5015890
Crossbar for equipotential busbarType
1802 KL
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
