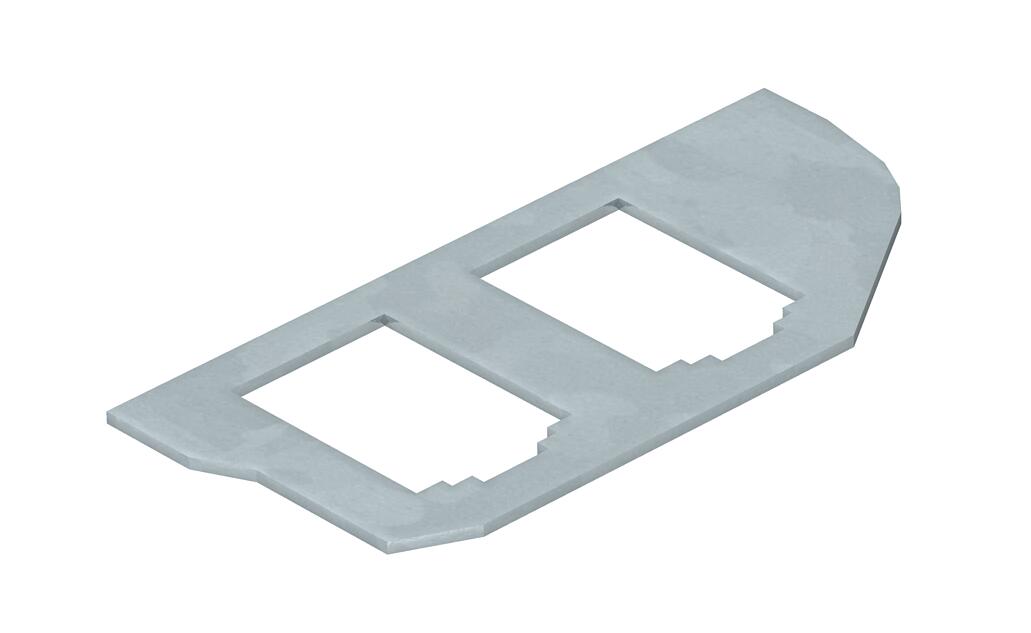

Mounting plate for the installation of data sockets in GESRM2, 2 x type B
Item no. 7407622 | EAN 4012195372523
- Product description
-
Product descriptionMounting plate to accept two connection modules for data connection modules of the following types BTR: E-DAT; Dätwyler: MS and MS-N; Kerpen: VarioKeystone.

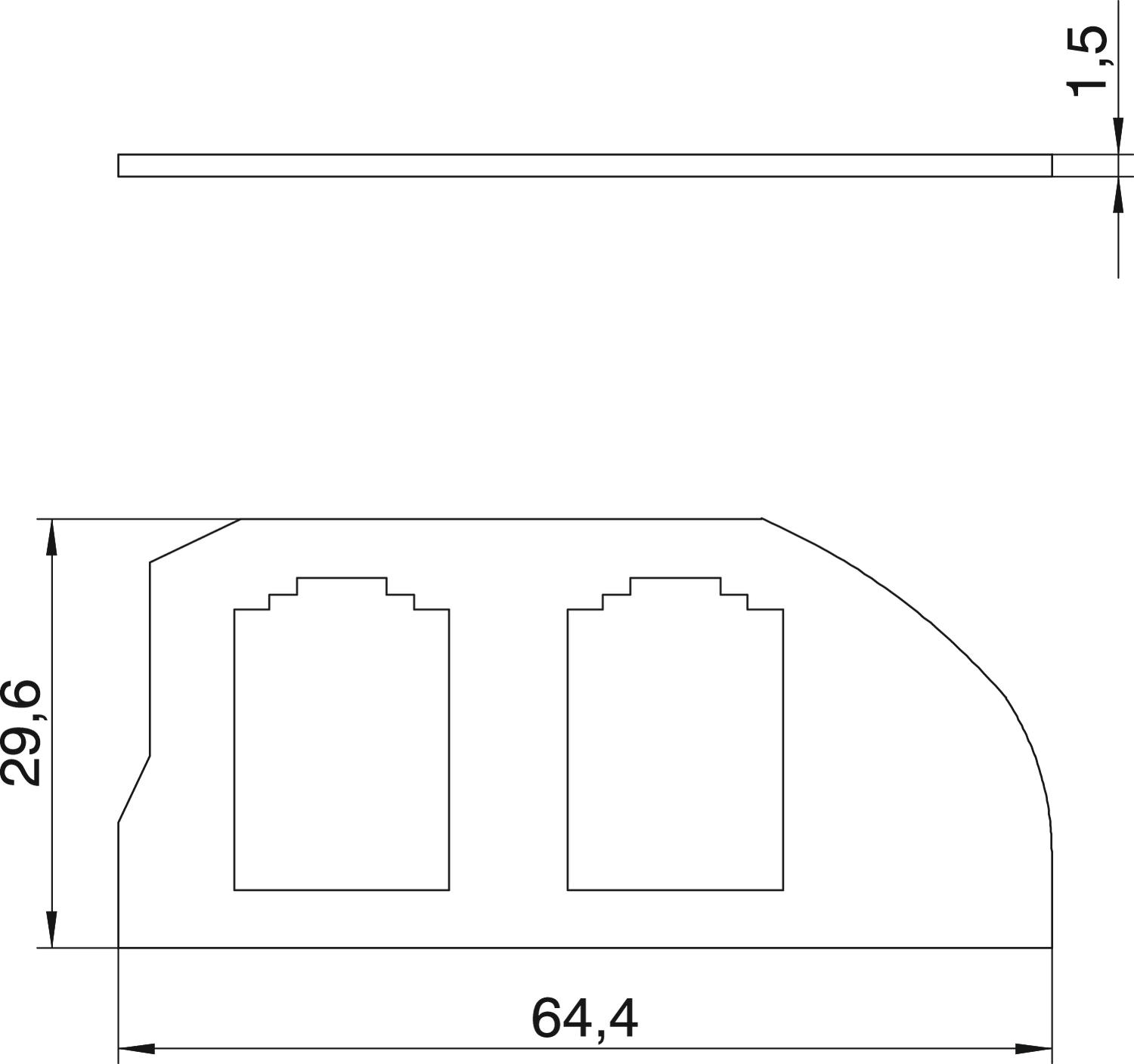

Dimensions of a mounting opening in mm: 19.35/21.55 x 14.85.
-
- Technical data
-
Technical data
Blanking lid no CO2 Footprint (GWP) Cradle-to-Gate 0,456 kg CO2e / 1 Piece Decouplable no Depth 1,5 mm Device type Miscellaneous Dimension 19,35x14,85 External diameter 130 mm Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Height 1,5 mm Installation opening for on-floor tank no Installation technology Miscellaneous Labelling panel no Length 64,4 mm Lowerable to be flush-floor no Material Stainless steel 1.4301 Number of installable devices 2 Number of single openings 2 Seal installation option no Strain relief option yes Suitable for cavity floor installation yes suitable for data connection module Type B Suitable for labelling panel no Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Suitable for wet care yes Version for Support shape Width 29,6 mm With floor covering recess no - All types
- Downloads
-
Data sheet MPRM2 2B / 7407622 , 0.15MB , pdfEU declaration of conformity MPRM2 2B / 7407622 , 0.11MB , pdfREACH Declaration of conformity MPRM2 2B / 7407622 , 0.12MB , pdfRoHS Declaration of conformity MPRM2 2B / 7407622 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
