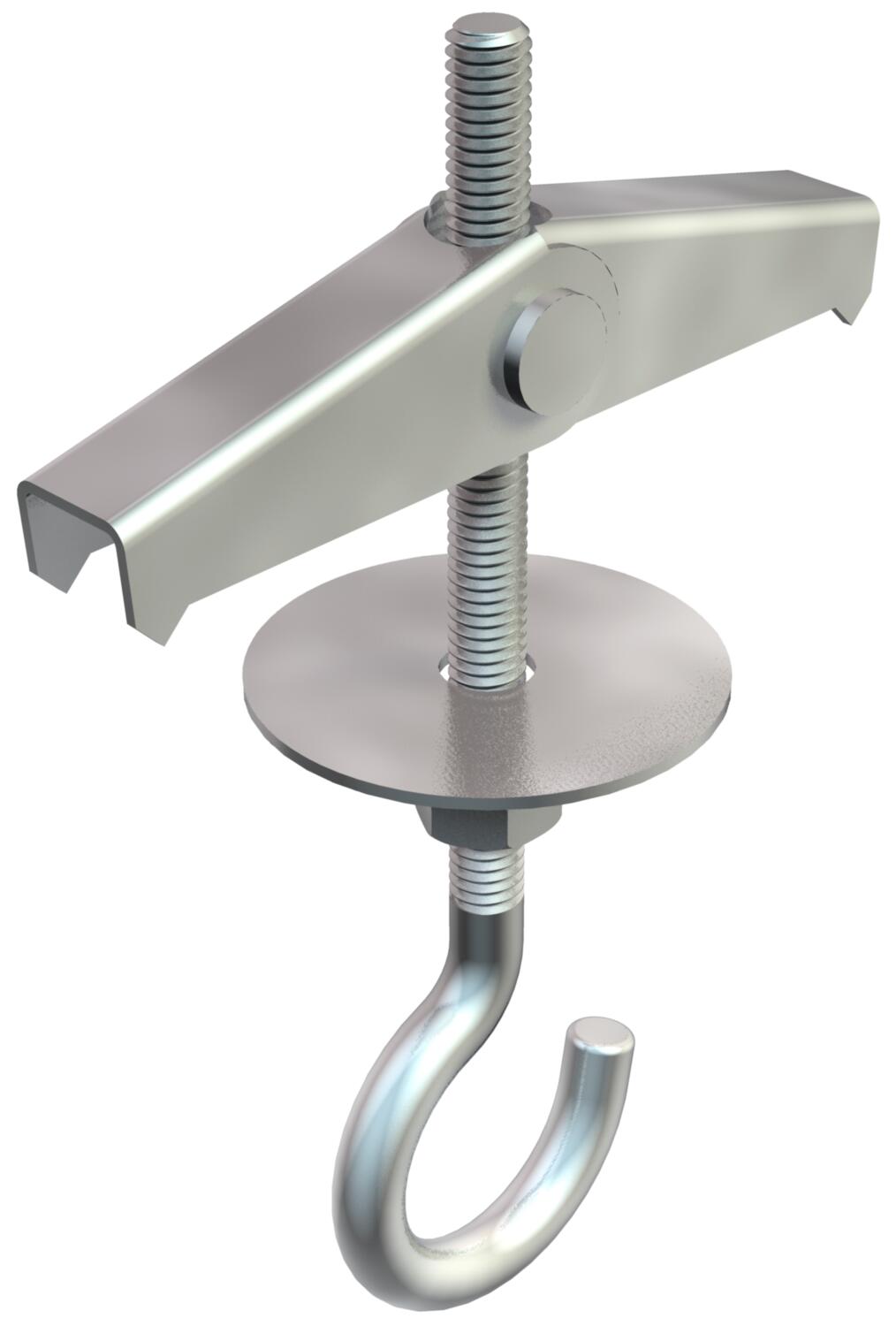

Sprung hinged anchor
Item no. 3481778 | EAN 4012195432975
- Product description
-
Product description
With ceiling hook, washer and hexagonal nut; brass axle.
-
- Technical data
-
Technical data

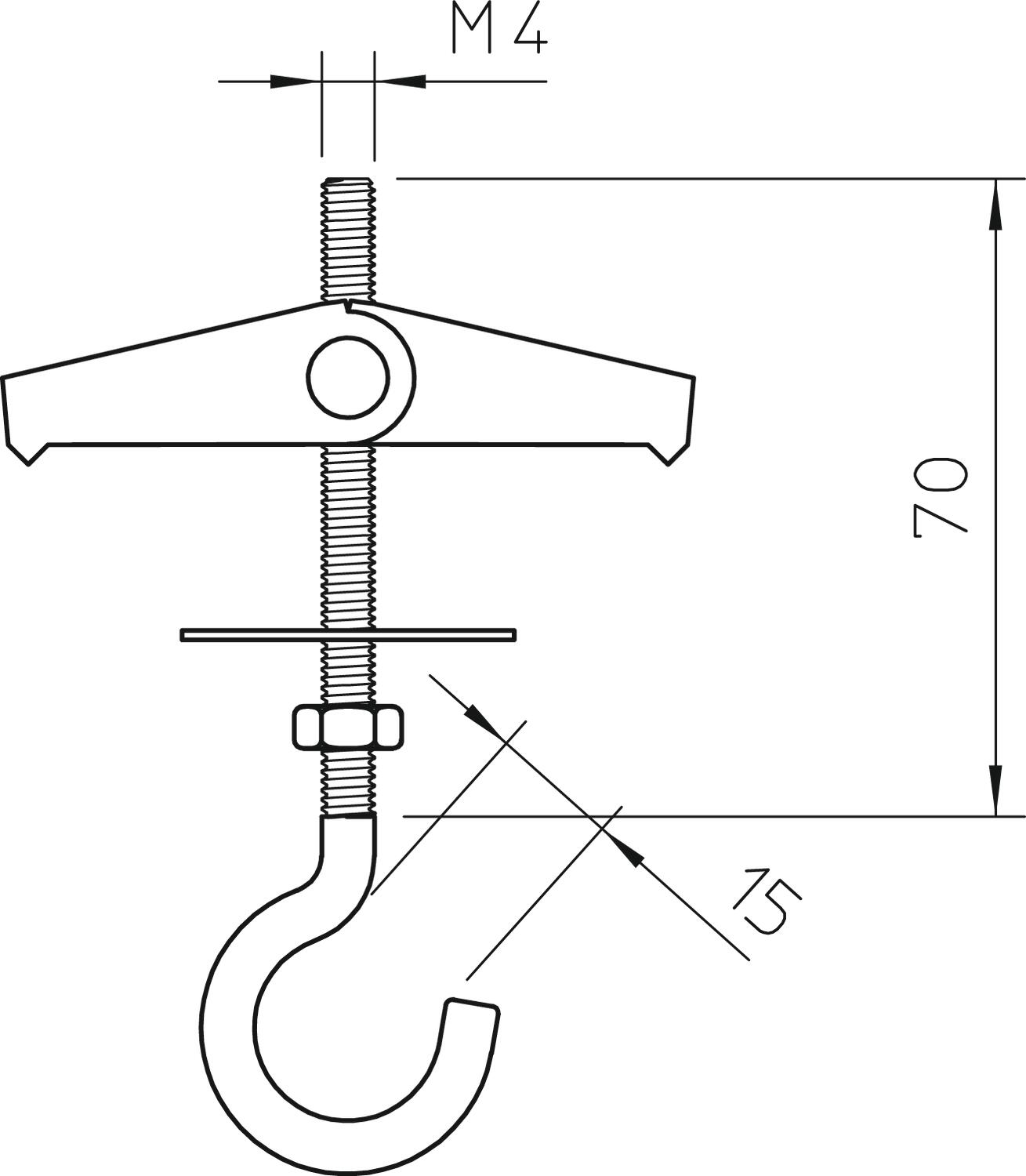

Breaking load 0,4 kN Dimension M4x70mm Drill hole 14 mm Drill hole diameter, min. 14 mm Material Steel Minimum cavity depth 35 mm Surface Electrogalvanized Thread M4 Thread type Metric Version for With ceiling hook With washer yes Dimensions
Length 70 mm - All types
- Downloads
-
Data sheet 452 M4x70 G / 3481778 , 0.28MB , pdfCatalogue Fastening materials , 19.78MB , pdf
