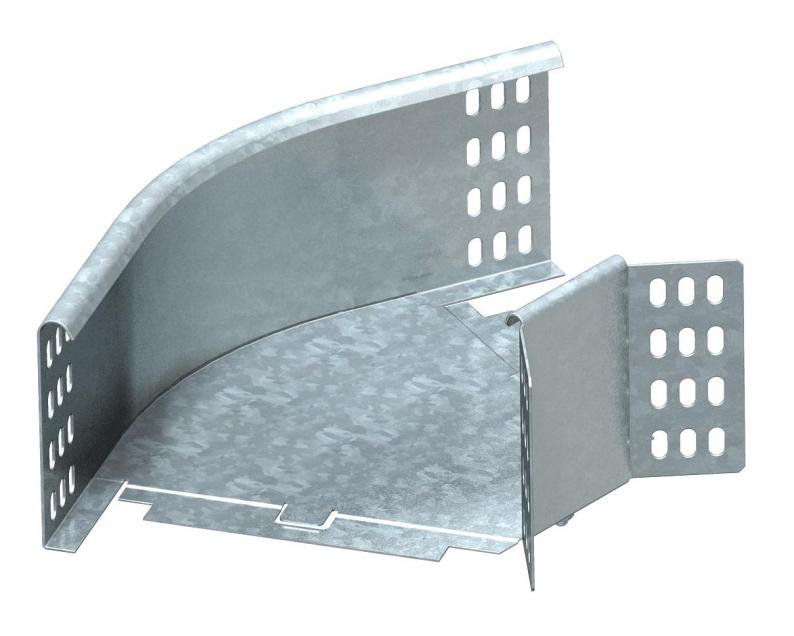

45° bend 110 FT

Type RB 45 110 FT

Item no. 7068115

EAN 4012196991280

Data sheet (PDF)

RoHS Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

7068115 / RB 45 110 FT

Width

100 mm

Surface

Hot-dip galvanised

Material

Steel

Colour

zinc

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

45° bend, horizontal, for all cable tray types of 110 mm side height.

The fitting is shipped in an unmounted state. The WKV 110 angle connector is designed for 90° bends and can be adjusted to 45° on site.

Including appropriate fastening material.

Technical data

Dimensions

Width	100 mm
Height	110 mm
Dimension B	100 mm
Dimension R	50 mm

Technical data

Maintain electrical functions	no
Yan delik	no
Connector version	Supplied connectors
Wide-span version	no
Paslanmaz çelik, mordanlı	no
Plate thickness	1 mm
Tabanda montaj deliği	no
NATO hole pattern	no
Dönüş elemanı (L tipi bağlantı)	45°
Change of direction	Horizontal
Boyut	110x100
Surface	Hot-dip galvanised
Material	Steel
Colour	zinc
Type of connector, cable support system	Screwed

Accessories

Mounting accessories

Item no. 6406122

Truss-head bolt with flange nut F

Type

FRSB 6x12 F

Smallest selling unit: 100 piece

piece
