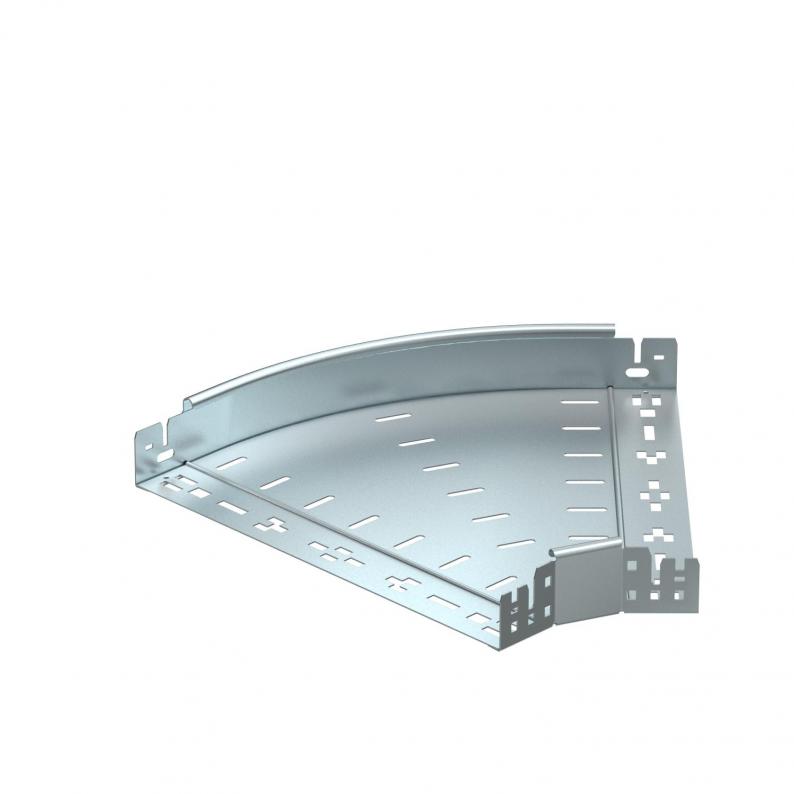

45° Magic bend 60 FS
Type RBM 45 640 FS
|Item no. 6041048
|EAN 4012195881575
Item no. / Type
6041048 / RBM 45 640 FS
Width
400 mm
Surface
Strip galvanized
Material
Steel
Colour
zinc
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
45° bend with quick connector system. For all cable tray types of 60 mm side height.
Technical data
Dimensions
| Width | 400 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 400 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Yan delik | no |
| Connector version | Integrated connector |
| Wide-span version | no |
| Plate thickness | 1,25 mm |
| Tabanda montaj deliği | no |
| NATO hole pattern | no |
| Dönüş elemanı (L tipi bağlantı) | 45° |
| Change of direction | Horizontal |
| Boyut | 60x400 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Fire protection | Use of fire protection ceilings |
| Type of connector, cable support system | Click fastening |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 5,6115 kg CO2e / 1 Piece |
|---|
